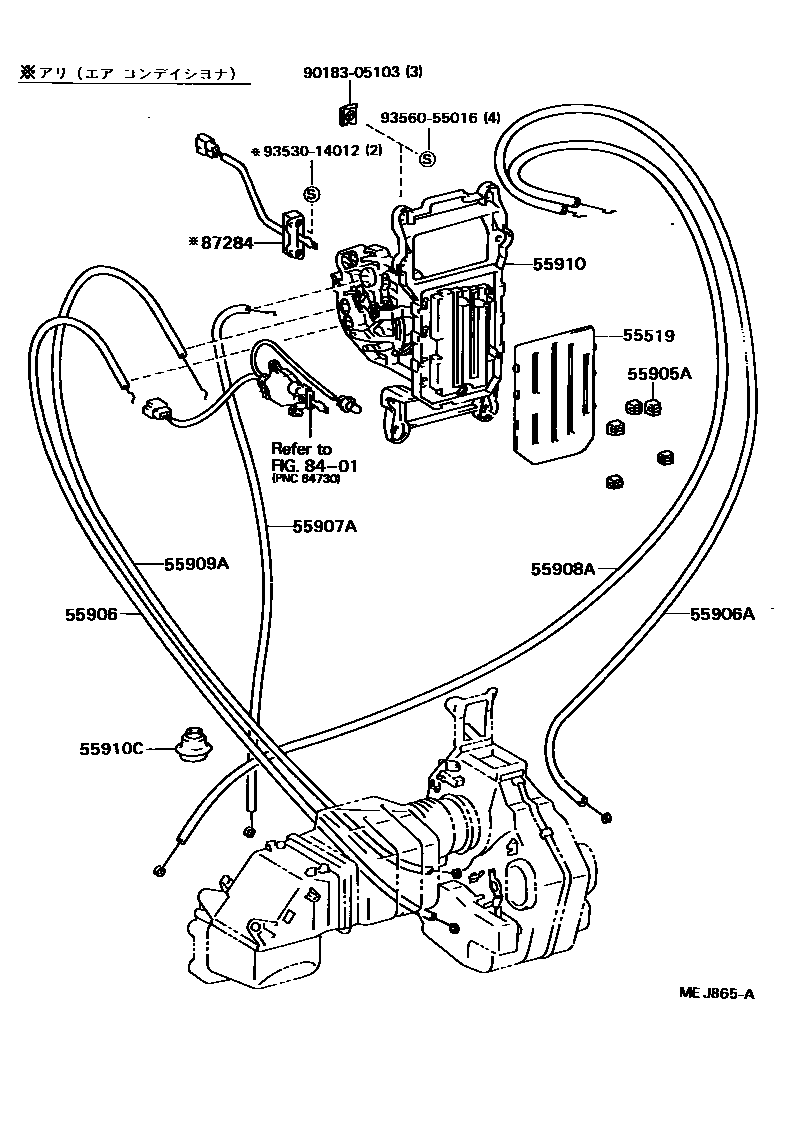

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55519PLATE, HEATER CONTROL NAME

main55519-95405iWU75,9#,YU6#,70198708-198808

55905AKNOB, HEATER CONTROL

main55905-10110iWU75,9#,YU6#,70198708-198808

CABLE LEVER

main55905-95707iWU75,9#,YU6#,70198708-198808

BLOWER SW. OR VARIABL RESISTOR

55906CABLE SUB-ASSY, HEATER CONTROL

main55905-95401iYU6#,70198708-198808

main55905-95402iWU75,9#198708-198808

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-95404iYU6#,70198708-198808

main55906-95405iWU75,9#198708-198808

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-95404iYU6#,70198708-198808

main55907-95405iWU75,9#198708-198808

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95402iYU6#,70198708-198808

main55908-95403iWU75,9#198708-198808

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95404iYU6#,70198708-198808

main55909-95405iWU75,9#198708-198808

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95407iWU75,9#,YU6#,70198708-198808

sub55910-36070

sub55905-26010

sub55905-36010

sub55905-36020

sub55905-37020

sub55906-26020

sub55906-36030

sub55906-36040

sub55906-37010

sub55907-26020

sub55907-36010

sub55907-36020

sub55907-37010

main55910-95408iWU75,9#198708-198808

sub55910-36080

sub55905-36010

sub55905-36020

sub55906-36030

sub55906-36040

sub55907-36010

sub55907-36020

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-15001iWU75,9#198708-198808

main90480-24215iYU6#,70198708-198808

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iWU75,9#198708-198808

9018305103

main90183-05103

9353014012

main93530-14012

9356055016

main93560-55016

14 parts on this diagram · 3 diagrams in section
