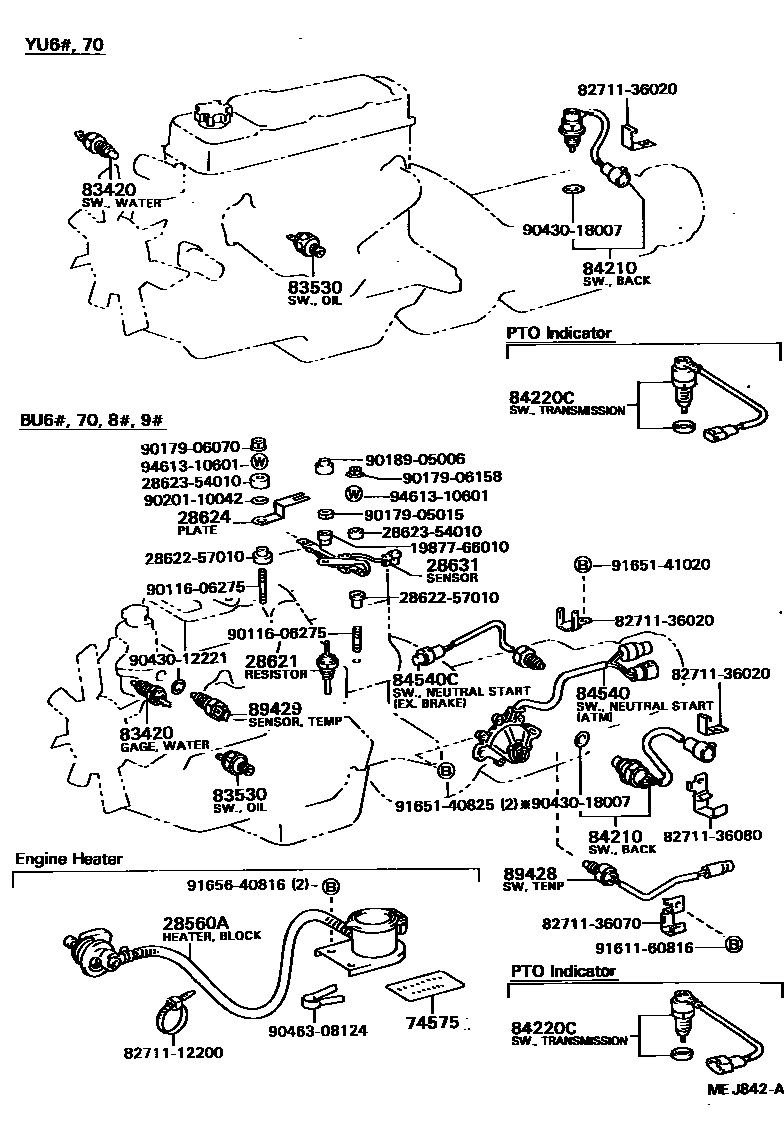

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

28560ABLOCK, HEATER

28621RESISTOR, GLOW PLUG

28624PLATE, CURRENT SENSOR

28631SENSOR, GLOW PLUG CURRENT

main28631-78020i1W..WU75,9#198708-198808

74575PLATE, BLOCK HEATER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iWU75,9#,YU6#,70198708-198808

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iWU75,9#,YU6#,70198708-198808

sub83530-28030

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iWU75,9#,YU6#,70198708-198808

84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-22030iWU75,YU61198708-198808

84540SWITCH ASSY, NEUTRAL START

main84540-36040

84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)

main84540-36040iWU75,9#198708-198808

89428SWITCH, TEMPERATURE DETECT, NO.2

89429SENSOR, OIL TEMPERATURE

main89422-30020iWU75,9#198708-198808

sub89422-12010

1987766010

main19877-66010

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271136020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36020

8271136070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36070

8271136080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-36080

9011606275

main90116-06275

9017905015

main90179-05015

9017906070

main90179-06070

9017906158

main90179-06158

9018905006

main90189-05006

9020110042

main90201-10042

9043012221

main90430-12221

9043018007

main90430-18007

9046308124

main90463-08124

9161160816

main91611-60816

9165140825

main91651-40825

9165141020

main91651-41020

9165640816

main91656-40816

9461310601

main94613-10601

34 parts on this diagram · 7 diagrams in section
