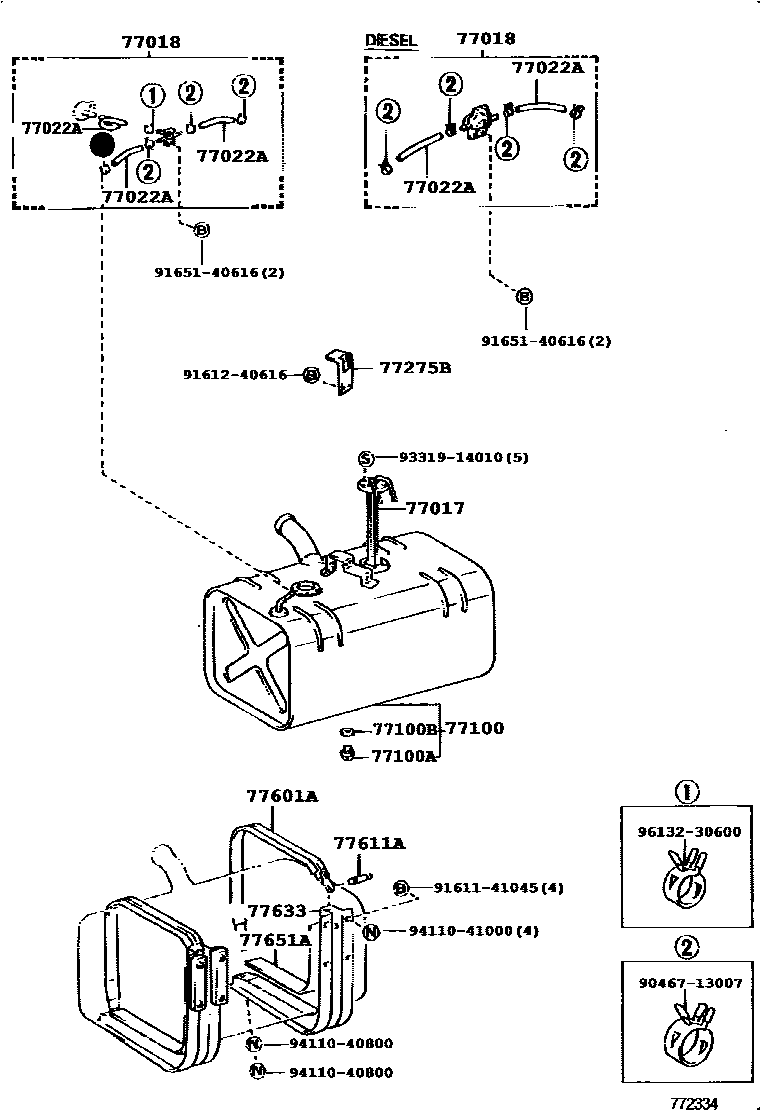

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-36111iYU60..T1,T2198708-198808

main77017-36130iYU60,70..SRF,TW1,TW2198708-198808

main77017-36181iWU75,9#,YU6#..DM1,T3198708-198808

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36051iYU60,70..SRF,TW1,TW2198708-198808

sub77018-60012

main77018-36090iYU6#..20T198708-198808

sub77018-36100

main77018-36230iWU75,9#198708-198808

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06040iYU60,70..SRF,TW1,TW2198708-198808

main95333-08020iYU60,70..SRF,TW1,TW2198708-198808

sub95337-08020

main95333-08030iWU75,9#,YU6#..03S198708-198808

77100TANK ASSY, FUEL

main77001-3B020iYU60..175198708-198808

main77001-3B030iYU70198708-198808

main77001-3B070iYU60..T1,T2198708-198808

main77001-3B090iYU6#..DM1,T3198708-198808

main77001-3B100iWU75,9#198708-198808

sub77001-3B101

77100APLUG(FOR FUEL TANK)

main90105-12116iWU75,9#,YU6#,70198708-198808

77100BGASKET(FOR FUEL TANK)

main90430-12245iWU75,9#,YU6#,70198708-198808

77275BPROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE

main77275-36020iWU75,YU61198708-198808

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-25090iYU60,70..SRF,TW1,TW2198708-198808

main77601-36090iYU60..T1,T2198708-198808

main77601-36140iWU75,9#;YU60..T3..ST198708-198808

sub77601-37030

main77601-36150iYU6#..(DM1,T3)..WT198708-198808

sub77601-37040

main77601-36150iYU6#..(DM1,T3)..WT198708-198808

sub77601-37040

77611APIN (FOR FUEL TANK BAND)

main77629-36010iWU75,9#,YU6#..03S198708-198808

main77653-25010iYU60,70..SRF,TW1,TW2198708-198808

77633STAY, FUEL TANK

main77501-25090iYU60,70..SRF,TW1,TW2198708-198808

sub77501-25091

main77501-36080iYU61198708-198808

main77633-36090iWU75,9#;YU60..T3..ST198708-198808

sub77633-36091

main77633-36111iYU60..T3..WT198708-198808

sub77633-36112

main77633-36120iYU60..T1,T2198708-198808

sub77633-36121

77651ACUSHION, FUEL TANK, NO.1

main77651-26040iYU60,70..SRF,TW1,TW2198708-198808

main77651-36100iWU75,9#,YU60..DM1,T3198708-198808

main77651-36110iYU6#..DM1,T1,T2198708-198808

9046713007

main90467-13007

9161141045

main91611-41045

9161240616

main91612-40616

9165140616

main91651-40616

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9613230600

main96132-30600

19 parts on this diagram · 5 diagrams in section
