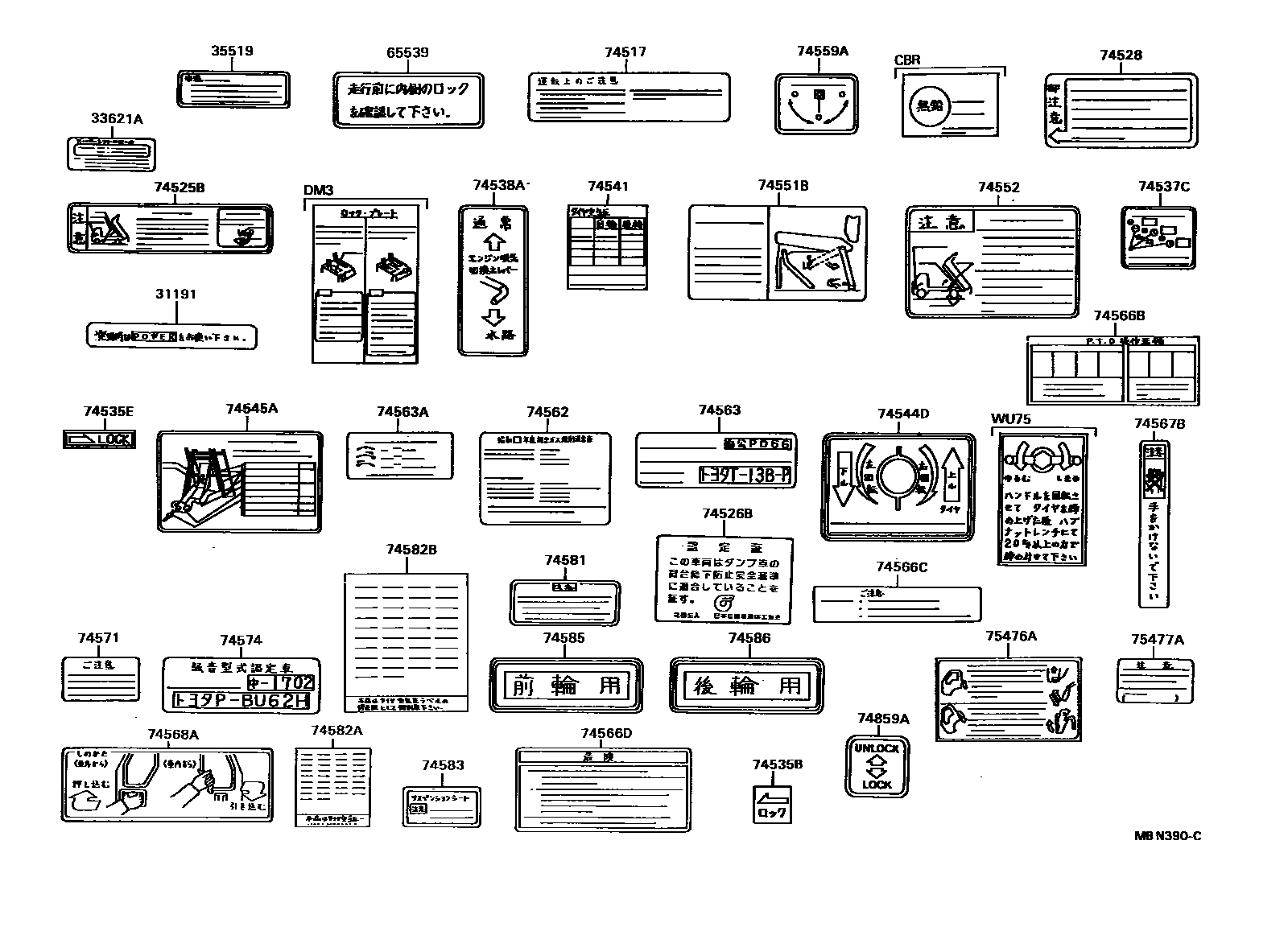

CAUTION PLATE

31191LABEL, CLUTCH INFORMATION

main31191-36020iWU75,9#198708-198808

33621APLATE, CONTROL LEVER CAUTION

main33621-25020iYU6#,70198708-198808

sub33621-37020

main33621-25020iWU9#..IV3198710-198808

sub33621-37020

main33621-36100iWU75,9#198708-198808

main33621-36110iWU9#..IV3198710-198808

35519PLATE, AUTOMATIC TRANSMISSION CAUTION

main35519-36010iWU9#..IV3198710-198808

65539PLATE, SIDE GATE CAUTION

main65539-92870iWU95..CBU198708-198808

74517PLATE, EXHAUST TEMPERATURE CAUTION

main74517-95400iWU75,9#,YU6#,70198708-198808

74525BPLATE, DUMP

main74525-93103iWU75,YU61..CBU198708-198808

74526BLABEL, DUMP REGULATION

main74526-93100iWU75,YU61..CBU198708-198808

74528LABEL, HOIST CYLINDER

main74528-96303iWU75,YU61..CBU198708-198808

74535BPLATE, TAIL GATE CAUTION

74535EPLATE, SHIFTING

main74535-96302iYU61;WU75..CBU198708-198808

74537CPLATE, DUMP LEVER

main74537-96306iYU61;WU75..CBU198708-198808

74538APLATE, AIR CLEANER INLET OPERATIONAL CAUTION

main74538-95404iYU70198708-198808

74541PLATE, TIRE PRESSURE CAUTION

main74552-3B010iWU95198708-198808

main74582-36400iYU60..ST..20T198708-198808

main74582-36410iYU60..ST..175198708-198808

main74582-36420iYU60..ST..20T198708-198808

main74582-36430iYU70198708-198808

main74582-36450iYU60..T2198708-198808

main74582-36510iYU60..T3..WT198708-198808

main74582-36570iYU60..WT..175198708-198808

main74582-36820iYU61198708-198808

main74582-36880iWU75198708-198808

main74582-36890iWU90198708-198808

74544DPLATE, TIRE CARRIER CAUTION

main74544-36020iWU9#,YU60,70..SRF,T1,T3,TW1198708-198808

main74544-96301iWU75..CBU198708-198808

74545ALABEL, DUMP GREASE

main74545-96305iYU61..CBU198708-198808

main74545-96306iWU75..CBU198708-198808

74551BPLATE, REAR NO.2 SEAT CAUTION

74552PLATE, SAFETY CAUTION

main74552-93102iWU75,YU61..CBU198708-198808

74559APLATE, FUEL CAUTION

main74559-14010iYU6#,70198708-198808

main74559-36010iWU9#198708-198808

sub74538-37030

74562PLATE, EMISSION CONTROL SYSTEM INFORMATION

main74562-36121iWU75,9#198708-198808

main74562-36170iYU6#,70198708-198808

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-95403

74563ALABEL, ROOF VENTILATOR INFORMATION

main74563-95403iWU75,9#198708-198808

74566BPLATE, POWER TAKE OFF CAUTION

main74566-93106iWU75..IV3;WU9#,YU60198708-198808

74566CPLATE, FRONT SLIDE DOOR CAUTION

main74566-95401iYU60..T3..WT..IV3198708-198808

74566DLABEL, POWER TAKE OFF VALVE LINK COVER CAUTION

main74566-96300iWU75,YU61..CBU198708-198808

74567BPLATE, FRONT SLIDE DOOR ARM CAUTION

main74567-95401iYU60..T3..WT..IV3198708-198808

74568APLATE, FRONT SLIDE DOOR CAUTION, NO.2

main74568-95401iYU60..T3..WT..IV3198708-198808

74571PLATE, BRAKE FLUID CAUTION

main47288-32010iWU75,9#,YU6#,70198708-198808

74574PLATE, NOISE IDENTIFICATION

74581PLATE, POWER STEERING CAUTION

main74581-37010iWU75,9#198708-198808

74582APLATE, SAFETY CAUTION

74582BPLATE, SAFETY CAUTION

main74582-36270iWU75,9#,YU6#..IV3198708-198808

74583PLATE, SEAT SUSPENSION CAUTION

main74583-95402iWU75,9#198708-198808

sub74583-37010

74585PLATE, TIRE CARRIER CAUTION, NO.2

main74585-25010iYU60..T2,TW2198708-198808

74586PLATE, TIRE CARRIER CAUTION, NO.3

main74586-25010iYU60..T2,TW2198708-198808

74859APLATE, CAUTION, REAR SEPARATOR

main74859-95A00iYU70..06S198708-198808

75476APLATE, TILT OPERATIONAL CAUTION

main75476-95417iYU6#..20T198708-198808

main75476-95420iWU75,9#198708-198808

75477APLATE, TILT OPERATIONAL CAUTION, NO.2

main75477-95409iWU75,9#,YU6#..03S198708-198808

37 parts on this diagram · 1 diagram in section
