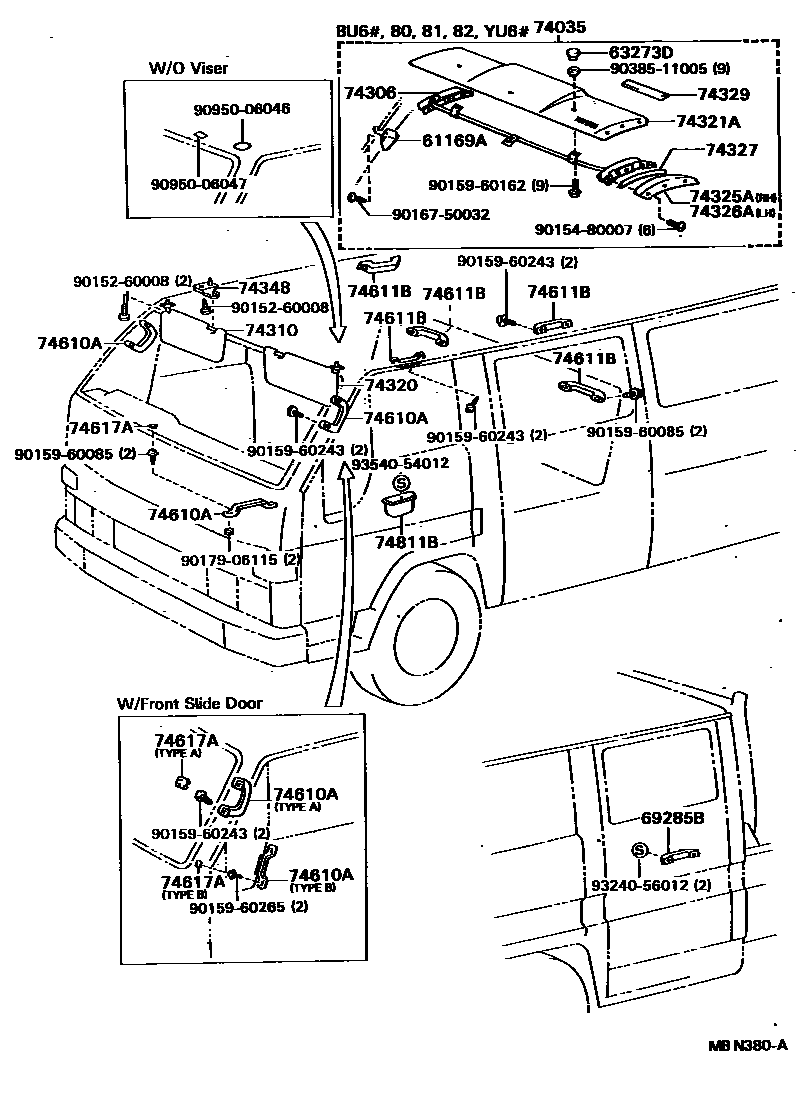

ARMREST & VISOR

61169ASPACER, ANTENNA HOLDER

main61169-95400iYU6#..20T198708-198808

63273DRETAINER, ROOF WINDOW HINGE

main63273-95701iYU6#..20T198708-198808

69285BHANDLE, PULL

main69285-95404-04iYU60..TOY..175198708-198808

BLUE,TRIM8#

sub69285-95404

main69285-95404-06iYU60..DYN..175198708-198808

BROWN,TRIM4#

sub69285-95404

74035FRONT VISOR SET

main74035-95402iYU6#..20T198708-198808

74306SUPPORT, SUB-ASSY, FRONT VISOR

main74306-95400iYU6#..20T198708-198808

74310VISOR ASSY, RH

main74310-95430-03iYU6#..TOY..20T198708-198808

main74310-95430-06iYU6#..DYN..20T198708-198808

main74310-95439-03iYU6#..TOY198708-198808

GRAY,TRIM8#

sub74310-95439

main74310-95439-06iYU6#,70..DYN198708-198808

BROWN,TRIM4#

sub74310-95439

main74310-95440-03iWU75,9#..TOY198708-198808

GRAY,TRIM8#

sub74310-95440

main74310-95440-06iWU75,9#..DYN198708-198808

BROWN,TRIM4#

sub74310-95440

main74310-95443-03iWU75,9#..TOY198708-198808

main74310-95443-06iWU75,9#..DYN198708-198808

74320VISOR ASSY, LH

main74320-95418-03iYU6#..TOY..20T198708-198808

main74320-95418-06iYU6#..DYN..20T198708-198808

main74320-95425-03iYU6#..TOY198708-198808

sub74320-95425

main74320-95425-06iYU6#,70..DYN198708-198808

sub74320-95425

main74320-95426-03iWU75,9#..TOY198708-198808

sub74320-95426

main74320-95426-06iWU75,9#..DYN198708-198808

sub74320-95426

main74320-95429-03iWU75,9#..TOY198708-198808

main74320-95429-06iWU75,9#..DYN198708-198808

74321AVISOR, FRONT

main74321-95402iYU6#..20T198708-198808

74325ASUPPORT, FRONT VISOR, NO.1

main74325-95401iYU6#..20T198708-198808

74326ASUPPORT, FRONT VISOR, NO.2

main74326-95400iYU6#..20T198708-198808

74327PAD, FRONT VISOR, NO.1

main74327-95400iYU6#..20T198708-198808

74329PAD, FRONT VISOR, NO.3

main74329-95400iYU6#..20T198708-198808

74348HOLDER, VISOR

main74348-12010-23iWU75,9#,YU6#..TOY198708-198808

GRAY,TRIM8#

sub74348-12010

sub74348-30010

main74348-12010-23iWU75,9#,YU6#..TOY198708-198808

sub74348-12010

sub74348-30010

main74348-12010-25iWU75,9#,YU6#,70..DYN198708-198808

BEIGE,TRIM4#

sub74348-12010

sub74348-30010

main74348-12010-25iWU75,9#,YU6#,70..DYN198708-198808

sub74348-12010

sub74348-30010

74610AGRIP SUB-ASSY, ASSIST

main74610-12030-04iYU60..TOY..T3..WT..IV3198708-198808

sub74610-12030

sub74610-16010

sub74603-16010

main74610-12030-16iYU60..DYN..T3..WT..IV3198708-198808

sub74610-12030

sub74610-16010

sub74603-16010

main74610-20030-44iWU75,9#..TOY198708-198808

sub74610-20030

main74610-20030-46iWU75,9#..DYN198708-198808

sub74610-20030

main74610-20040-04iWU75,9#,YU6#..TOY198708-198808

sub74610-20040

main74610-20040-06iWU75,9#,YU6#,70..DYN198708-198808

sub74610-20040

main74610-95403-04iWU75,9#,YU6#..TOY198708-198808

BLUE,TRIM8#

sub74610-95403

sub74620-87001

main74610-95403-04iWU75,9#,YU6#..TOY198708-198808

BLUE,TRIM8#,FR PILLAR

sub74610-95403

sub74620-87001

main74610-95403-06iWU75,9#,YU6#,70..DYN198708-198808

BROWN,TRIM4#

sub74610-95403

sub74620-87001

main74610-95403-06iWU75,9#,YU6#,70..DYN198708-198808

BROWN,TRIM4#,FR PILLAR

sub74610-95403

sub74620-87001

main74610-95404-04iYU60..TOY..T3..WT..IV3198708-198808

sub74610-95404

sub74610-95405

main74610-95404-06iYU60..DYN..T3..WT..IV3198708-198808

sub74610-95404

sub74610-95405

74611BGRIP, ASSIST

main74611-92601-04iWU75,9#,YU6#..TOY..03S198708-198808

BLUE,TRIM8#

sub74611-92601

main74611-92601-06iWU75,9#,YU6#..DYN..03S198708-198808

BROWN,TRIM4#

sub74611-92601

74617APLUG, ASSIST GRIP

main74617-14010-36iWU75,9#..DYN198708-198808

sub74617-14010

main74617-14010-44iWU75,9#..TOY198708-198808

sub74617-14010

main74617-16010-34iYU60..TOY..T3..WT..IV3198708-198808

TYPE B,BLUE,BLUE,TRIM8#

sub74617-16010

main74617-16010-34iYU60..TOY..T3..WT..IV3198708-198808

sub74617-16010

main74617-16010-36iYU60..DYN..T3..WT..IV3198708-198808

TYPE B,BROWN,BROWN,TRIM4#

sub74617-16010

main74617-16010-36iYU60..DYN..T3..WT..IV3198708-198808

sub74617-16010

main74617-95J00-06iYU60..DYN..T3..WT..IV3198708-198808

sub74617-95J00

main74617-95J00-24iYU60..TOY..T3..WT..IV3198708-198808

sub74617-95J00

74811BHANDLE, DOOR PULL

main74811-87001-16iYU60..DYN..T3..WT..IV3198708-198808

sub74811-87001

main74811-87001-16iYU60..DYN..T3..WT..IV3198708-198808

BROWN,TRIM4#

sub74811-87001

main74811-87001-34iYU60..TOY..T3..WT..IV3198708-198808

sub74811-87001

main74811-87001-34iYU60..TOY..T3..WT..IV3198708-198808

BLUE,TRIM8#

sub74811-87001

9015260008

main90152-60008

9015480007

main90154-80007

9015960085

main90159-60085

9015960162

main90159-60162

9015960243

main90159-60243

9015960265

main90159-60265

9016750032

main90167-50032

9017906115

main90179-06115

9038511005

main90385-11005

9095006046

main90950-06046

9095006047

main90950-06047

9324056012

main93240-56012

9354054012

main93540-54012

30 parts on this diagram · 1 diagram in section
