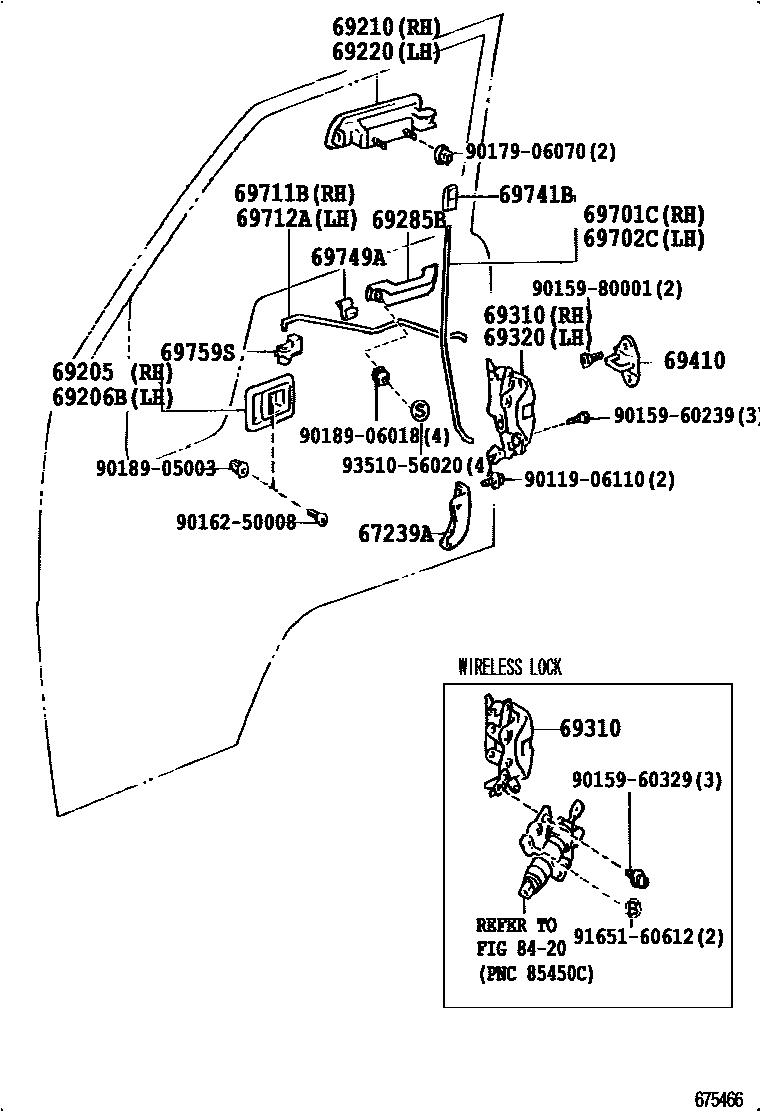

FRONT DOOR LOCK & HANDLE
67239AWEIGHT, FRONT DOOR
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69285BHANDLE, PULL
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
BLACK,TRIM4#,8#
69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
BLACK,TRIM4#,8#
69711LINK, FRONT SLIDE DOOR KEY CYLINDER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759SSNAP, FRONT DOOR INSIDE HANDLE
8420
9011906110
main90119-06110
9015960239
main90159-60239
9015960329
main90159-60329
9015980001
main90159-80001
9016250008
main90162-50008
9017906070
main90179-06070
9018905003
main90189-05003
9018906018
main90189-06018
9165160612
main91651-60612
9351056020
main93510-56020
28 parts on this diagram · 2 diagrams in section
