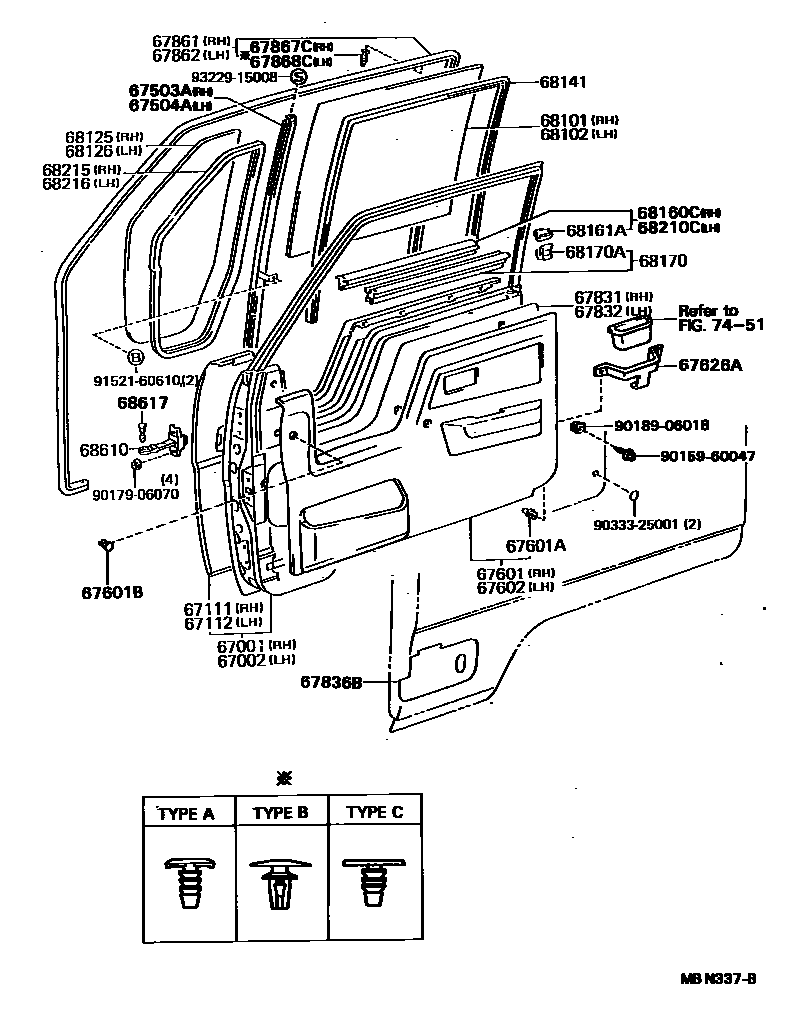

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95429iWU75,9#,YU6#,70198708-198801

sub67001-95428

main67001-95432iWU75,9#,YU6#,70198801-198808

sub67001-37020

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95432iYU60..T3..WT..IV3198708-198808

sub67002-37030

main67002-95433iWU75,9#,YU6#,70198708-198801

sub67002-95435

main67002-95438iWU75,9#,YU6#,70198801-198808

sub67002-37020

67111PANEL, FRONT DOOR, OUTER RH

main67111-95406iWU75,9#,YU6#,70198708-198801

sub67111-95407

main67111-95407iWU75,9#,YU6#,70198801-198808

sub67111-37020

67112PANEL, FRONT DOOR, OUTER LH

main67112-95405iWU75,9#,YU6#,70198708-198801

sub67112-95406

main67112-95406iWU75,9#,YU6#,70198801-198808

sub67112-37020

main67112-95407iYU60..T3..WT..IV3198708-198808

sub67112-37030

67503ABAR SUB-ASSY, FRONT DOOR DIVISION, RH

main67503-95400iWU75,9#,YU6#,70198708-198808

67504ABAR SUB-ASSY, FRONT DOOR DIVISION, LH

main67504-95400iWU75,9#,YU6#,70198708-198808

main67504-95401iYU60..T3..WT..IV3198708-198808

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95413-04iWU75,9#,YU6#..TOY198708-198808

BLUE,TRIM8#

main67610-95413-06iWU75,9#,YU6#,70..DYN198708-198808

BROWN,TRIM4#

main67610-95414-04iWU75,9#..TOY198708-198808

main67610-95414-06iWU75,9#..DYN198708-198808

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12020iYU60..T3..WT..IV3198708-198808

main67771-30060iWU75,9#,YU6#,70198708-198808

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07043-16iYU60..DYN..T3..WT..IV3198708-198808

sub90467-07043

main90467-07043-16iYU60..DYN..T3..WT..IV3198708-198808

BROWN,TRIM4#

sub90467-07043

main90467-07043-54iYU60..TOY..T3..WT..IV3198708-198808

sub90467-07043

main90467-07043-54iYU60..TOY..T3..WT..IV3198708-198808

BLUE,TRIM8#

sub90467-07043

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95416-04iYU60..TOY..T3..WT..IV3198708-198808

sub67620-95416

main67620-95416-06iYU60..DYN..T3..WT..IV3198708-198808

sub67620-95416

main67620-95420-04iWU75,9#,YU6#..TOY198708-198808

BLUE,TRIM8#

main67620-95420-06iWU75,9#,YU6#,70..DYN198708-198808

BROWN,TRIM4#

main67620-95421-04iWU75,9#..TOY198708-198808

main67620-95421-06iWU75,9#..DYN198708-198808

67626ABRACKET, DOOR TRIM, NO.2

main67626-95400iYU60..T3..WT..IV3198708-198808

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95406iWU75,9#,YU6#,70198708-198808

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95405iYU60..T3..WT..IV3198708-198808

main67832-95407iWU75,9#,YU6#,70198708-198808

67836BCOVER, FRONT DOOR SERVICE HOLE SUB, LH

main67836-95400iYU60..T3..WT..IV3198708-198808

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95406iWU75,9#,YU6#,70198708-198808

sub67861-37010

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95406iWU75,9#,YU6#,70198708-198808

sub67862-37010

main67862-95408iYU60..T3..WT..IV3198708-198808

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-30040iWU75,9#,YU6#,70198708-198808

main67868-89101iWU75,9#,YU6#,70198708-198808

sub67867-89103

main67868-95401iWU75,9#,YU6#,70198708-198808

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-89103iWU75,9#,YU6#,70198708-198808

TYPE B

main67867-95401iWU75,9#,YU6#,70198708-198808

TYPE C

main67868-30040iWU75,9#,YU6#,70198708-198808

TYPE A

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95406iWU75,9#,YU6#,70198708-198808

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95406iWU75,9#,YU6#,70198708-198808

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-95400iWU75,9#,YU6#,70198708-198808

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-95400iWU75,9#,YU6#,70198708-198808

sub68126-37020

68141RUN, FRONT DOOR GLASS

main68141-95407iWU75,9#,YU6#,70198708-198808

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-95402iWU75,9#,YU6#,70198708-198808

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-30080iWU75,9#,YU6#,70198708-198808

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95407iWU75,9#,YU6#,70198708-198808

main68172-95403iYU60..T3..WT..IV3198708-198808

main68172-95404iWU75,9#,YU6#,70198708-198808

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080iWU75,9#,YU6#,70198708-198808

main68211-95400iWU75,9#,YU6#,70198708-198808

ORANGE

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68160-95402iWU75,9#,YU6#,70198708-198808

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-95402iWU75,9#,YU6#,70198708-198808

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-95402iWU75,9#,YU6#,70198708-198808

68610CHECK ASSY, FRONT DOOR

main68610-95400iYU60..T3..WT..IV3198708-198808

68617PIN, FRONT DOOR CHECK

main68617-90A00iYU60..T3..WT..IV3198708-198808

7451

9015960047

main90159-60047

9017906070

main90179-06070

9018906018

main90189-06018

9033325001

main90333-25001

9152160610

main91521-60610

9322915008

main93229-15008

39 parts on this diagram · 1 diagram in section
