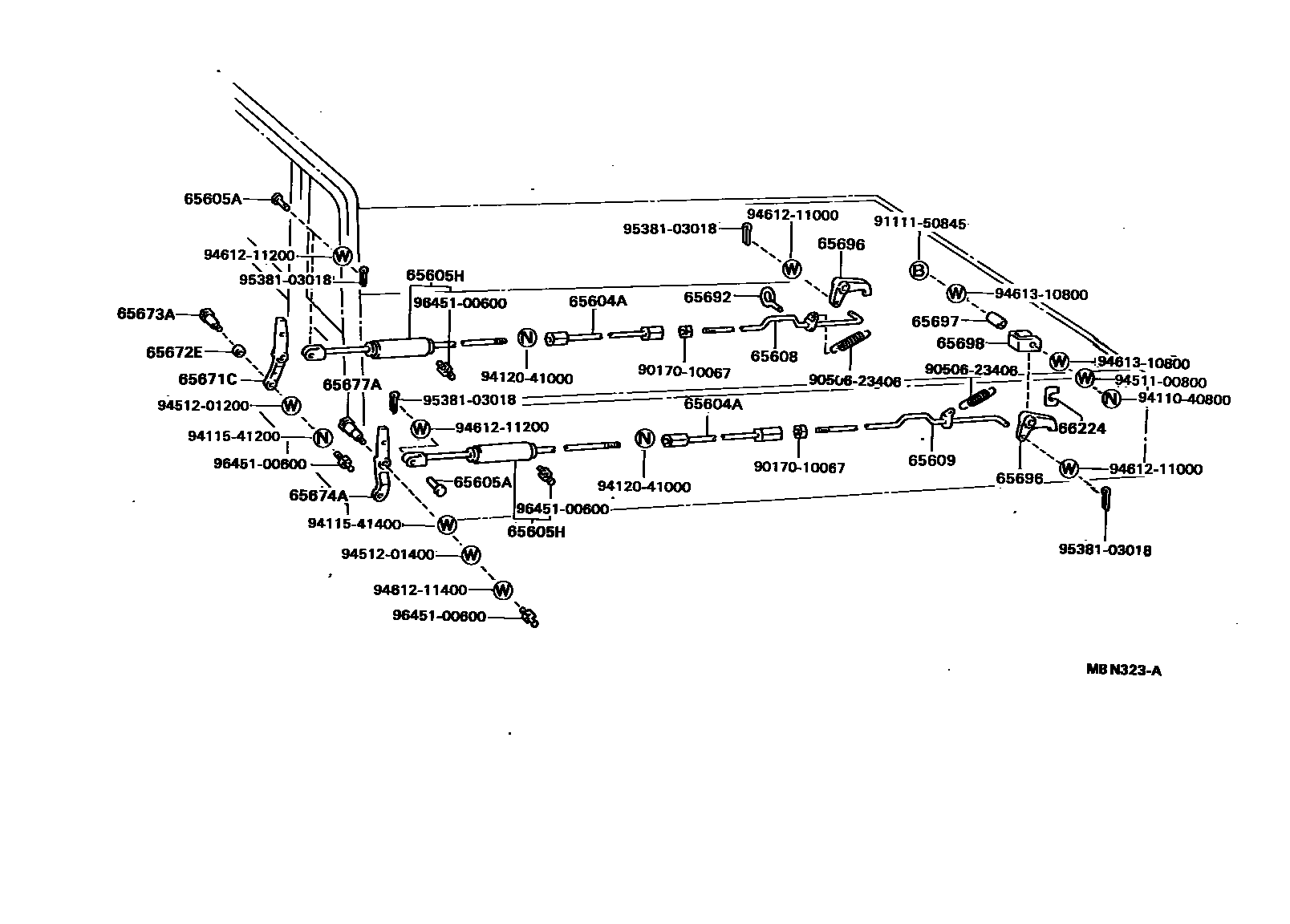

REAR BODY SIDE GATE LOCK & TAIL GATE LOCK

0001 1 0002 1

65604ALINK SUB-ASSY, TAIL GATE LOCK CONNECTING

main65604-96304iWU75..CBU198708-198808

65605APIN, TAIL GATE LOCK LINK

main90240-10004iYU61..CBU198708-198808

main90240-12045iWU75..CBU198708-198808

65605HLINK SUB-ASSY, TAIL GATE LOCK W/ SPRING

main65605-96310iWU75..CBU198708-198808

65608LINK SUB-ASSY, TAIL GATE LOCK, REAR RH

main65608-96304iWU75..CBU198708-198808

65609LINK SUB-ASSY, TAIL GATE LOCK, REAR LH

main65609-96304iWU75..CBU198708-198808

65671CARM, ROLLER, RH

main65671-96304iWU75..CBU198708-198808

65672EROLLER, TAIL GATE LOCK

main65603-96304iWU75..CBU198708-198808

65673ASHAFT, ROLLER

main65673-96305iWU75..CBU198708-198808

65674AARM, ROLLER, LH

main65674-96304iWU75..CBU198708-198808

65677ASHAFT, ROLLER ARM

main65677-96303iWU75..CBU198708-198808

65692GUIDE, LINK

main65692-96301iWU75..CBU198708-198808

sub65616-93300

65696LATCH, TAIL GATE LOCK

main65696-96301iWU75..CBU198708-198808

main65780-93101iYU61..CBU198708-198808

main65790-93101iYU61..CBU198708-198808

65697PIN, LATCH

main65697-96303iWU75..CBU198708-198808

65698BRACKET, TAIL GATE LATCH

main65698-96304iWU75..CBU198708-198808

66224SUPPORT, TAIL GATE HINGE PIN

main66224-96303iWU75..CBU198708-198808

9017010067

main90170-10067

9050623406

main90506-23406

9111150845

main91111-50845

9411040800

main94110-40800

9411541200

main94115-41200

9411541400

main94115-41400

9412041000

main94120-41000

9451100800

main94511-00800

9451201200

main94512-01200

9451201400

main94512-01400

9461211000

main94612-11000

9461211200

main94612-11200

9461211400

main94612-11400

9461310800

main94613-10800

9538103018

main95381-03018

9645100600

main96451-00600

31 parts on this diagram · 2 diagrams in section
