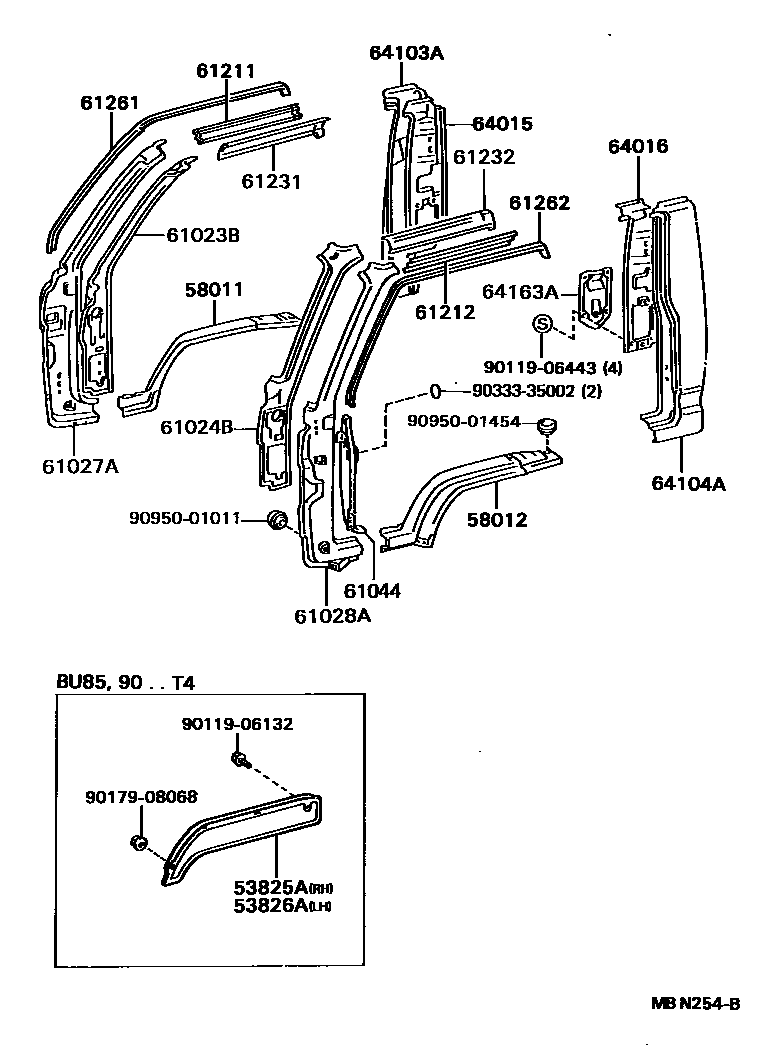

SIDE MEMBER

0001 1 0002 1 0003 1

53825APROTECTOR, FRONT FENDER, UPPER RH

53826APROTECTOR, FRONT FENDER, UPPER LH

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-95444iWU75,9#,YU6#..03S198708-198808

sub58011-37010

main58011-95448iYU60..175198708-198808

sub58011-37030

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-95440iWU75,9#,YU6#..03S198708-198808

sub58012-37010

main58012-95442iYU60..T3..WT..IV3198708-198808

sub58012-95440

main58012-95445iYU60..175198708-198808

sub58012-37040

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iWU75,9#,YU6#,70198708-198808

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iWU75,9#,YU6#,70198708-198808

sub61024-95403

main61024-95403iYU60..T3..WT..IV3198708-198808

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95400iWU75,9#,YU6#,70198708-198808

sub61027-37010

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95400iWU75,9#,YU6#,70198708-198808

sub61028-37030

main61028-95402iYU60..T3..WT..IV3198708-198808

sub61028-37050

61044EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main61044-95400iYU60..T3..WT..IV3198708-198808

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3198708-198808

main61211-95404iYU60..175198708-198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3198708-198808

main61212-95404iYU60..175198708-198808

61231RAIL, ROOF SIDE, INNER RH

main61203-95401iYU60..175198708-198808

main61203-95402iWU75,9#198708-198808

main61231-95405iWU75,9#,YU6#,70..DM1,SRF,T1,T2,T3198708-198808

61232RAIL, ROOF SIDE, INNER LH

main61204-95402iYU60..175198708-198808

main61204-95403iWU75,9#198708-198808

main61232-92600iYU70198708-198808

sub61232-37030

main61232-95406iWU75,9#,YU6#..03S198708-198808

61261CHANNEL, ROOF DRIP, RH

main61261-92602iYU70198708-198808

sub61261-37010

main61261-95407iWU75,9#,YU6#198708-198808

61262CHANNEL, ROOF DRIP, LH

main61262-92602iYU70198708-198808

sub61262-37010

main61262-95407iWU75,9#,YU6#198708-198808

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-92603iYU70198708-198808

main64015-95401iYU6#..20T198708-198808

sub64015-95411

main64015-95405iWU75,9#198708-198808

main64015-95409iWU75,9#198708-198808

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-92603iYU70198708-198808

main64016-95401iYU6#..20T198708-198808

sub64016-95415

main64016-95407iWU75,9#198708-198808

main64016-95413iWU75,9#198708-198808

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-95401iWU75,9#198708-198808

sub64103-95403

main64103-95403iYU6#..20T198708-198808

main64103-95406iWU75,9#198708-198808

sub64103-95401

sub61267-95400

main64103-95408iYU6#..20T198708-198808

sub64103-95403

sub61267-95400

main64103-95412iYU60..175198708-198808

sub64103-37080

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-95401iWU75,9#198708-198808

sub64104-95403

main64104-95403iYU6#..20T198708-198808

main64104-95407iWU75,9#198708-198808

sub64104-95401

sub61268-95400

main64104-95410iYU6#..20T198708-198808

sub64104-95403

sub61268-95400

main64104-95414iYU60..175198708-198808

sub64104-37080

64163ACOVER, BACK CORNER, INNER

main64163-95404iYU6#198708-198808

main64163-95410-03iWU75,9#..TOY198708-198808

GRAY,TRIM8#

sub64163-95901

sub64163-95410

main64163-95410-06iWU75,9#,YU70..DYN198708-198808

BROWN,TRIM4#

sub64163-95901

sub64163-95410

9011906132

main90119-06132

9011906443

main90119-06443

9017908068

main90179-08068

9033335002

main90333-35002

9095001011

main90950-01011

9095001454

main90950-01454

26 parts on this diagram · 3 diagrams in section
