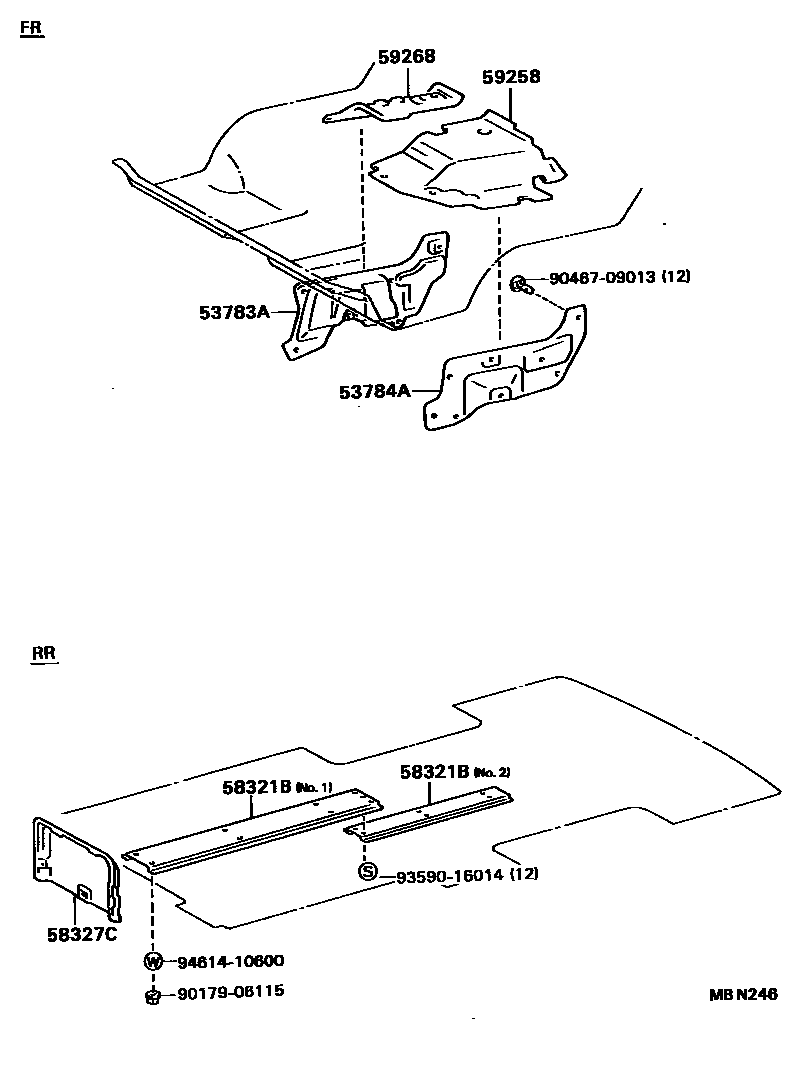

FLOOR INSULATOR

53783AINSULATOR, APRON FRONT FENDER, RH

main53783-95401iWU75,9#198708-198808

53784AINSULATOR, APRON FRONT FENDER, LH

main53774-95401iWU75,9#198708-198808

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58045-92600iYU70198708-198808

main58321-92602iYU70198708-198808

sub58321-37010

58327CINSULATOR, TRANSMISSION SERVICE HOLE COVER

main58327-92601iYU60,70..SRF,TW1,TW2198708-198808

sub58327-37020

59258INSULATOR, ENGINE SERVICE HOLE COVER MAIN

main59258-95402iWU75,9#,YU6#,70198708-198808

59268INSULATOR, ENGINE SUB COVER

main59268-95404iWU75,9#,YU6#,70198708-198808

9017906115

main90179-06115

9046709013

main90467-09013

9359016014

main93590-16014

9461410600

main94614-10600

10 parts on this diagram · 1 diagram in section
