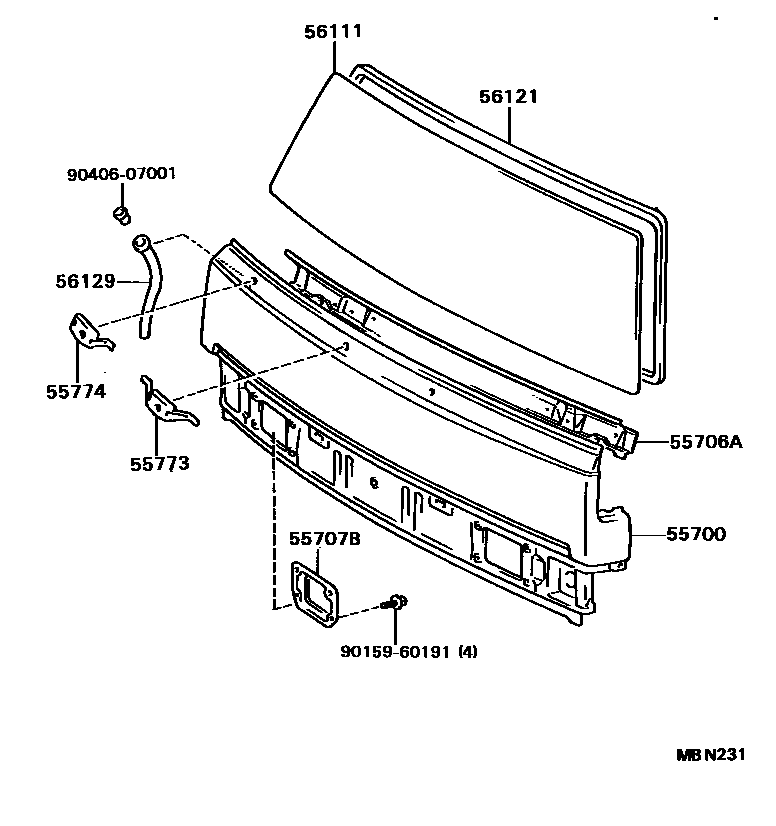

FRONT PANEL & WINDSHIELD GLASS

55700PANEL ASSY, FRONT

main55701-95443iYU6#,70198708-198808

sub55701-95449

main55701-95446iWU75,9#198708-198808

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95405iYU6#,70198708-198808

main55706-95407iWU75,9#198708-198808

55707BSHUTTER SUB-ASSY, FRONT AIR

main55707-95404iYU6#,70198708-198808

main55723-95404iWU75,9#198708-198808

55773RETAINER, WIPER SHAFT, CENTER

main55773-95406iYU6#,70198708-198808

main55773-95407iWU75,9#198708-198808

main55773-95408iWU75,9#198708-198808

55774RETAINER, WIPER SHAFT SIDE

main55774-95402iYU6#,70198708-198808

main55774-95406iWU75,9#198708-198808

56111GLASS, WINDSHIELD

main56111-95416iYU6#,70198708-198808

sub56111-95417

main56111-95419iWU75,9#198708-198808

sub56111-95420

56121WEATHERSTRIP, WINDSHIELD

main56121-95411iWU75,9#198708-198808

main56121-95A06iYU6#,70198708-198808

56129HOSE, WINDSHIELD DRAIN

main56129-95400iWU75,9#,YU6#,70198708-198808

sub56129-95J00

9015960191

main90159-60191

9040607001

main90406-07001

10 parts on this diagram · 1 diagram in section
