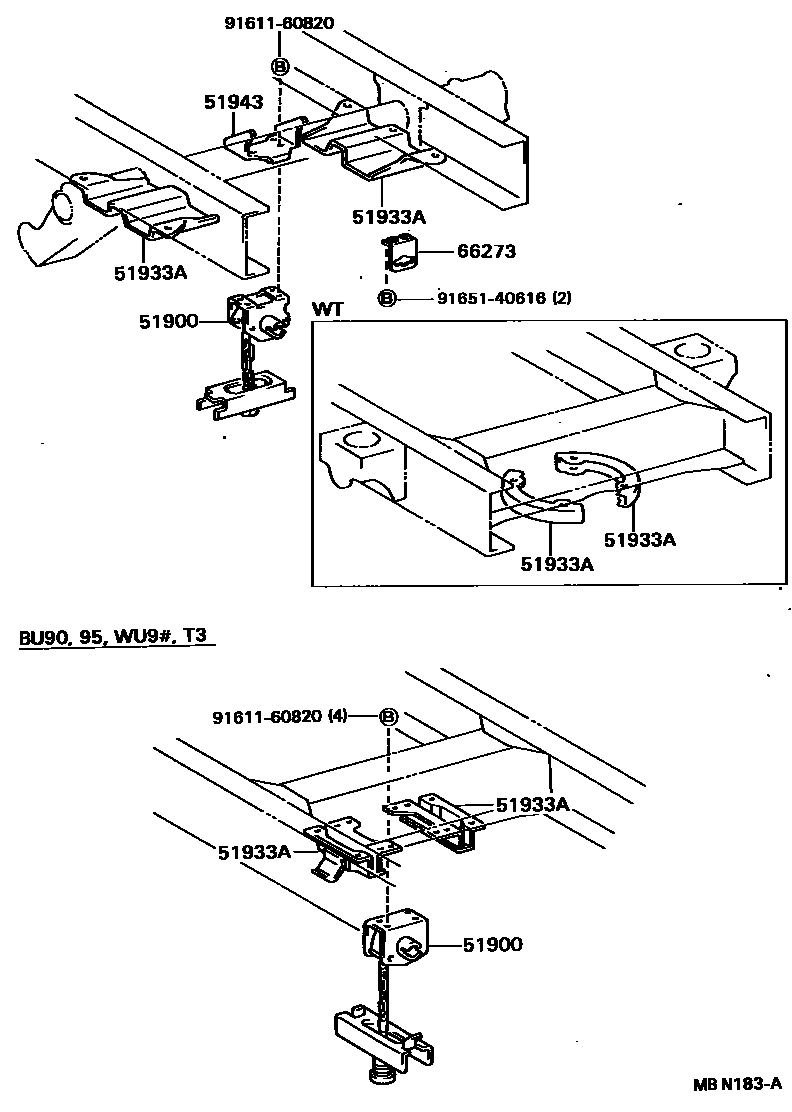

SPARE WHEEL CARRIER

0001 1 0002 1 0003 1 0004 1 0005 1

51900CARRIER ASSY, SPARE WHEEL

main51900-36050iWU9#198708-198808

main51900-36101iYU60,70..SRF,T1,T3,TW1198708-198808

sub51900-36102

main51900-93101iYU61..CBU198708-198808

51933BOLT, SPARE WHEEL CARRIER EYE

main51933-93102iYU61..CBU198708-198808

51933ASTOPPER, SPARE WHEEL, NO.1

main51903-36040iWU9#198708-198808

main51933-36040iYU60,70..ST198708-198808

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-36020iYU60,70..ST198708-198808

main65103-93100iYU61..CBU198708-198808

66273GUIDE, SPARE TIRE CARRIER

main66273-95400iYU60..(T1,TW1)..CBU198708-198808

9161160820

main91611-60820

9165140616

main91651-40616

7 parts on this diagram · 5 diagrams in section
