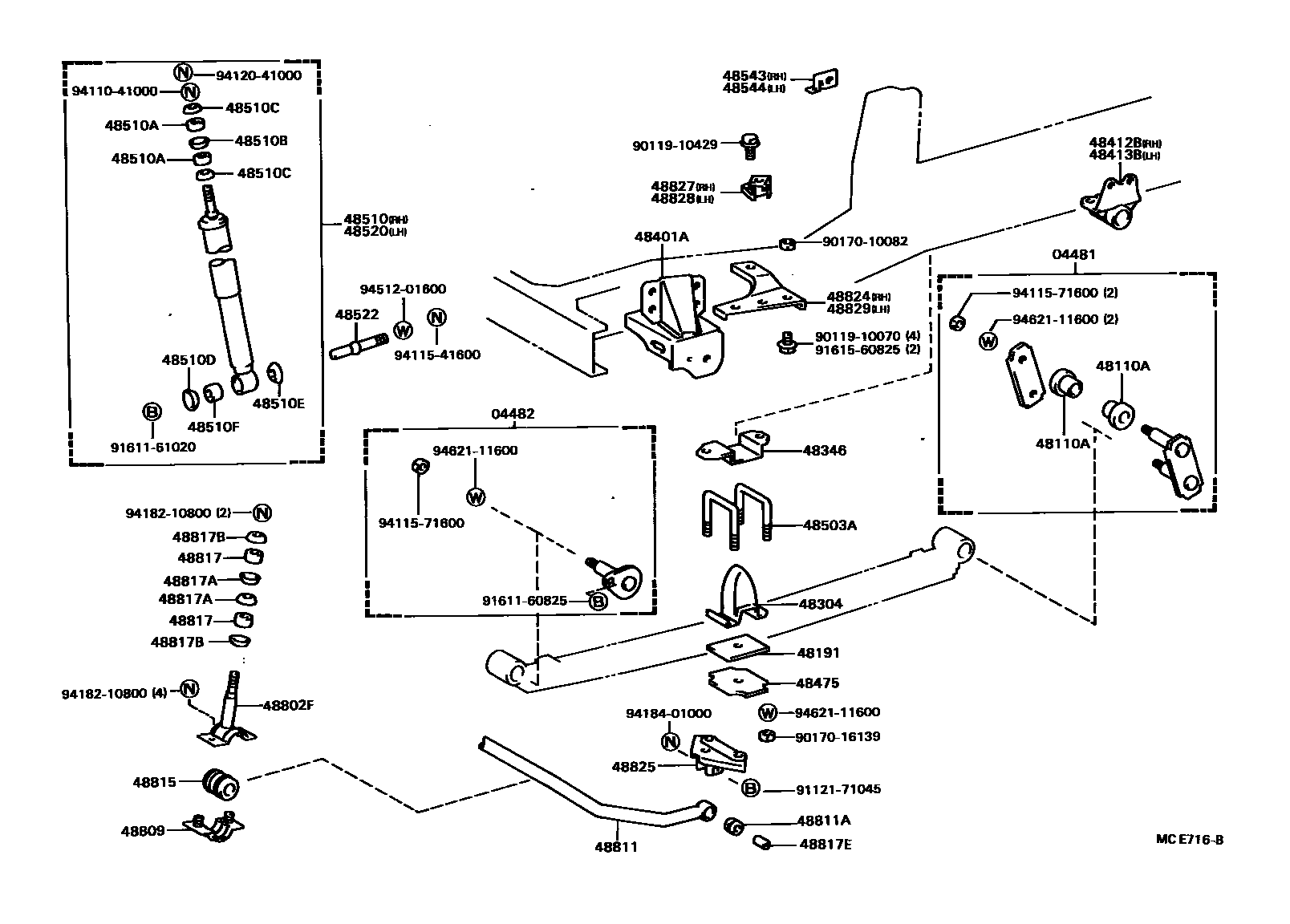

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04481SHACKLE KIT, FRONT SPRING

main04481-36070iYU6#,70198708-198808

sub04481-36090

main04481-36080iWU75,9#198708-198808

04482PIN KIT, FRONT SPRING

main04482-36010iYU6#,70198708-198808

sub04482-36011

main04482-36020iWU75,9#198708-198808

48110SPRING ASSY, FRONT, RH

main48110-3B150iYU70;YU60..WT198708-198808

main48110-3B180iYU60..T3..WT..IV3198708-198808

sub48110-3B181

main48110-3B370iWU75,9#198708-198808

main48110-3B390iWU75,9#198708-198808

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-23037iYU6#,70198708-198808

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-25010iYU6#,70198708-198808

main48191-35020iWU75,9#198708-198808

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-36120iWU75,9#198708-198808

main48304-36150iYU6#,70198708-198808

48346STOPPER, BUMPER, FRONT

main48346-36040iYU60,70198708-198808

main48346-36050iYU61198708-198808

48401ABRACKET SUB-ASSY, SPRING, NO.1

main48411-36120iYU60,70198708-198808

main48411-36140iWU75,9#198708-198808

RH

main48411-36150iYU61198708-198808

RH

main48412-36120iYU60,70198708-198808

LH

main48412-36140iWU75,9#198708-198808

LH

main48412-36150iYU61198708-198808

LH

48412BBRACKET, SPRING, NO.2 RH

main48413-36050iYU60,70198708-198808

main48413-36060iYU61198708-198808

main48433-36060iWU75,9#198708-198808

48413BBRACKET, SPRING, NO.2 LH

main48413-36050iYU60,70198708-198808

main48413-36060iYU61198708-198808

main48434-36060iWU75,9#198708-198808

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iWU75,9#,YU6#,70198708-198808

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90117-16015iWU75,9#198708-198808

sub90117-16033

main90117-16016iWU75,9#198708-198808

main90117-16017iWU75,9#198708-198808

main90117-16020iYU6#,70198708-198808

main90117-16033iWU75,9#198708-198808

main90117-16093iYU61,70;YU60..ST;YU60..(T2,TW2)..CBU198708-198808

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-39505iYU6#,70198708-198808

sub48511-39506

main48511-39525iWU75198708-198808

sub48511-39526

main48511-39535iWU9#198708-198808

sub48511-39536

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iWU75,9#,YU6#,70198708-198808

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02007iWU75,9#,YU6#,70198708-198808

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iWU75,9#,YU6#,70198708-198808

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03007iWU75,9#,YU6#,70198708-198808

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iWU75,9#,YU6#,70198708-198808

48510FCUSHION, SHOCK ABSORBER

main90385-16009iWU75,9#,YU6#,70198708-198808

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-39505iYU6#,70198708-198808

sub48511-39506

main48511-39525iWU75198708-198808

sub48511-39526

main48511-39535iWU9#198708-198808

sub48511-39536

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25010iWU75,9#,YU6#,70198708-198808

48543REINFORCEMENT, FRONT ABSORBER BRACKET, RH

main48543-36010iYU61198708-198808

48544REINFORCEMENT, FRONT ABSORBER BRACKET, LH

main48544-36010iYU61198708-198808

48802FLINK SUB-ASSY, FRONT STABILIZER

main48802-36030iYU60..WT..IV3;YU60..T3..WT..CBU198708-198804

main48802-36031iWU75,9#198804-198808

sub48802-36032

sub48809-36011

sub94184-61001

48809BRACKET SUB-ASSY, STABILIZER

main48809-36010iYU60..WT..IV3;YU60..T3..WT..CBU198708-198808

sub48809-36011

sub48802-36032

sub94184-61001

48811BAR, STABILIZER, FRONT

main48811-36020iYU60..T3..WT198708-198808

*

main48811-36050iWU75,9#198801-198808

48811ABUSH(FOR FRONT STABILIZER BAR)

main90385-13004iYU60..WT..IV3;YU60..T3..WT..CBU198708-198808

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-36020iYU60..WT..IV3;YU60..T3..WT..CBU198708-198808

48817CUSHION, FRONT STABILIZER

main48817-36010iWU75,9#,YU70198708-198804

main48817-36011iWU75,9#198804-198808

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02015iYU60..WT..IV3;YU60..T3..WT..CBU198708-198808

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02032iYU60..WT..IV3;YU60..T3..WT..CBU198708-198808

48817ESPACER(FOR STABILIZER BAR)

main90560-10044iYU60..WT..IV3;YU60..T3..WT..CBU198708-198808

48824BRACKET, STABILIZER, FRONT

main48824-36031iYU70198708-198804

sub48824-36032

main48824-36032iYU60..WT..IV3;YU60..T3..WT..CBU198806-198808

sub48824-36033

main48824-36060iWU75,9#198708-198803

main48824-36061iWU75,9#198803-198807

sub48824-36H00

main48824-36062iWU75,9#198807-198808

*

48825BRACKET, STABILIZER, NO.2

main48825-36010iYU70198708-198808

main48825-36020iWU75,9#198708-198808

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-36011iYU60..WT..IV3;YU60..T3..WT..CBU198708-198804

main48827-36040iWU75,9#198708-198803

main48827-36042iWU75,9#198807-198808

sub48827-36043

main48827-36050iYU70198806-198808

sub48827-36051

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48828-36011iYU70198708-198804

main48828-36030iWU75,9#198708-198803

main48828-36032iWU75,9#198807-198808

sub48828-36033

48829BRACKET, STABILIZER

main48829-36021iYU70198708-198804

sub48829-36022

main48829-36022iYU70198806-198808

sub48829-36023

main48829-36040iWU75,9#198708-198803

main48829-36042iWU75,9#198807-198808

*

9011910070

main90119-10070

9011910429

main90119-10429

9017010082

main90170-10082

9017016139

main90170-16139

9112171045

main91121-71045

9161160825

main91611-60825

9161161020

main91611-61020

9161560825

main91615-60825

9411041000

main94110-41000

9411541600

main94115-41600

9411571600

main94115-71600

9412041000

main94120-41000

9418210800

main94182-10800

9418401000

main94184-01000

9451201600

main94512-01600

9462111600

main94621-11600

53 parts on this diagram · 6 diagrams in section
