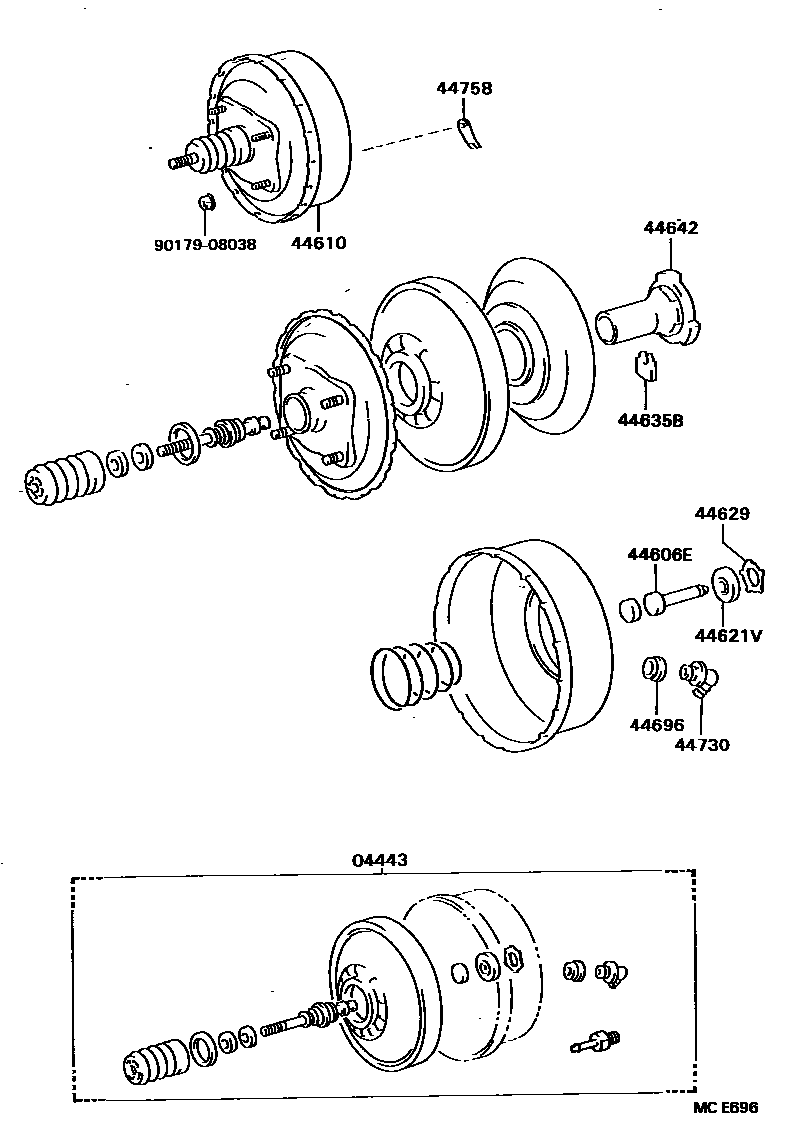

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-36091iWU75,9#198708-198808

main04443-36110iYU6#,70198708-198808

main04443-36150iYU60..T3..WT198708-198808

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-36240iYU6#,70198708-198808

44610BOOSTER ASSY, BRAKE

main44610-36321iWU75,9#198708-198808

main44610-36340iYU6#,70198708-198808

main44610-36350iYU60..T3..WT198708-198808

main44610-36460iYU6#,70198708-198808

main44610-36470iYU60..T3..WT198708-198808

44621VSEAL, BOOSTER BODY

main44621-28120iYU6#,70198708-198808

44629RING, CIRCULAR INTERNAL

main44628-28120iYU6#,70198708-198808

44635BKEY, VALVE STOPPER

main44635-36240iYU6#,70198708-198808

44642PISTON, BRAKE BOOSTER

main44642-36240iYU6#,70198708-198808

main44642-36260iYU60..T3..WT198708-198808

44696GROMMET, CHECK VALVE

main90480-24439iYU6#,70198708-198808

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20060iYU6#,70198708-198808

main44730-60040iWU75,9#198708-198808

44758BRACKET, VACUUM CHECK VALVE

main44758-36070iYU6#,70198708-198808

9017908038

main90179-08038

11 parts on this diagram · 4 diagrams in section
