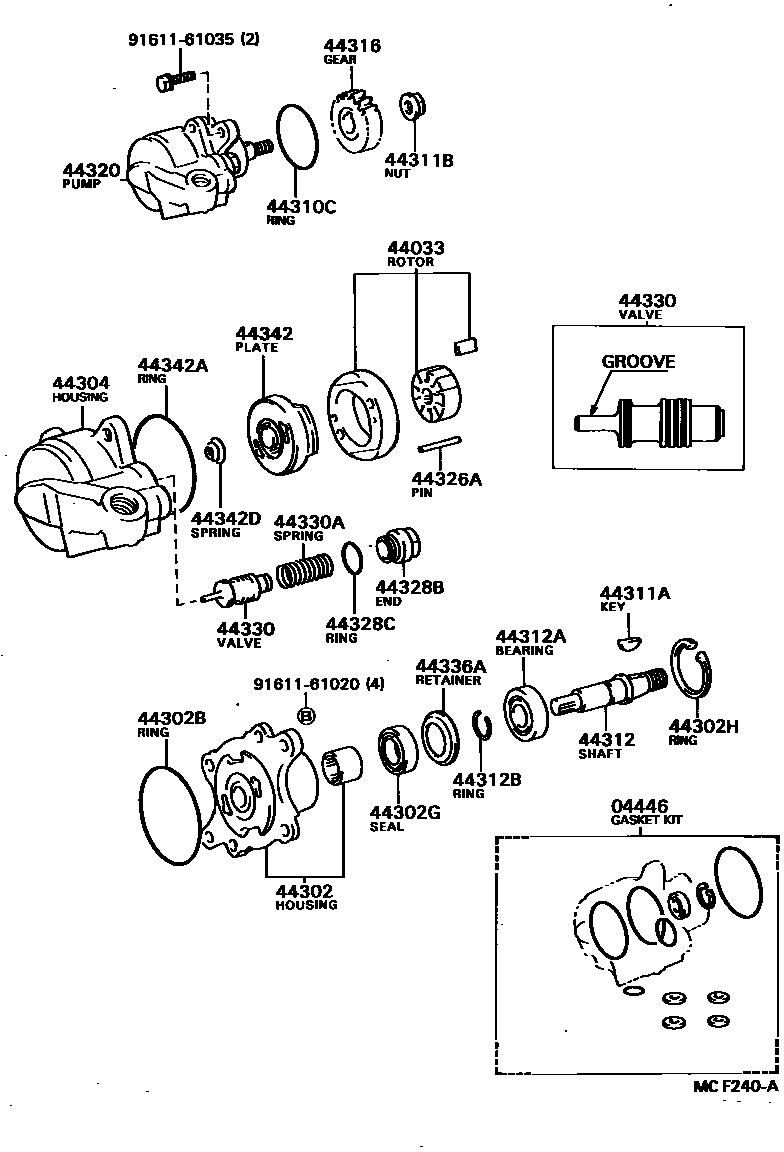

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-36030iWU75,9#198708-198808

sub04446-36070

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36030iYU60,70..SRF,T1,T2,T3,TW2198708-198808

sub44033-36060

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36170iYU60,70..SRF,T1,T2,T3,TW2198708-198808

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iYU6#,70..DM1,SRF,T1,T2,T3,TW2198708-198808

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21004iWU75,9#198708-198808

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main96151-04000iWU75,9#198708-198808

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36170iYU60,70..SRF,T1,T2,T3,TW2198708-198808

44310CRING, O(FOR VANE PUMP)

44311PULLEY, VANE PUMP

main44311-36030iYU6#,70..DM1,SRF,T1,T2,T3,TW2198708-198808

44311AKEY, VANE PUMP PULLEY

main90029-18001iYU6#,70..DM1,SRF,T1,T2,T3,TW2198708-198808

main90029-18002iWU75,9#198708-198808

44311BNUT(FOR VANE PUMP PULLEY)

main90029-07001iYU6#,70..DM1,SRF,T1,T2,T3,TW2198708-198808

main90179-14009iWU75,9#198708-198808

44312SHAFT, VANE PUMP

main44312-36100iYU6#,70..DM1,SRF,T1,T2,T3,TW2198708-198808

main44312-89101iWU75,9#198708-198808

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iWU75,9#198708-198808

main90029-36004iYU6#,70..DM1,SRF,T1,T2,T3,TW2198708-198808

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iWU75,9#198708-198808

44316GEAR, VANE PUMP

main44316-89101iWU75,9#198708-198808

subS4435-11110

44320PUMP ASSY, VANE

main44320-36050iYU60,70..SRF,T1,T2,T3,TW2198708-198808

main44320-36150iYU61198708-198808

main44320-89103iWU75,9#198708-198808

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iWU75,9#198708-198808

44328BEND, VANE PUMP HOUSING

main44328-89101iWU75,9#198708-198808

subS4432-61180

44328CRING, O(FOR PUMP HOUSING END)

main96711-19020iYU6#,70..DM1,SRF,T1,T2,T3,TW2198708-198808

44330VALVE ASSY, FLOW CONTROL

main44330-36050iYU60,70..SRF,T1,T2,T3,TW2198708-198808

main44330-36060iYU60,70..SRF,T1,T2,T3,TW2198708-198808

main44330-36070iYU60,70..SRF,T1,T2,T3,TW2198708-198808

main44330-36080iYU61198708-198808

main44330-36090iYU61198708-198808

main44330-36100iYU61198708-198808

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iWU75,9#198708-198808

44336ARETAINER, VANE PUMP OIL SEAL

main44336-89101iWU75,9#198708-198808

44342PLATE, VANE PUMP SIDE, REAR

main44342-89102iYU6#,70..DM1,SRF,T1,T2,T3,TW2198708-198808

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main96711-24060iYU6#,70..DM1,SRF,T1,T2,T3,TW2198708-198808

44342DSPRING, COMPRESSION(FOR PRESSURE PLATE)

main90029-60003iWU75,9#198708-198808

9161161020

main91611-61020

9161161035

main91611-61035
