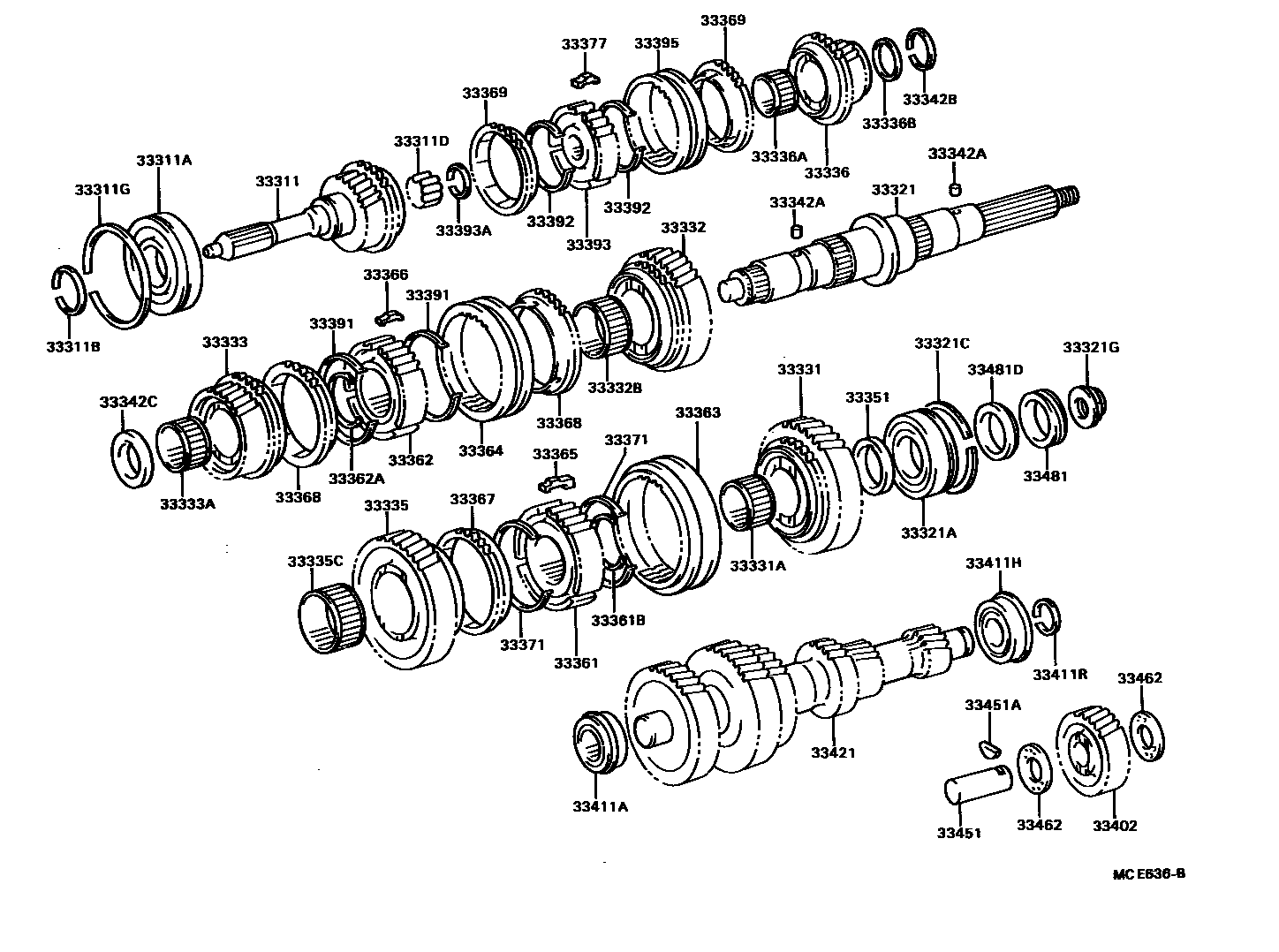

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33331GEAR, REVERSE
sub33031-36020
33331ABEARING (FOR REVERSE GEAR)
sub90364-47007
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
sub90364-47007
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
sub90364-37012
33336BSPACER (FOR 5TH GEAR BEARING)
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
33342CWASHER, 3RD GEAR THRUST
33351WASHER, REVERSE GEAR THRUST
sub33351-36011
33361HUB, TRANSMISSION CLUTCH, NO.1
sub33361-36021
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33363SLEEVE, TRANSMISSION HUB, NO.1
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411RRING, SNAP, COUNTER GEAR REAR BEARING
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
sub33462-60020
33481GEAR, SPEEDOMETER DRIVE (MTM)
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
52 parts on this diagram · 2 diagrams in section
