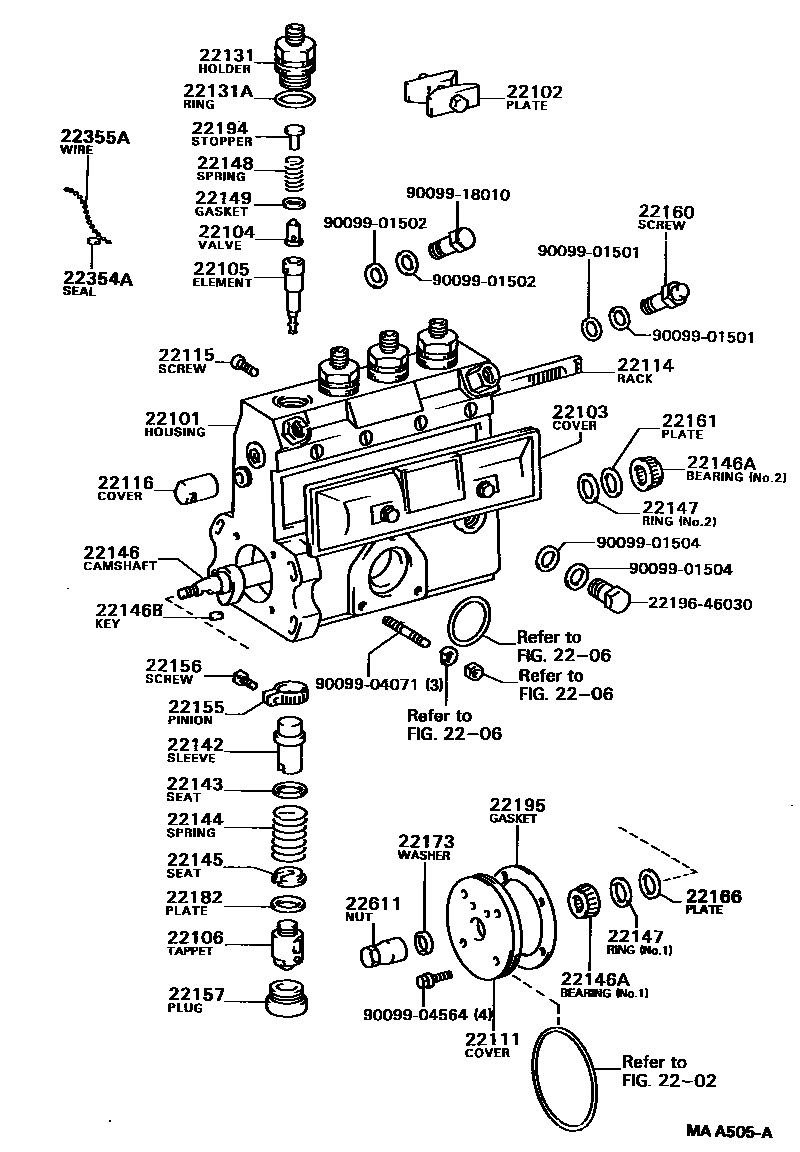

INJECTION PUMP BODY

2202

2206

22101HOUSING SUB-ASSY, INJECTION PUMP

main22190-78030i1W..WU75,9#198708-198808

sub22190-78140

22102PLATE SET, VALVE HOLDER LOCK

main22102-58230i1W..WU75,9#198708-198808

22103COVER SUB-ASSY, INJECTION PUMP

main22103-78030i1W..WU75,9#198708-198808

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-78030i1W..WU75,9#198708-198808

22105ELEMENT SUB-ASSY, INJECTION PUMP

main22105-78030i1W..WU75,9#198708-198808

subS2210-41730

22106TAPPET SUB-ASSY, INJECTION PUMP

main22106-46010i1W..WU75,9#198708-198808

22111COVER, INJECTION PUMP CAMSHAFT BEARING

main22111-78030i1W..WU75,9#198708-198808

22114RACK, CONTROL

main22114-36010i1W..WU75,9#198708-198808

22115SCREW, RACK GUIDE

main22115-77020i1W..WU75,9#198708-198808

sub22115-78140

22116COVER, CONTROL RACK

main22116-56230i1W..WU75,9#198708-198808

22131HOLDER, DELIVERY VALVE

main22131-78030i1W..WU75,9#198708-198808

22131ARING, O(FOR DELIVERY VALVE HOLDER)

main90099-14070i1W..WU75,9#198708-198808

22142SLEEVE, PLUNGER CONTROL

main22142-77020i1W..WU75,9#198708-198808

sub22142-58230

22143SEAT, SPRING UPPER

main22143-78030i1W..WU75,9#198708-198808

22144SPRING, PUMP PLUNGER

main22144-46010i1W..WU75,9#198805-198808

22145SEAT, SPRING, LOWER

main22145-78030i1W..WU75,9#198708-198808

22146CAMSHAFT, INJECTION PUMP

main22146-78040i1W..WU75,9#198708-198808

22146ABEARING(FOR INJECTION CAMSHAFT)

main90099-10087i1W..WU75,9#198708-198808

main90099-10151i1W..WU75,9#198708-198808

22146BKEY(FOR INJECTION PUMP CAMSHAFT)

main95161-20413i1W..WU75,9#198708-198808

22147RING, CAMSHAFT ADJUST

main22147-77020i1W..WU75,9#198708-198808

main22147-78030i1W..WU75,9#198708-198808

22148SPRING, DELIVERY VALVE

main22148-78030i1W..WU75,9#198708-198808

22149GASKET, DELIVERY VALVE

main22149-78030i1W..WU75,9#198708-198808

22155PINION, PLUNGER CONTROL

main22155-76010i1W..WU75,9#198708-198808

22156SCREW, PLUNGER CONTROL PINION CLAMP

main22156-76010i1W..WU75,9#198708-198808

22157PLUG, INJECTION PUMP FELT PLATE

main22157-48023i1W..WU75,9#198708-198808

22160SCREW SUB-ASSY, OVERFLOW

main22160-78030i1W..WU75,9#198708-198808

22161PLATE, CAMSHAFT SHIM

main22161-76010i1W..WU75,9#198708-198808

main22162-76010i1W..WU75,9#198708-198808

main22163-76010i1W..WU75,9#198708-198808

main22164-76010i1W..WU75,9#198708-198808

main22165-76010i1W..WU75,9#198708-198808

main22166-76010i1W..WU75,9#198708-198808

main22166-78030i1W..WU75,9#198708-198808

main22166-78031i1W..WU75,9#198708-198808

22166PLATE, CAMSHAFT SHIM

main22166-78032i1W..WU75,9#198708-198808

subS2288-51550

main22166-78033i1W..WU75,9#198708-198808

subS2288-51560

main22166-78034i1W..WU75,9#198708-198808

subS2288-51570

main22166-78035i1W..WU75,9#198708-198808

subS2288-51580

main22166-78036i1W..WU75,9#198708-198808

main22166-78037i1W..WU75,9#198708-198808

22173WASHER, SPRING

main90099-01500i1W..WU75,9#198708-198808

22182PLATE, TAPPET ADJUSTING SHIM

main22182-46010i1W..WU75,9#198708-198808

main22183-46010i1W..WU75,9#198708-198808

main22184-46010i1W..WU75,9#198708-198808

main22185-46010i1W..WU75,9#198708-198808

main22185-48010i1W..WU75,9#198708-198808

main22186-46010i1W..WU75,9#198708-198808

main22186-78030i1W..WU75,9#198708-198808

subS2288-52270

main22187-46010i1W..WU75,9#198708-198808

main22188-46010i1W..WU75,9#198708-198808

main22189-46010i1W..WU75,9#198708-198808

main22189-48031i1W..WU75,9#198708-198808

main22189-48032i1W..WU75,9#198708-198808

main22189-48033i1W..WU75,9#198708-198808

main22189-48034i1W..WU75,9#198708-198808

main22189-48035i1W..WU75,9#198708-198808

main22189-48036i1W..WU75,9#198708-198808

22194STOPPER, DELIVERY VALVE

main22194-78030i1W..WU75,9#198708-198808

22195GASKET, BEARING COVER

main22195-78030i1W..WU75,9#198708-198808

22354ASEAL, ROD

main22354-77050i1W..WU75,9#198708-198808

22355AWIRE, GOVERNOR HOUSING SEAL

main22355-78030i1W..WU75,9#198708-198808

22611NUT, TIMER ROUND

main22611-78030i1W..WU75,9#198708-198808

2219646030SCREW, FUEL INLET FOLLOW

main22196-46030

9009901501

main90099-01501

9009901502

main90099-01502

9009901504

main90099-01504

9009904071

main90099-04071

9009904564

main90099-04564

9009918010

main90099-18010

44 parts on this diagram · 1 diagram in section
