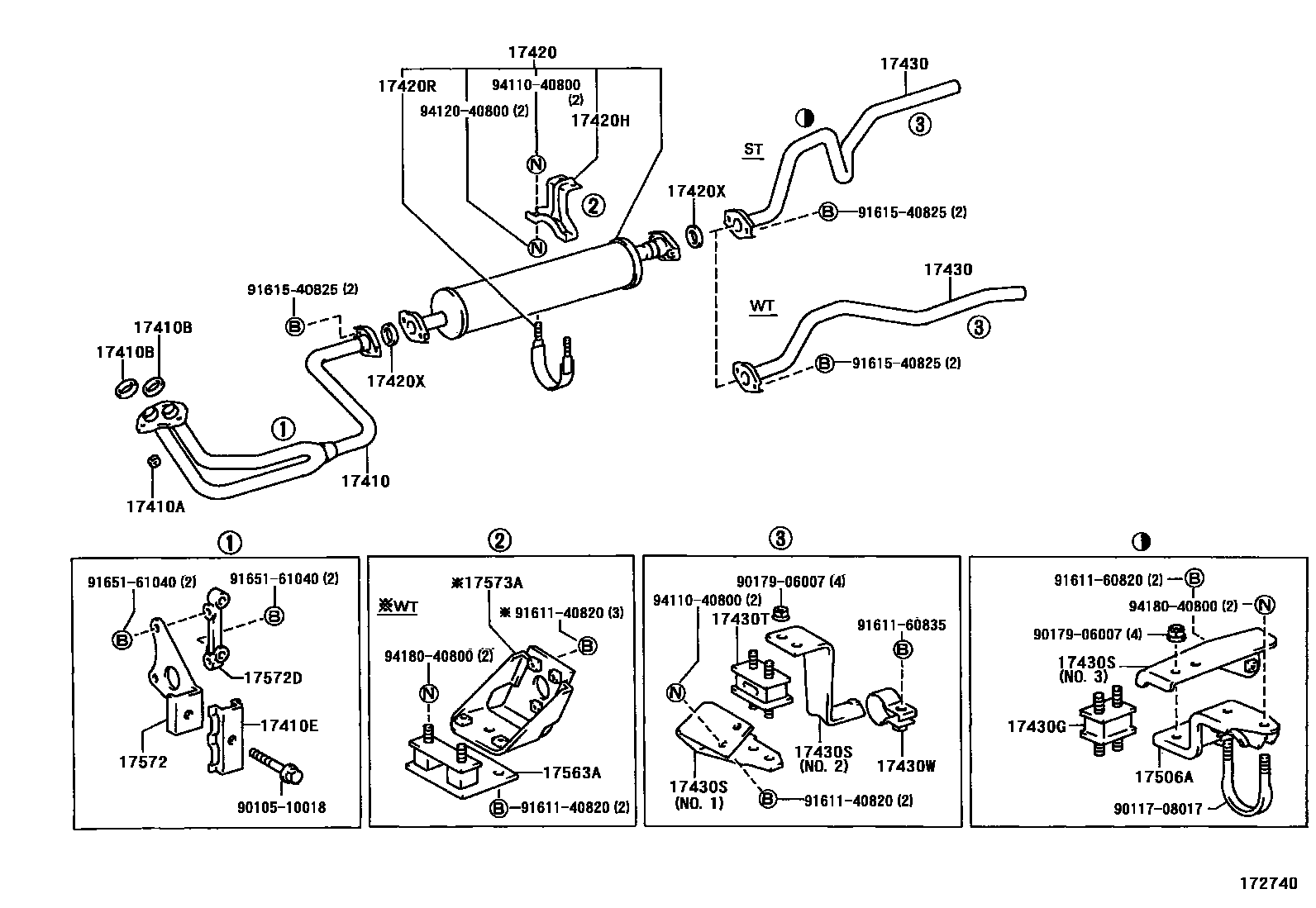

EXHAUST PIPE
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
17420HCLAMP NO.1, EXHAUST PIPE CENTER, CENTER
17420RCLAMP NO.2, EXHAUST PIPE CENTER, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
sub90917-06047
17430PIPE ASSY, EXHAUST, TAIL
17430GCUSHION, EXHAUST TAILPIPE(FOR CENTER)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
PIPE SIDE
NO.2
BODY SIDE
NO.1
NO.1
NO.3
17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)
17430WCLAMP NO.2, EXHAUST TAILPIPE (FOR REAR)
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
9010510018
main90105-10018
9011708017
main90117-08017
9017906007
main90179-06007
9161140820
main91611-40820
9161160820
main91611-60820
9161160835
main91611-60835
9161540825
main91615-40825
9165161040
main91651-61040
9411040800
main94110-40800
9412040800
main94120-40800
9418040800
main94180-40800
29 parts on this diagram · 3 diagrams in section
