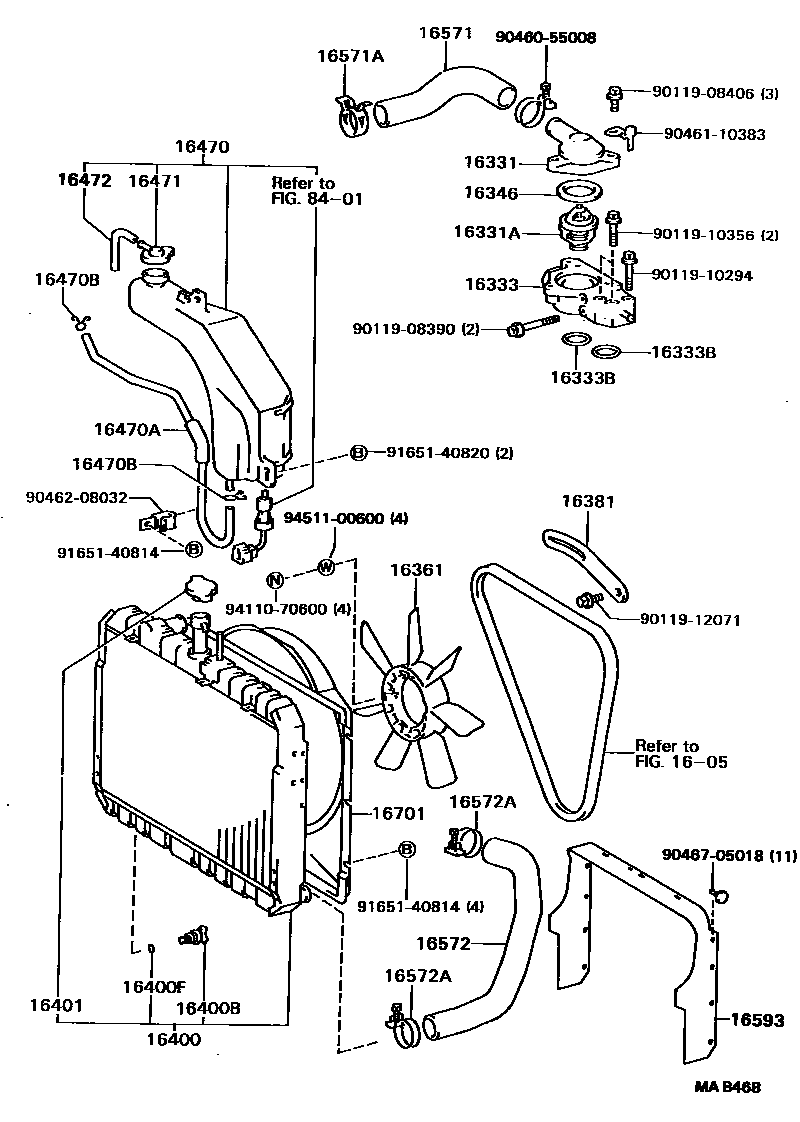

RADIATOR & WATER OUTLET

0001 1 0002 1

1605

16331OUTLET, WATER

main16331-71010i3Y..YU6#,70198708-198808

main16331-78010i1W..WU75,9#198708-198808

16331ATHERMOSTAT

main90916-03068i1W..WU75,9#198708-198808

main90916-03069i3Y..YU6#,70198708-198808

sub90916-03046

16333HOUSING, WATER OUTLET

main16303-78010i1W..WU75,9#198708-198808

subS1630-11120

16333BRING, O(FOR WATER OUTLET HOUSING)

main90301-31001i1W..WU75,9#198708-198808

sub90033-01068

16346GASKET, THERMOSTAT

main16346-78010i1W..WU75,9#198708-198808

subS1632-51280

16361FAN

main16361-38010i3Y..YU6#,70198708-198808

main16361-78010i1W..WU75,9#198708-198808

16381BAR, FAN BELT ADJUSTING

main16381-71010i3Y..YU6#,70198708-198808

main16381-78020i1W..WU75,9#198708-198808

subS1251-22390

16400RADIATOR ASSY

main16400-58142i1W..WU75,9#198708-198808

sub16400-58143

main16400-73091i3Y..YU6#,70198708-198808

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051i1W..WU75,9#198708-198808

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051i1W..WU75,9#198708-198808

16401CAP SUB-ASSY, RADIATOR

main16401-71010i1W..WU75,9#198708-198808

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16470-56121i3Y..YU6#..20T198708-198808

main16470-56130i3Y..YU60,70..SRF,TW1,TW2198708-198808

main16470-58010i1W..WU75,9#198708-198808

main16470-58020i1W..WU75,9#198708-198808

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12143i1W..WU75,9#198708-198808

main90445-12192i3Y..YU6#,70198708-198808

RADIATOR TO 2WAY

main90447-12067i3Y..YU6#..20T198708-198808

2WAY TO RESERVE TANK

main90447-12092i3Y..YU60,70..SRF,TW1,TW2198708-198808

2WAY TO RESERVE TANK

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1W..WU75,9#198708-198808

16471CAP SUB-ASSY, RESERVE TANK

main16405-56052i3Y..YU6#..20T198708-198808

main16405-56060i3Y..YU60,70..SRF,TW1,TW2198708-198808

main16405-56070i1W..WU75,9#198708-198808

16472HOSE, BREATHER

main16472-56130i3Y..YU60,70..SRF,TW1,TW2198708-198808

main16472-58010i1W..WU75,9#198708-198808

main85338-56110i3Y..YU6#..20T198708-198808

16571HOSE, RADIATOR, INLET

main16571-73040i3Y..YU6#,70198708-198808

main16571-78020i1W..WU75,9#198708-198808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i3Y..YU6#,70198708-198808

sub90467-37003

main90467-42001i1W..WU75,9#198708-198808

sub90467-41002

16572HOSE, RADIATOR, OUTLET

main16572-73030i3Y..YU6#,70198708-198808

main16572-78011i1W..WU75,9#198708-198808

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37002i3Y..YU6#,70198708-198808

sub90467-37005

main96111-10510i1W..WU75,9#198708-198808

16593GUIDE, RADIATOR AIR, NO.1

main16593-56030i3Y..YU6#,70198708-198808

main16593-58050i1W..WU75,9#198708-198808

16701SHROUD SUB-ASSY, FAN

main16701-58040i1W..WU75,9#198708-198808

main16701-73021i3Y..YU6#,70198708-198808

sub16701-73022

8401

9011908390

main90119-08390

9011908406

main90119-08406

9011910294

main90119-10294

9011910356

main90119-10356

9011912071

main90119-12071

9046055008

main90460-55008

9046110383

main90461-10383

9046208032

main90462-08032

9046705018

main90467-05018

9165140814

main91651-40814

9165140820

main91651-40820

9411070600

main94110-70600

9451100600

main94511-00600

37 parts on this diagram · 2 diagrams in section
