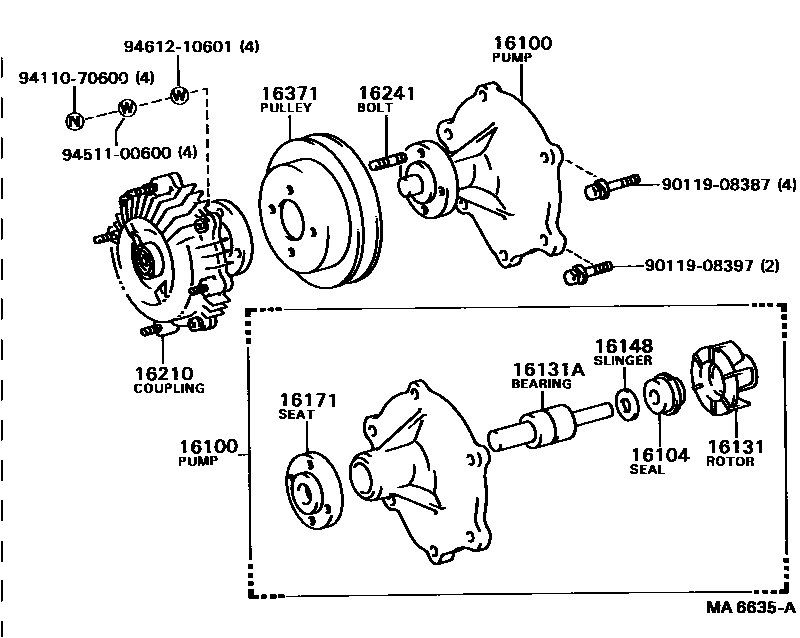

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-78010i1W..WU75,9#198708-198808

sub16100-78011

main16100-79036i3Y..YU6#,70198708-198808

sub16100-79037

16104SEAL SET, WATER PUMP

main16104-78010i1W..WU75,9#198708-198808

sub16104-78011

16131ROTOR, WATER PUMP

main16131-78010i1W..WU75,9#198708-198808

16131ABEARING, WATER PUMP

main90369-30050i1W..WU75,9#198708-198808

16148SLINGER, WATER PUMP

main16148-78010i1W..WU75,9#198708-198808

16171SEAT, WATER PUMP PULLEY

main16171-78010i1W..WU75,9#198708-198808

16210COUPLING ASSY, FLUID

main16210-73010i3Y..YU6#,70198708-198808

main16250-78020i1W..WU75,9#198708-198808

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-71010i3Y..YU6#,70198708-198808

main90116-06042i1W..WU75,9#198708-198808

16371PULLEY, FAN

main16173-78010i1W..WU75,9#198708-198808

subS1617-32110

main16371-71010i3Y..YU6#,70198708-198808

sub16371-71021

9011908387

main90119-08387

9011908397

main90119-08397

9411070600

main94110-70600

9451100600

main94511-00600

9461210601

main94612-10601

14 parts on this diagram · 2 diagrams in section
