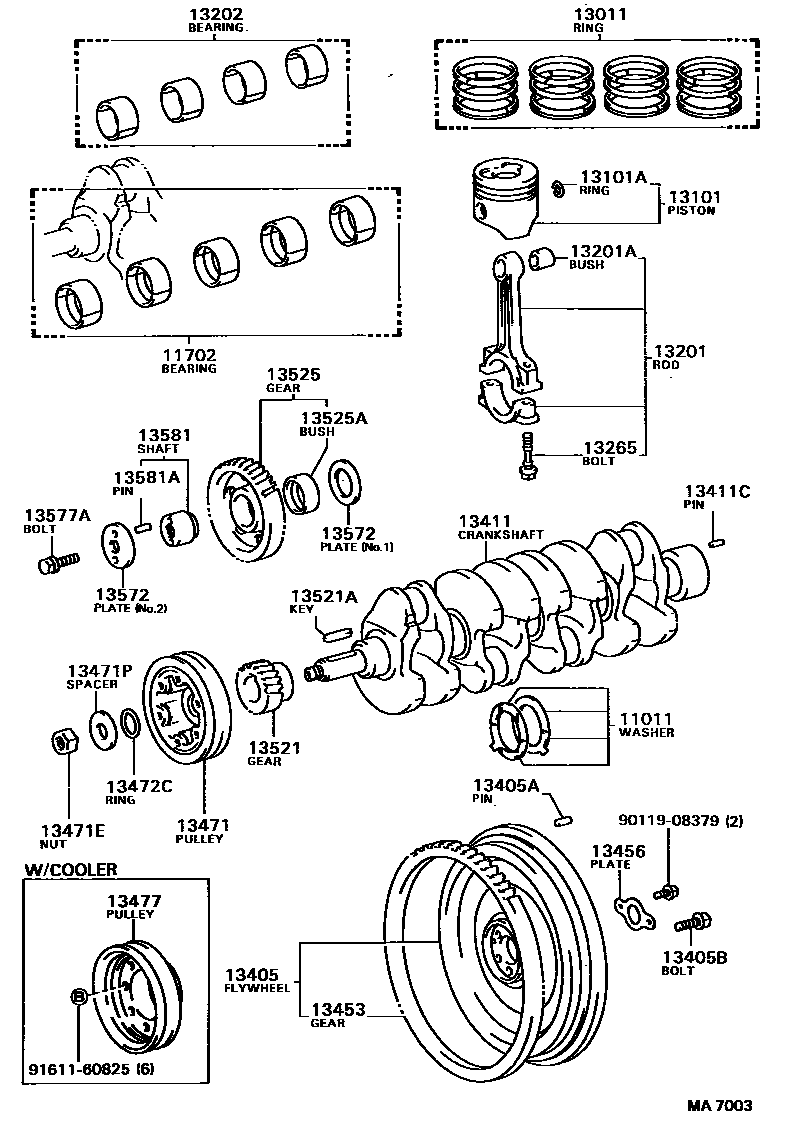

CRANKSHAFT & PISTON

0001 1 0002 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-25010i3Y..YU6#,70198708-198808

main11011-78010i1W..WU75,9#198708-198808

subS1101-11240

main11013-78010i1W..WU75,9#198708-198808

subS1101-21250

11702BEARING SET, CRANKSHAFT

main11701-78010i1W..WU75,9#198708-198808

subS1170-11611

main11704-71020i3Y..YU6#,70198708-198808

main11704-78010i1W..WU75,9#198708-198808

subS1170-31560

main11705-78010i1W..WU75,9#198708-198808

subS1170-41590

main11706-78010i1W..WU75,9#198708-198808

subS1170-51560

main11707-78010i1W..WU75,9#198708-198808

subS1170-61590

13011RING SET, PISTON

main13011-71021i3Y..YU6#,70198708-198808

sub13011-71012

main13011-78010i1W..WU75,9#198708-198808

sub13011-78070

main13013-71021i3Y..YU6#,70198708-198808

main13014-71021i3Y..YU6#,70198708-198808

main13015-71021i3Y..YU6#,70198708-198808

13101PISTON SUB-ASSY, W/PIN

main13101-73010-01i3Y..YU6#,70198802-198808

sub13101-73010

main13101-73010-02i3Y..YU6#,70198802-198808

sub13101-73010

main13101-73010-03i3Y..YU6#,70198802-198808

sub13101-73010

main13101-78020i1W..WU75,9#198708-198808

main13103-73010i3Y..YU6#,70198708-198808

main13104-73010i3Y..YU6#,70198708-198808

main13105-73010i3Y..YU6#,70198708-198808

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-38003i1W..WU75,9#198708-198808

13201ROD SUB-ASSY, CONNECTING

main13201-78010i1W..WU75,9#198708-198808

sub13260-E0062

main13201-79045i3Y..YU6#,70198708-198808

sub13201-79046

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73110i1W..WU75,9#198708-198808

13202BEARING SET, CONNECTING ROD

main13041-78010i1W..WU75,9#198708-198808

sub13041-78040

main13204-71021i3Y..YU6#,70198708-198808

sub13204-71011

main13204-78010i1W..WU75,9#198708-198808

sub13204-89105

main13205-78010i1W..WU75,9#198708-198808

sub13205-78020

main13206-78010i1W..WU75,9#198708-198808

sub13206-89103

main13207-78010i1W..WU75,9#198708-198808

sub13207-89103

13265BOLT, CONNECTING ROD

main13265-29025i3Y..YU6#,70198708-198808

main13265-78010i1W..WU75,9#198708-198808

13405FLYWHEEL SUB-ASSY

main13405-78011i1W..WU75,9#198708-198808

main13405-79065i3Y..YU6#,70198708-198808

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i3Y..YU6#,70198708-198808

main90250-10008i1W..WU75,9#198708-198808

13405BBOLT, FLYWHEEL SETTING

main90105-10042i3Y..YU6#,70198708-198808

main90105-14021i1W..WU75,9#198708-198808

13411CRANKSHAFT

main13411-73010i3Y..YU6#,70198708-198808

sub13411-73900

main13411-78010i1W..WU75,9#198708-198808

sub13411-78011

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90387-14013i1W..WU75,9#198708-198808

13453GEAR, FLYWHEEL RING

main13453-20010i3Y..YU6#,70198708-198808

main13453-78010i1W..WU75,9#198708-198808

sub13453-78011

13456PLATE, FLYWHEEL BOLT LOCK, NO.2

main13456-78010i1W..WU75,9#198708-198808

subS1345-61100

13471PULLEY, CRANKSHAFT

main13408-71010i3Y..YU6#,70198708-198808

main13470-78010i1W..WU75,9#198708-198808

sub13470-78110

13471ENUT(FOR CRANKSHAFT PULLEY)

main90170-27001i1W..WU75,9#198708-198808

13471PSPACER(FOR CRANKSHAFT PULLEY)

main90560-27006i1W..WU75,9#198708-198808

sub13478-78020

13472CRING, O(FOR CRANKSHAFT PULLEY HUB)

main90301-41003i1W..WU75,9#198708-198808

13477PULLEY, CRANKSHAFT, NO.2

main88451-28010i3Y..YU6#,70198708-198808

main88451-36070i1W..WU75,9#198708-198808

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-33010i3Y..YU6#,70198708-198808

main13521-78010i1W..WU75,9#198708-198808

sub13521-78060

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i3Y..YU6#,70198708-198808

main90281-06001i1W..WU75,9#198708-198808

13525GEAR, IDLE, NO.1

main13508-78010i1W..WU75,9#198708-198808

sub13508-E0300

13525ABUSH, IDLE GEAR

main90999-73096i1W..WU75,9#198708-198808

subSZ384-50023

13572PLATE, IDLE GEAR THRUST

main13572-78010i1W..WU75,9#198708-198808

main13573-78010i1W..WU75,9#198708-198808

subS1357-21100

13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)

main90105-14022i1W..WU75,9#198708-198808

13581SHAFT, IDLE GEAR, NO.1

main13504-78010i1W..WU75,9#198708-198808

13581APIN, STRAIGHT(FOR IDLE GEAR SHAFT)

main90250-06011i1W..WU75,9#198708-198808

9011908379

main90119-08379

9161160825

main91611-60825

31 parts on this diagram · 2 diagrams in section
