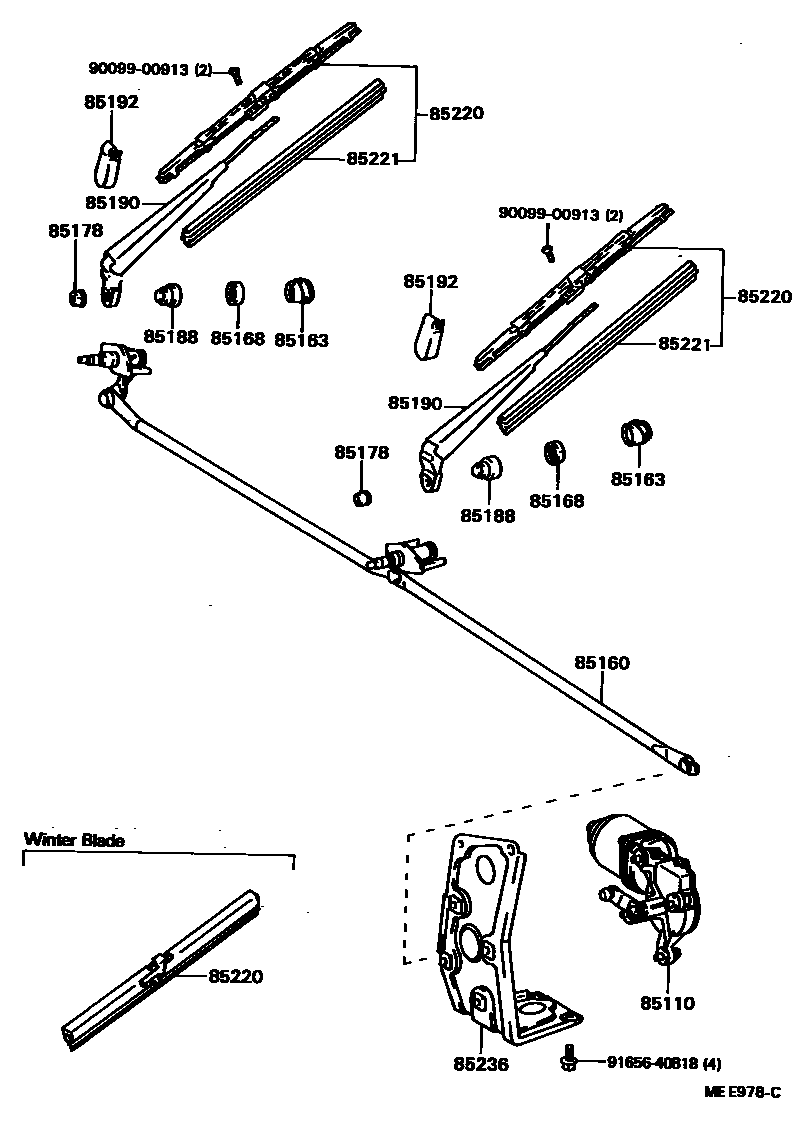

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-95431iYU60,70,80198409-198508

sub85110-95441

main85110-95435iYU60,70,80198409-198508

COLD SPEC

sub85110-95445

main85110-95438iWU75,9#198409-198508

sub85110-95448

main85110-95441iYU6#,70,80198508-198708

main85110-95445iYU6#,70,80198508-198708

COLD SPEC

main85110-95448iWU75,9#198508-198708

85160LINK ASSY, WINDSHIELD WIPER

main85160-95409iYU6#,70,80198409-198708

main85160-95411iWU75,9#198409-198708

85163PACKING, WINDSHIELD WIPER PIVOT

main85179-95400iYU6#,70,80198409-198708

85168NUT, WINDSHIELD WIPER LINK PIVOT

main85168-95700iYU6#,70,80198409-198708

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iWU75,9#198409-198708

85188CAP, WINDSHIELD WIPER PIVOT, NO.1

main85135-95700iYU6#,70,80198409-198708

85190ARM ASSY, WINDSHIELD WIPER

main85190-95417iYU6#,70,80198409-198708

RH

main85190-95419iWU75,9#198409-198708

RH

main85210-95402iYU6#,70,80198409-198708

LH

main85210-95405iWU75,9#198409-198708

CTR

main85210-95406iWU75,9#198409-198708

LH

85192COVER, WINDSHIELD WIPER ARM

main85195-95J00iYU6#,70,80198409-198708

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12560iYU6#,70,80198409-198708

LH

sub85220-12561

main85220-12570iYU6#,70,80198409-198708

RH

sub85212-37010

main85220-14170iWU75,9#198608-198708

RH,WINTER BLADE

sub85291-14010

main85220-14170iYU6#,70,80198608-198708

RH & LH,WINTER BLADE

sub85291-14010

main85220-20080iWU75,9#198409-198608

CTR & LH,WINTER BLADE

sub85220-20H90

main85220-22380iWU75,9#198409-198708

CTR

sub85222-60050

main85220-22470iWU75,9#198409-198708

LH

sub85220-22481

main85220-30110iYU6#,70,80198409-198608

RH & LH,WINTER BLADE

sub85220-20080

main85220-30110iYU6#,70,80198409-198608

RH,WINTER BLADE

sub85220-20080

main85220-90K00iWU75,9#198608-198708

CTR & LH,WINTER BLADE

sub85291-90K00

85221BLADE, WINDSHIELD WIPER

main85221-12230iWU75,9#198409-198708

RH

sub85214-12H90

main85221-12230iWU75,9#198409-198708

RH & LH

sub85214-12H90

main85221-89103iWU75,9#198409-198708

CTR & LH

sub85214-12H90

85236BRACKET, WINDSHIELD WIPER

main85269-95400iWU75,9#,YU6#,70,80198409-198708

9009900913

main90099-00913

9165640818

main91656-40818

13 parts on this diagram · 2 diagrams in section
