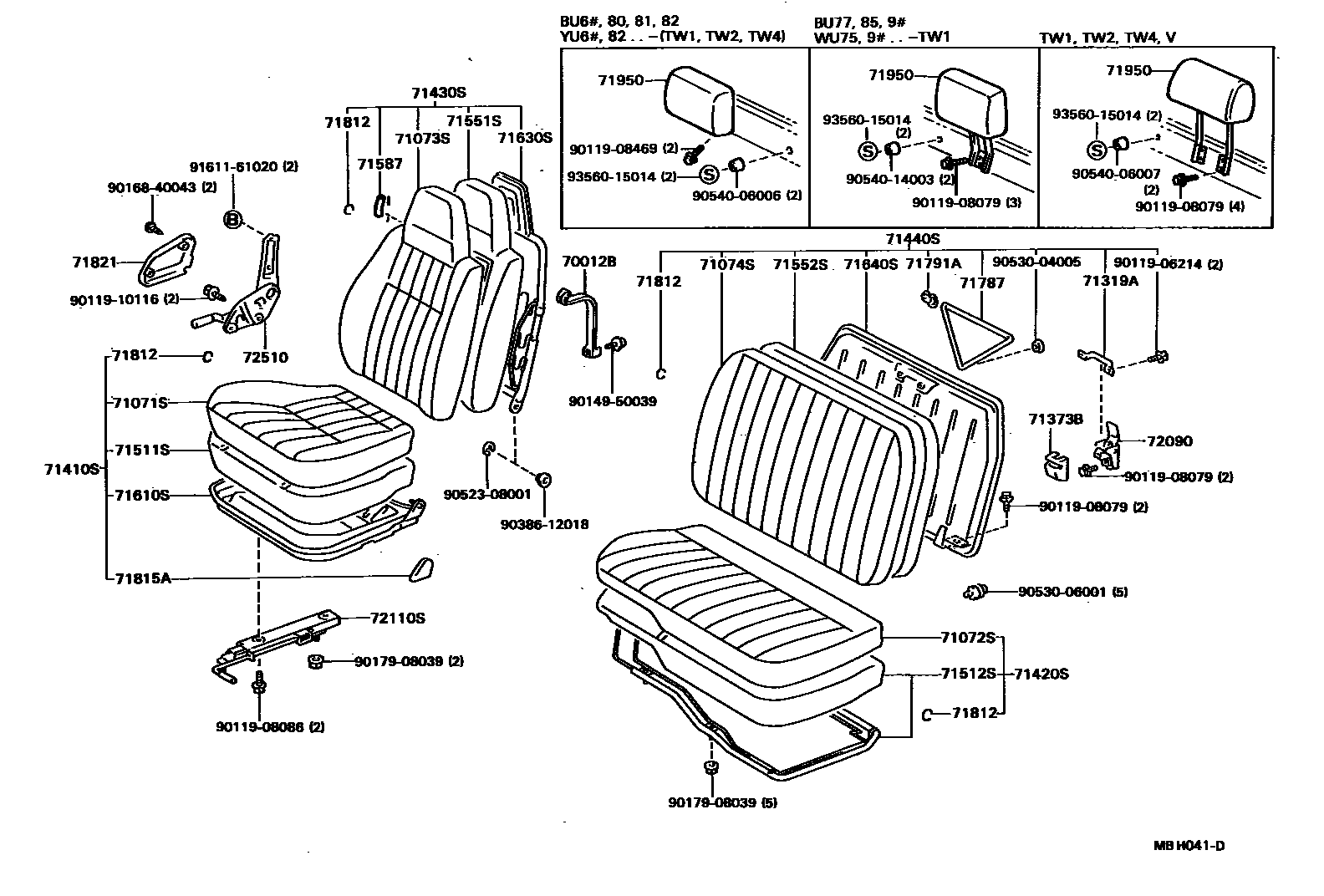

SEAT & SEAT TRACK
70012BACK ASSY, NO.1 SEAT
VL,SHADOW GRAY,SHADOW GRAY
VL,GRAY,SHADOW GRAY
70012BBAND, ENGINE SERVICE HOLE COVER SUPPORT
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
VL,BLUE,BLUE
VL,W/*SUS,BLUE,BLUE
VL,GRAY,SHADOW GRAY
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
VL,BLUE,BLUE
VL,W/*FSD,BLUE,BLUE
VL,W/*FSD,SHADOW GRAY,SHADOW GRAY
sub71072-95447
VL,BLUE,BLUE
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
VL,SHADOW GRAY,SHADOW GRAY
VL,BLUE,BLUE
VL,W/*SUS,BLUE,BLUE
VL,BLUE,BLUE
VL,GRAY,SHADOW GRAY
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
VL,BLUE,BLUE
VL,W/*FSD,SHADOW GRAY,SHADOW GRAY
sub71074-95463
VL,COLD SPEC,W/*FSD,SHADOWGRAY,GRAY
sub71074-95463
VL,BLUE,BLUE
VL,COLD SPEC,W/*FSD,GRAY,SHADOW GRAY
sub71074-95B15
VL,COLD SPEC,GRAY,SHADOW GRAY
71319ASTRIKER, FRONT SEATBACK
71373BCOVER, FRONT SEATBACK LOCK
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
VL,SHADOW GRAY,SHADOW GRAY
VL,W/*SUS,BLUE,BLUE
VL,BLUE,BLUE
VL,SHADOW GRAY,SHADOW GRAY
FB,SHADOW GRAY,GRAY
FB,BLUE,BLUE
VL,W/*SUS,SHADOW GRAY,GRAY
VL,GRAY,SHADOW GRAY
VL,W/*SUS,GRAY,SHADOW GRAY
VL,GRAY,SHADOW GRAY
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
VL,BLUE,BLUE
VL,W/*FSD,BLUE,BLUE
VL,SHADOW GRAY,SHADOW GRAY
VL,W/*FSD,SHADOW GRAY,SHADOW GRAY
VL,SHADOW GRAY,SHADOW GRAY
FB,SHADOW GRAY,SHADOW GRAY
FB,BLUE,BLUE
VL,BLUE,BLUE
VL,GRAY,SHADOW GRAY
VL,W/*FSD,GRAY,SHADOW GRAY
VL,GRAY,SHADOW GRAY
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
VL,SHADOW GRAY,SHADOW GRAY
VL,BLUE,BLUE
VL,W/*SUS,BLUE,BLUE
VL,BLUE,BLUE
VL,SHADOW GRAY,SHADOW GRAY
FB,SHADOW GRAY,SHADOW GRAY
FB,BLUE,BLUE
VL,W/*SUS,SHADOW GRAY,GRAY
VL,GRAY,SHADOW GRAY
VL,W/*SUS,GRAY,SHADOW GRAY
VL,GRAY,SHADOW GRAY
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
VL,BLUE,BLUE
VL,W/*FSD,BLUE,BLUE
VL,SHADOW GRAY,SHADOW GRAY
VL,W/*FSD,SHADOW GRAY,SHADOW GRAY
FB,SHADOW GRAY,SHADOW GRAY
FB,BLUE,BLUE
VL,SHADOW GRAY,SHADOW GRAY
VL,COLD SPEC,SHADOW GRAY,GRAY
VL,COLD SPEC,W/*FSD,SHADOWGRAY,GRAY
FB,COLD SPEC,SHADOW GRAY,GRAY
FB,COLD SPEC,BLUE,BLUE
VL,COLD SPEC,SHADOW GRAY,GRAY
VL,BLUE,BLUE
VL,COLD SPEC,BLUE,BLUE
VL,GRAY,SHADOW GRAY
VL,W/*FSD,GRAY,SHADOW GRAY
VL,GRAY,SHADOW GRAY
VL,COLD SPEC,GRAY,SHADOW GRAY
VL,COLD SPEC,W/*FSD,GRAY,SHADOW GRAY
VL,COLD SPEC,GRAY,SHADOW GRAY
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
W/*SUS
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
W/*FSD
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
W/*FSD
71587PROTECTOR, FRONT SEATBACK EDGE
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
W/*SUS
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71787BAND, FRONT SEATBACK POCKET
71791ARETAINER, FRONT SEATBACK POCKET
71812CLIP (FOR FRONT SEAT CUSHION COVER)
sub90468-18008
71815ACOVER, FRONT SEAT CUSHION HINGE, RH
71821SHIELD, FRONT SEAT SIDE, RH
71950HEADREST ASSY, FRONT SEAT
SHADOW GRAY,GRAY
BLUE,BLUE
OWNER CUSTOM,BLACK,BLACK
OWNER CUSTOM,BLUE,BLUE
72090LOCK ASSY, FRONT SEATBACK
72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72510ADJUSTER ASSY, RECLINING SEATBACK, RH
9011906214
main90119-06214
9011908079
main90119-08079
9011908086
main90119-08086
9011908469
main90119-08469
9011910116
main90119-10116
9014950039
main90149-50039
9016840043
main90168-40043
9017908039
main90179-08039
9038612018
main90386-12018
9052308001
main90523-08001
9053004005
main90530-04005
9053006001
main90530-06001
9054006006
main90540-06006
9054006007
main90540-06007
9054014003
main90540-14003
9161161020
main91611-61020
9356015014
main93560-15014
46 parts on this diagram · 4 diagrams in section
