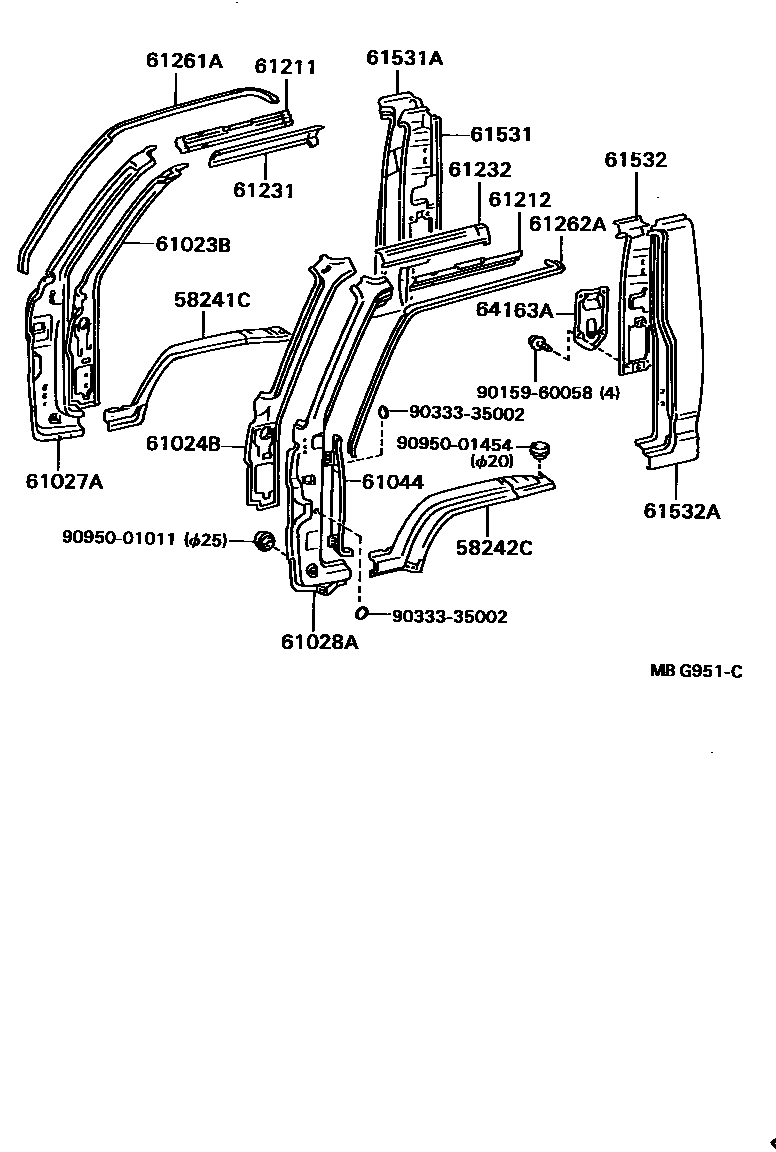

SIDE MEMBER

0001 1 0002 1 0003 1

58241CPANEL, FLOOR SIDE, RH

main58011-95444iWU75,9#,YU6#,80..03S198409-198708

sub58011-37010

main58241-92603iYU60,70..SRF,TW1,TW2198409-198708

sub58241-37020

58242CPANEL, FLOOR SIDE, LH

main58012-95440iWU75,9#,YU6#,80..03S198409-198708

sub58012-37010

main58012-95442iYU60..T3..WT..CBR..ATP198409-198708

W/FR SLIDE DOOR

sub58012-95440

main58242-92603iYU60,70..SRF,TW1,TW2198409-198708

sub58242-37030

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iWU75,9#,YU6#,70,80198409-198708

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iWU75,9#,YU6#,70,80198409-198708

sub61024-95403

main61024-95403iYU60..T3..WT..CBR..ATP198409-198708

W/FR SLIDE DOOR

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95400iWU75,9#,YU6#,70,80198508-198708

sub61027-37010

main61027-95400iWU75,9#,YU60,70,80198409-198508

W/RADIO

sub61027-37010

main61027-95401iWU75,9#,YU60,70,80..DM1,SRF,T1,T2,T3198409-198508

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95400iWU75,9#,YU6#,70,80198409-198708

sub61028-37030

main61028-95402iYU60..T3..WT..CBR..ATP198409-198708

W/FR SLIDE DOOR

sub61028-37050

61044EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main61044-95400iYU60..T3..WT..CBR..ATP198409-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iWU75,9#,YU6#,80198409-198708

LWR

main61225-92601iYU70198409-198708

UPR

sub61225-37020

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iWU75,9#,YU6#,80198409-198708

LWR

main61226-92601iYU70198409-198708

UPR

sub61226-37020

61231RAIL, ROOF SIDE, INNER RH

main61231-92601iYU60,70..SRF,TW1,TW2198409-198708

main61231-95405iWU75,9#,YU6#,80..03S198409-198708

61232RAIL, ROOF SIDE, INNER LH

main61232-92600iYU60,70..SRF,TW1,TW2198508-198708

sub61232-37030

main61232-92601iYU60,70..SRF,TW1,TW2198409-198508

main61232-95405iWU75,9#,YU60,80..03S198409-198508

sub61232-95406

main61232-95406iWU75,9#,YU6#,80..03S198508-198708

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61261-92600iYU70198409-198708

main61261-92601iYU60..175198409-198708

main61261-95404iWU75,9#,YU6#,80..03S198409-198708

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61262-92600iYU70198409-198708

main61262-92601iYU60..175198409-198708

main61262-95404iWU75,9#,YU6#,80..03S198409-198708

61531PANEL, BACK CORNER, INNER RH

main64015-95400iYU60,80..20T198409-198508

main64015-95402iWU75,9#198409-198508

main64015-95404iYU6#,80..20T198508-198708

main64015-95405iWU75,9#198508-198708

61531APANEL, BACK CORNER, OUTER RH

main64103-95401iWU75,9#,YU6#,80..03S198409-198708

sub64103-95403

61532PANEL, BACK CORNER, INNER LH

main64016-95400iYU60,80..20T198409-198508

main64016-95402iWU75,9#198409-198508

main64016-95406iYU6#,80..20T198508-198708

main64016-95407iWU75,9#198508-198708

61532APANEL, BACK CORNER, OUTER LH

main64104-95401iWU75,9#,YU6#,80..03S198409-198708

sub64104-95403

64163ACOVER, BACK CORNER, INNER

main64163-87302iYU60,70..SRF,TW1,TW2198412-198508

main64163-87303iYU60..175198508-198708

main64163-95403iWU75,9#,YU60,70,80198409-198508

main64163-95404iWU75,9#,YU6#,80..03S198508-198708

9015960058

main90159-60058

9033335002

main90333-35002

9095001011

main90950-01011

9095001454

main90950-01454

22 parts on this diagram · 3 diagrams in section
