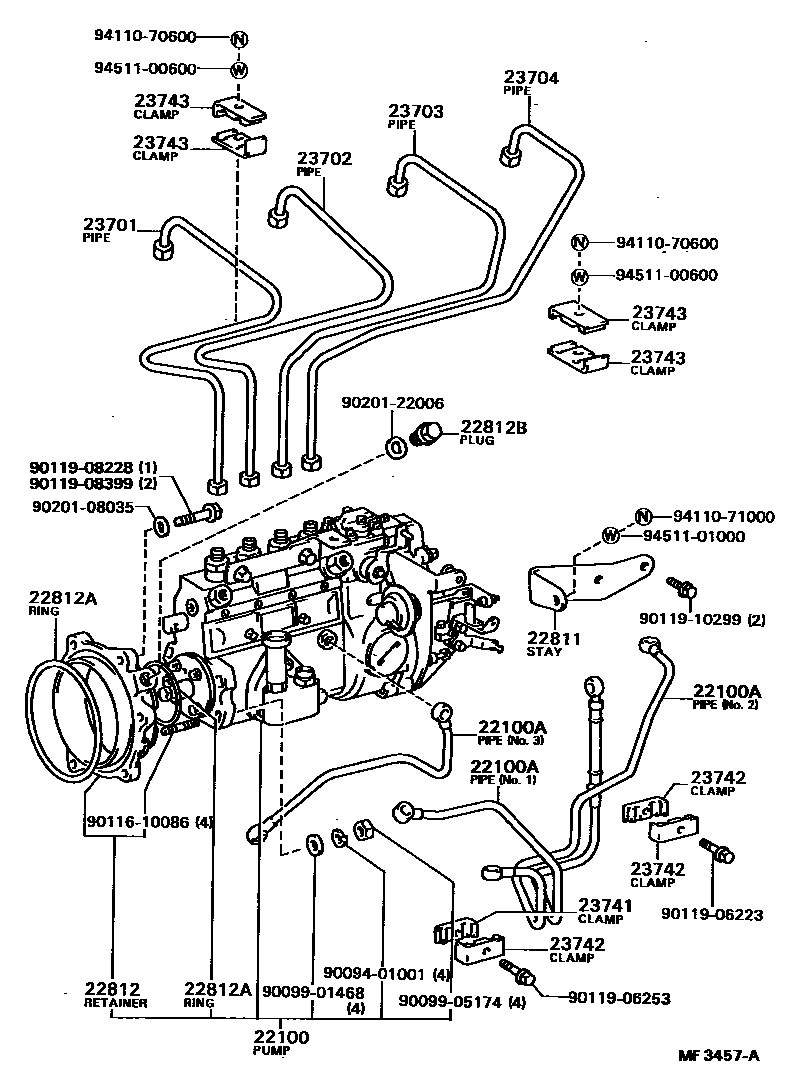

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22010-78050i1W..WU75,9#198409-198511

main22010-78051i1W..WU75,9#198511-198603

main22010-78052i1W..WU75,9#198603-198708

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23814-78010i1W..WU75,9#198409-198708

MAIN HOSE TO FEED PUMP

sub23814-78011

main23815-78010i1W..WU75,9#198409-198708

FEED PUMP TO FILTER

main23826-78010i1W..WU75,9#198409-198708

FILTER TO INJECTION PUMP

subS2380-64180

22811STAY, INJECTION PUMP, NO.1

main22811-78010i1W..WU75,9#198409-198708

subS2234-32060

22812RETAINER, INJECTION PUMP

main22802-78010i1W..WU75,9#198409-198708

22812ARING, O

main90099-14072i1W..WU75,9#198409-198708

INJECTION PUMP SIDE

main90301-99019i1W..WU75,9#198409-198708

CASE SIDE

subSZ301-01015

22812BPLUG, W/HEAD STRAIGHT SCREW(FOR INJECTION PUMP RETAINER)

main90341-22002i1W..WU75,9#198409-198708

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-78010i1W..WU75,9#198409-198708

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-78010i1W..WU75,9#198409-198708

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-78010i1W..WU75,9#198409-198708

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-78010i1W..WU75,9#198409-198708

23741CLAMP, INJECTION PIPE, NO.1

main90929-01058i1W..WU75,9#198409-198708

subS7990-41900

23742CLAMP, INJECTION PIPE, NO.2

main90929-01057×3i1W..WU75,9#198409-198708

subS7990-41940

23743CLAMP, INJECTION PIPE, NO.3

main90929-01056×4i1W..WU75,9#198409-198708

subS7990-41930

9009401001

main90094-01001

9009901468

main90099-01468

9009905174

main90099-05174

9011610086

main90116-10086

9011906223

main90119-06223

9011906253

main90119-06253

9011908228

main90119-08228

9011908399

main90119-08399

9011910299

main90119-10299

9020108035

main90201-08035

9020122006

main90201-22006

9411070600

main94110-70600

9411071000

main94110-71000

9451100600

main94511-00600

9451101000

main94511-01000

28 parts on this diagram · 1 diagram in section
