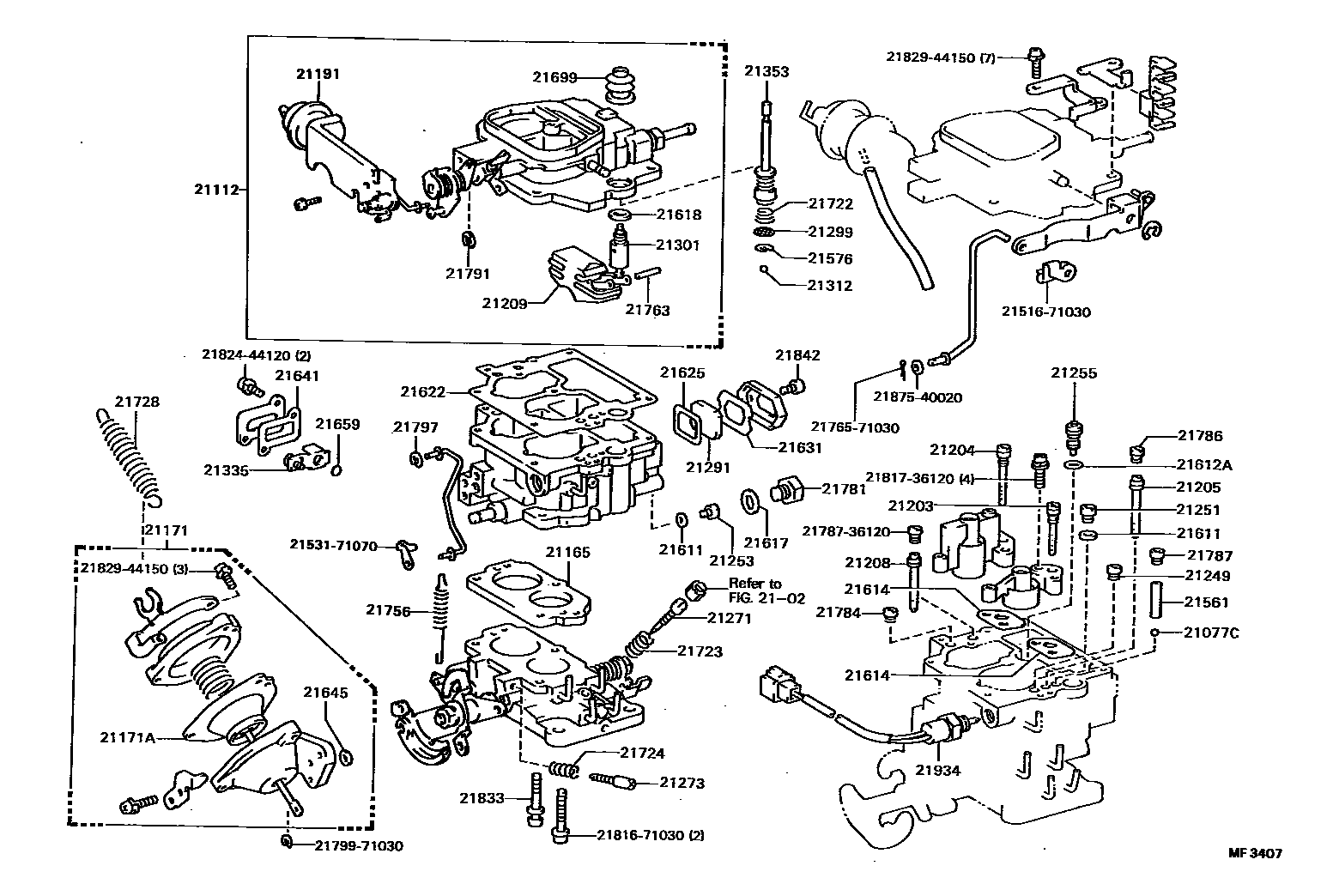

CARBURETOR
2102
21077CBALL, STEEL(FOR AUXILIARY ACCELERATION PUMP)
21112HORN, AIR
21165INSULATOR
sub21106-72250
21171CHAMBER, DIAPHRAGM
21171ADIAPHRAGM(FOR DIDPHRAGM CHAMBER)
21191OPENER
21203BLEEDER SUB-ASSY, 1ST MAIN AIR
21204BLEEDER SUB-ASSY, 2ND MAIN AIR
21205JET SUB-ASSY, SLOW
21208JET SUB-ASSY, STEP
21209FLOAT SUB-ASSY
21249JET, AIR BLEED, NO.2
21251JET, 1ST MAIN
21253JET, 2ND MAIN
21255JET, POWER
21271SCREW, IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21291GLASS, LEVEL GAGE
21299NET, PUMP FILTER
21301VALVE SUB-ASSY, NEEDLE
21312BALL, STEEL
21335VALVE, THERMOSTATIC
21353PLUNGER, PUMP
21561WEIGHT, PUMP DISCHARGE
21576CLIP, PUMP STRAINER
21611GASKET, MAIN JET
21612AGASKET, POWER JET
21614GASKET, VENTURI
sub21614-72250
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21622GASKET, AIR HORN
sub21622-71060
21625GASKET, LEVEL GAGE
21631GASKET, MAIN GUIDE
21641GASKET(FOR THERMOSTATIC VALVE COVER)
21645GASKET, DIAPHRAGM, CAP
21659RING, O(FOR THERMOSTATIC VALVE)
21699BOOT(FOR PUMP PLUNGER)
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21728SPRING, THROTTLE VALVE RETURN
sub21728-73190
21756SPRING, BACK(FOR THROTTLE SHAFT)
21763PIN, FLOAT LEVER
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21784PLUG, SLOW PASSAGE
21786PLUG, PUMP PASSAGE
21787PLUG, PUMP JET
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
21797RING, SNAP, NO.4(FOR CARBURETOR LINK)
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21934SOLENOID, THROTTLE VALVE
2151671030CLAMP, CONNECTOR
main21516-71030
2153171070RETAINER, COIL HOUSING
main21531-71070
2176571030PIN(FOR PUMP PLUNGER)
main21765-71030
2178736120PLUG, PUMP JET
main21787-36120
2179971030RING, E, TOP
main21799-71030
2181671030SCREW, SMALL VENTURI SET, NO.1
main21816-71030
2181736120
main21817-36120
2182444120SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
main21824-44120
2182944150SCREW, HIGH SPEED VALVE SET
main21829-44150
2187540020WASHER, THROTTLE OPENER ARM
main21875-40020
63 parts on this diagram · 1 diagram in section
