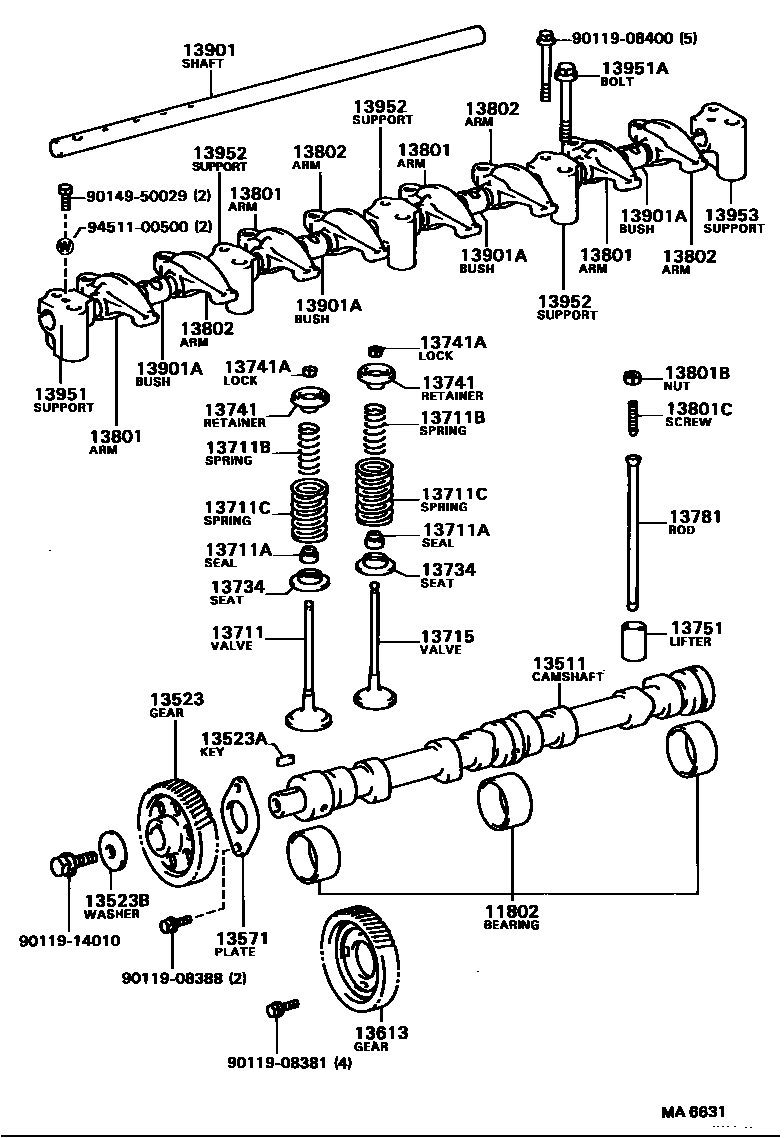

CAMSHAFT & VALVE

0001 1 0002 1

11802BEARING SET, CAMSHAFT

main11801-78010i1W..WU75,9#198409-198708

sub11811-78040

sub11821-78020

sub11831-78020

main11802-71010i3Y#..YU6#,70,80198409-198708

sub11802-73010

13511CAMSHAFT

main13501-78010i1W..WU75,9#198409-198708

sub13501-78090

main13511-73900i3Y#..YU6#,70,80198409-198708

sub13511-73902

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i3Y#..YU6#,70,80198409-198708

main13523-78010i1W..WU75,9#198409-198708

sub13523-78020

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05010i3Y#..YU6#,70,80198409-198609

main90281-07001i1W..WU75,9#198409-198708

subSM172-00720

main95161-10519i3Y#..YU6#,70,80198609-198708

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-14293i3Y#..YU6#,70,80198409-198708

main90201-15010i1W..WU75,9#198409-198708

13571PLATE, CAMSHAFT THRUST

main13571-67010i1W..WU75,9#198409-198708

main13571-71010i3Y#..YU6#,70,80198409-198708

13613GEAR, INJECTION PUMP DRIVE

main13613-78010i1W..WU75,9#198409-198708

subS1361-31280

13711VALVE, INTAKE

main13711-71010×4i3Y#..YU6#,70,80198409-198708

main13711-78010×4i1W..WU75,9#198409-198708

subS1371-11443

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02047×8i1W..WU75,9#198409-198708

sub90038-12006

main90913-02065×8i3Y#..YU6#,70,80198409-198708

sub90913-02073

13711BSPRING, COMPRESSION(FOR INNER)

main90501-26029×8i1W..WU75,9#198409-198708

sub90035-01055

main90501-47005×8i3Y#..YU6#,70,80198409-198708

sub90501-46001

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-44003×8i1W..WU75,9#198409-198708

sub90035-01054

13715VALVE, EXHAUST

main13715-71010×4i3Y..YU6#,70198409-198708

main13715-72020×4i3YP..YU60,80198409-198708

main13715-78010×4i1W..WU75,9#198409-198708

subS1371-51251

13734SEAT, VALVE SPRING

main13734-78010×8i1W..WU75,9#198409-198708

subS1373-41140

13741RETAINER, VALVE SPRING

main13741-63010×8i3Y#..YU6#,70,80198409-198708

main13741-78010×8i1W..WU75,9#198409-198708

sub13741-78020

13741ALOCK, VALVE SPRING RETAINER

main90913-03014×16i3Y#..YU6#,70,80198409-198708

main90913-03023×16i1W..WU75,9#198409-198708

sub90038-13005

13751LIFTER, VALVE

main13750-71010×8i3Y#..YU6#,70,80198409-198708

sub13750-71020

main13751-78010×8i1W..WU75,9#198409-198708

sub13751-E0040

13781ROD, VALVE PUSH

main13781-73010×8i3Y#..YU6#,70,80198409-198708

main13781-78010×8i1W..WU75,9#198409-198708

sub13783-78020

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-71010×4i3Y#..YU6#,70,80198409-198708

main13811-78011×4i1W..WU75,9#198409-198708

sub13811-E0090

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08013×8i1W..WU75,9#198409-198708

sub90031-78087

13801CSCREW, VALVE ADJUSTING

main13788-78011×8i1W..WU75,9#198409-198708

subS1378-71161

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13812-71010×4i3Y#..YU6#,70,80198409-198708

main13812-78010×4i1W..WU75,9#198409-198708

sub13811-E0100

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-71010i3Y#..YU6#,70,80198409-198708

main13901-78010i1W..WU75,9#198409-198708

subS1390-11190

13901ABUSH(FOR VALVE ROCKER SHAFT)

main90387-19001×4i1W..WU75,9#198409-198708

13951SUPPORT, VALVE ROCKER, NO.1

main13951-78010i1W..WU75,9#198409-198708

sub13951-E0060

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-12074×5i1W..WU75,9#198409-198708

*12-1.5PX165-27

sub90031-01200

13952SUPPORT, VALVE ROCKER, NO.2

main13952-78010×3i1W..WU75,9#198409-198708

sub13951-E0070

13953SUPPORT, VALVE ROCKER, NO.3

main13953-78010i1W..WU75,9#198409-198708

sub13951-E0080

9011908381

main90119-08381

9011908388

main90119-08388

9011908400

main90119-08400

9011914010

main90119-14010

9014950029

main90149-50029

9451100500

main94511-00500

33 parts on this diagram · 2 diagrams in section
