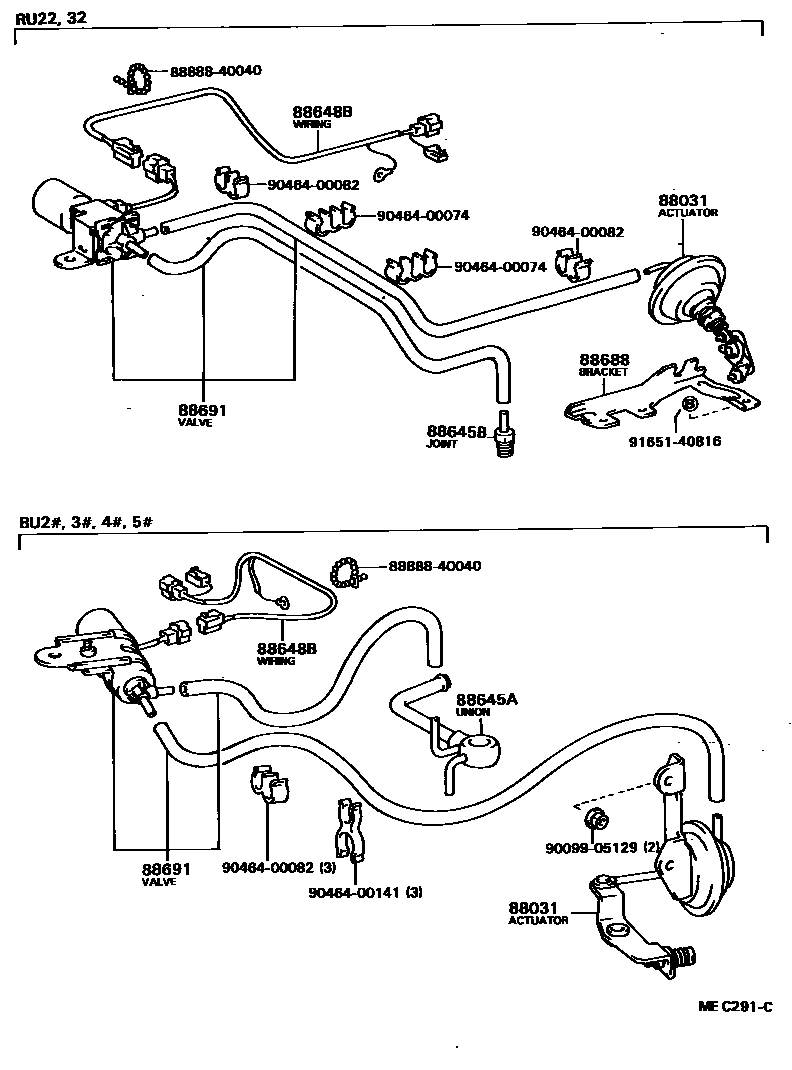

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88031ACTUATOR SET, IDLE-UP

main88031-35060iRU22,32198204-198408

main88031-89010iWU26,40,50198304-198408

88645AUNION (FOR IDLE UP DEVICE)

88645BJOINT, NO.1 (FOR IDLE UP DIVICE)

main90413-04001iWU26,40,50198304-198408

main90464-00074iRU22,32198204-198408

88648BWIRING, COOLER, NO.1

main88648-95012iRU22,32198204-198408

main88648-95405iWU26,40,50198304-198408

88688BRACKET, COOLER DIAPHRAGM

main88688-95012iRU22,32198204-198408

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-95402iRU22,32198204-198408

main88690-95405iWU26,40,50198304-198408

8888840040BAND (FOR COOLER COMPRESSOR)

main88888-40040

9009905129

main90099-05129

9046400074

main90464-00074

9046400082

main90464-00082

9046400141

main90464-00141

9165140816

main91651-40816

12 parts on this diagram · 2 diagrams in section
