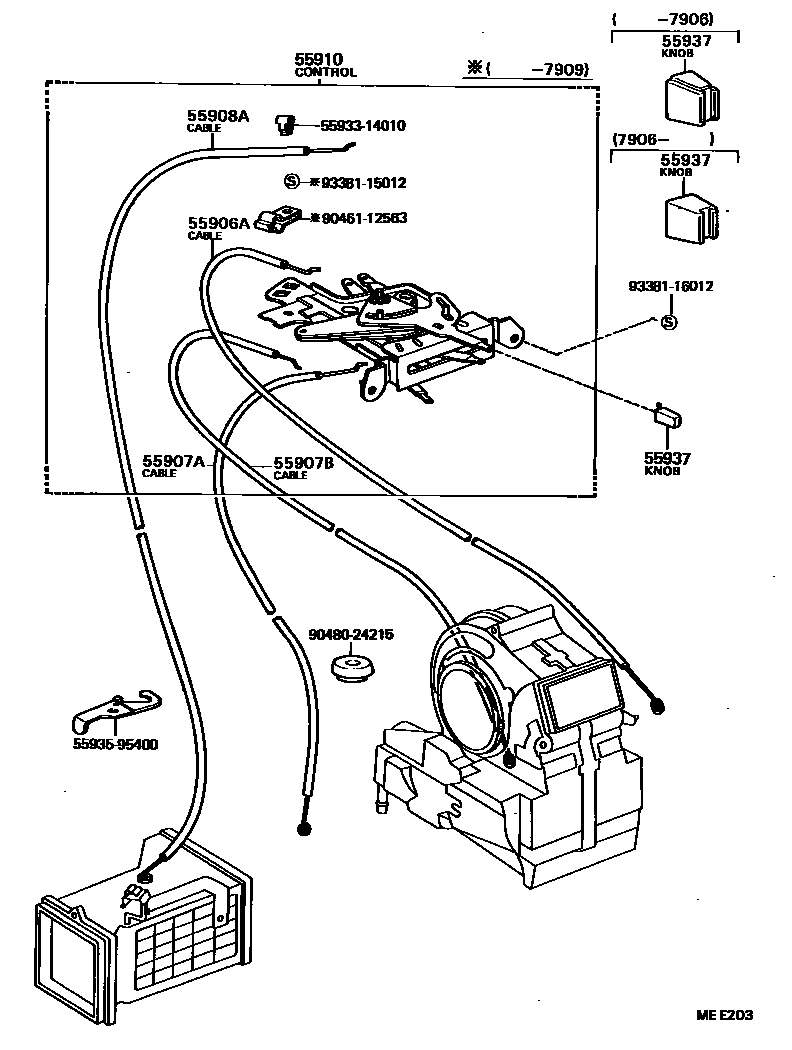

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-95401iHU26,30,40,50,JU20,RU2#,3#,WU26,40,50197708-198408

L=685

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-95400iHU30,JU20,RU20,30197708-198408

L=835

main55907-95403iHU26,40,50,WU26,40,50198204-198408

L=865

55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL

main55909-95400iHU26,30,40,50,JU20,RU2#,3#,WU26,40,50197708-198408

L=395

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-95400iRU2#,3#197708-198408

L=935

main55908-95401iHU26,40,50,WU26,40,50198008-198408

L=1214

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-95013iHU26,40,50,RU2#,3#,WU26,40,50198008-198408

main55910-95401iHU30,JU20,RU20,30197708-197906

main55910-95403iHU30,JU20,RU20,30197906-198008

55937KNOB, HEATER CONTROL LEVER

main55905-12070iHU26,40,50,RU2#,3#,WU26,40,50198008-198408

main55905-20120iHU30,JU20,RU20,30197708-197906

main55905-20140iHU30,JU20,RU20,30197906-198008

sub55905-12070

5593314010GUIDE, LEVER, NO.2

main55933-14010

5593595400BRACKET

main55935-95400

9046112563

main90461-12563

9048024215

main90480-24215

9338115012

main93381-15012

9338116012

main93381-16012

12 parts on this diagram · 5 diagrams in section
