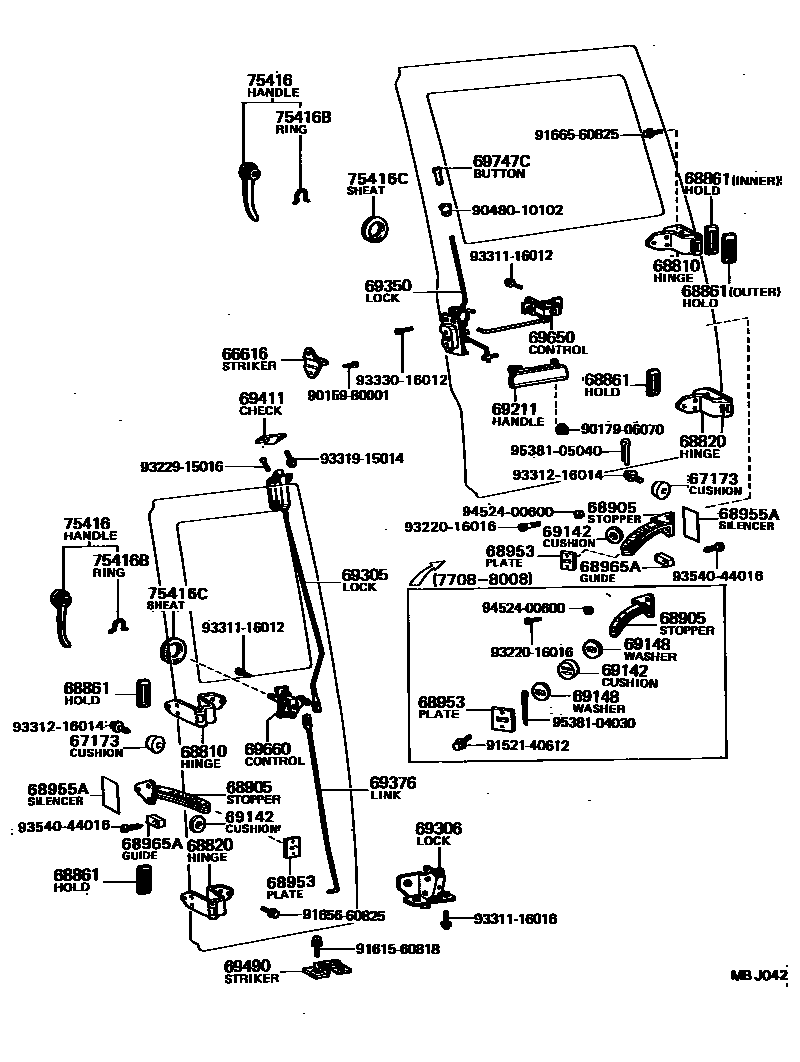

BACK DOOR LOCK & HINGE

66616STRIKER, TAIL GATE LOCK

main69410-95010iRU2#..SRF197708-198408

sub69410-37010

67173CUSHION, BACK DOOR

main67173-92605iRU2#..SRF198008-198408

68810HINGE ASSY, BACK DOOR, UPPER

main68011-92605iRU2#..SRF198108-198408

main68801-92602iRU22..SRF198408-198408

main68801-92605iRU20..SRF197708-198008

main68801-92606iRU20..SRF198008-198108

sub68011-92605

68820HINGE ASSY, BACK DOOR, LOWER

main68013-92605iRU2#..SRF198108-198408

main68803-92601iRU22..SRF198408-198408

main68803-92605iRU20..SRF197708-198008

main68803-92606iRU20..SRF198008-198108

sub68013-92605

68861HOLD, BACK DOOR HINGE

main68861-92601iRU22..SRF198408-198408

INNER

main68861-92605iRU2#..SRF197708-198408

INNER

main68862-92605iRU2#..SRF197708-198408

OUTER

main68863-92600iRU22..SRF198408-198408

OUTER

68905STOPPER SUB-ASSY, BACK DOOR OPEN

main68905-92606iRU20..SRF197708-198008

main68905-92607iRU2#..SRF198008-198408

68953PLATE, BACK DOOR OPEN STOPPER ARM GUIDE

main68953-92605iRU20..SRF197708-197802

sub68954-92605

main68953-92605iRU2#..SRF197802-198408

RH

sub68954-92605

main68954-92605iRU2#..SRF197802-198408

LH

68955ASILENCER, BACK DOOR OPEN STOPPER

main68955-92605iRU2#..SRF198008-198408

68965AGUIDE, BACK DOOR OPEN STOPPER

main68965-92605iRU2#..SRF198008-198408

69142CUSHION, DOOR OPEN STOPPER

main69142-92605iRU20..SRF197708-198008

main69142-92606iRU2#..SRF198008-198408

69148WASHER, DOOR OPEN STOPPER

main69148-92600iRU20..SRF197708-198008

69211HANDLE, BACK DOOR OUTSIDE, RH

main69210-95403iRU2#..SRF197708-198408

69305LOCK SUB-ASSY, BACK DOOR, UPPER

main69370-92605iRU2#..SRF197708-198408

69306LOCK SUB-ASSY, BACK DOOR, LOWER

main69350-95A00iRU2#..SRF197708-198408

69350LOCK ASSY, BACK DOOR

main69330-92605iRU2#..SRF197708-198408

69376LINK, BACK DOOR LOCK

main69375-92605iRU2#..SRF197708-198408

69411CHECK, BACK DOOR

main69431-92605iRU2#..SRF197708-198408

69490STRIKER ASSY, BACK DOOR LOCK

main69450-95A00iRU2#..SRF197708-198408

69650CONTROL ASSY, BACK DOOR LOCK REMOTE, RH

main69650-92605iRU2#..SRF197708-198408

69660CONTROL ASSY, BACK DOOR LOCK REMOTE, LH

main69660-92605iRU20..SRF197708-198012

main69660-92606iRU2#..SRF198012-198408

W/CHILD PROTECTOR

69747CBUTTON, DOOR LOCKING(FOR BACK DOOR)

main69747-20020iRU2#..SRF197708-198408

75416HANDLE, TAIL GATE, INSIDE

main69271-95110iRU2#..SRF197708-198408

75416BRING, SNAP (FOR BACK DOOR INSIDE HANDLE)

main90520-01192iRU2#..SRF197708-198408

75416CSHEET(FOR BACK DOOR INSIDE HANDLE)

main69171-95110iRU2#..SRF197708-198408

9015980001

main90159-80001

9017906070

main90179-06070

9048010102

main90480-10102

9152140612

main91521-40612

9161560818

main91615-60818

9165660825

main91656-60825

9166560825

main91665-60825

9322016016

main93220-16016

9322915016

main93229-15016

9331116012

main93311-16012

9331116016

main93311-16016

9331216014

main93312-16014

9331915014

main93319-15014

9333016012

main93330-16012

9354044016

main93540-44016

9452400600

main94524-00600

9538104030

main95381-04030

9538105040

main95381-05040

42 parts on this diagram · 1 diagram in section
