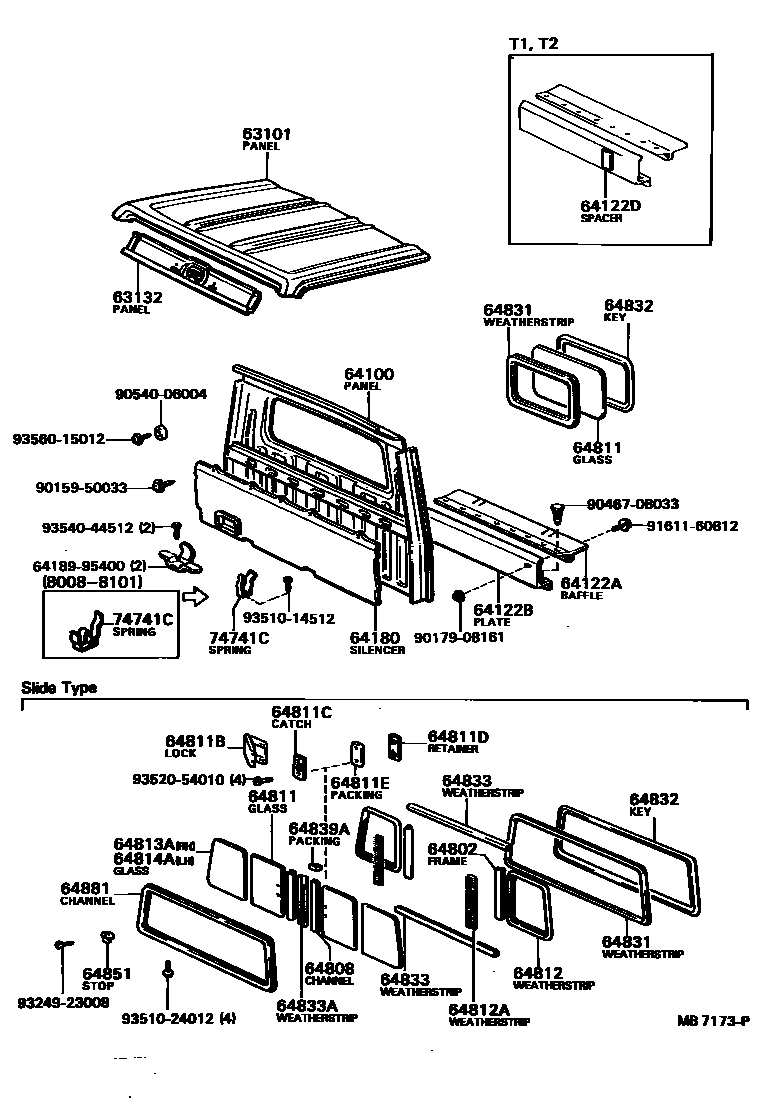

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

63101PANEL SUB-ASSY, ROOF

main63111-95406iRU22..03S..WT;RU22..ST..20T;RU20..KKT..BTP;HU30,JU20,RU20,3#..20T,30T197708-198408

main63111-95407iJU20,RU2#,30..TR..06S197708-198408

main63111-95408iHU26,40,50,WU26,40,50198008-198408

63132PANEL, WINDSHIELD HEADER, INNER

main63103-95409iHU26,40,50,WU26,40,50198008-198408

main63103-95410iHU26,40,50,WU26,40,50198008-198408

CUSTOM PACK SPEC

main63132-95411iHU30,JU20,RU2#,3#197708-198408

sub63132-95412

sub90950-06047

64100PANEL ASSY, BACK, OUTER

main64100-95430iHU26,40,50198204-198206

sub64100-95431

main64100-95431iHU26,40,50,WU26,40,50198206-198408

main64101-95402iRU2#..TR..06S198008-198408

64122ABAFFLE, DUST REAR BODY

main64122-95402iRU22..03S..WT;RU22..ST..20T;RU20..KKT..BTP;HU30,JU20,RU20,3#..20T,30T197708-198408

main64122-95403iJU20,RU2#,30..TR..06S197810-198408

main64122-95404iHU26,40,50,WU26,40,50198008-198408

64122BPLATE, BAFFLE DUST REAR BODY

main64127-95402iJU20,RU2#,30..T1,T2197904-198408

64122DSPACER, BAFFLE DUST REAR BODY PLATE

main53817-95A00iRU22..T1,T2198204-198408

64180SILENCER ASSY, BACK PANEL

main64180-95400iRU20..KKT..BTP;HU30,JU20,RU20,30..20T,30T197708-198408

main64180-95406iHU26,40,50,WU26,40,50198204-198408

sub64190-37070

64802FRAME SUB-ASSY, BACK WINDOW FIX

main64882-95400iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64883-95400iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE

64811GLASS, BACK WINDOW

main64811-95404iRU22..03S..WT;RU22..ST..20T;RU20..KKT..BTP;HU30,JU20,RU20,3#..20T,30T197708-198408

*TEM,T=4.0

main64811-95405iJU20,RU2#,30..TR..06S197708-198408

*TEM,T=4.0

main64812-95402iHU26,40,50,WU26,40,50198204-198408

sub64811-37050

64811BLOCK ASSY, BACK WINDOW

main69370-89101iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE

64811CCATCH, BACK WINDOW LOCK

main69374-89101iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE

64811DRETAINER, BACK WINDOW

main69375-89102iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE

64811EPACKING, BACK WINDOW LOCK

main69376-89101iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE

64812WEATHERSTRIP, BACK WINDOW GLASS, NO.1

main64837-95400iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE

64812AWEATHERSTRIP, BACK WINDOW GLASS, NO.2

main64832-95400iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE

sub64834-37010

64813AGLASS, BACK WINDOW CORNER, RH

main64814-95400iHU26,40,50,WU26,40,50198204-198408

sub64814-37010

64814AGLASS, BACK WINDOW CORNER, LH

main64814-95400iHU26,40,50,WU26,40,50198204-198408

sub64814-37010

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95015iRU22..03S..WT;RU22..ST..20T;RU20..KKT..BTP;HU30,JU20,RU20,3#..20T,30T197708-198408

main64831-95016iJU20,RU2#,30..TR..06S197708-198408

sub64831-37050

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iRU22..03S..WT;RU22..ST..20T;RU20..KKT..BTP;HU30,JU20,RU20,3#..20T,30T197708-198408

sub64832-95013

main64832-95013iJU20,RU2#,30..TR..06S197708-198408

sub64832-37040

64833WEATHERSTRIP, BACK WINDOW CHANNEL

main64831-95404iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE,UPR

main64834-95400iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE,LWR

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-95400iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE

64839APACKING, BACK WINDOW

main64839-89101iHU26,40,50,WU26,40,50198204-198408

64851STOP, BACK WINDOW SLIDE GLASS

main64851-95400iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE

64881CHANNEL, BACK WINDOW GLASS

main64881-95400iHU26,40,50,WU26,40,50198204-198408

SLIDE TYPE

74741CSPRING, STARTING HANDLE SUPPORT

main74741-95406iHU26,40,50,WU26,40,50198101-198408

6418995400CLAMP, BACK PANEL SILENCER

main64189-95400

9015950033

main90159-50033

9017908161

main90179-08161

9046708033

main90467-08033

9054006004

main90540-06004

9161160812

main91611-60812

9324923008

main93249-23008

9351014512

main93510-14512

9351024012

main93510-24012

9352054010

main93520-54010

9354044512

main93540-44512

9356015012

main93560-15012

38 parts on this diagram · 3 diagrams in section
