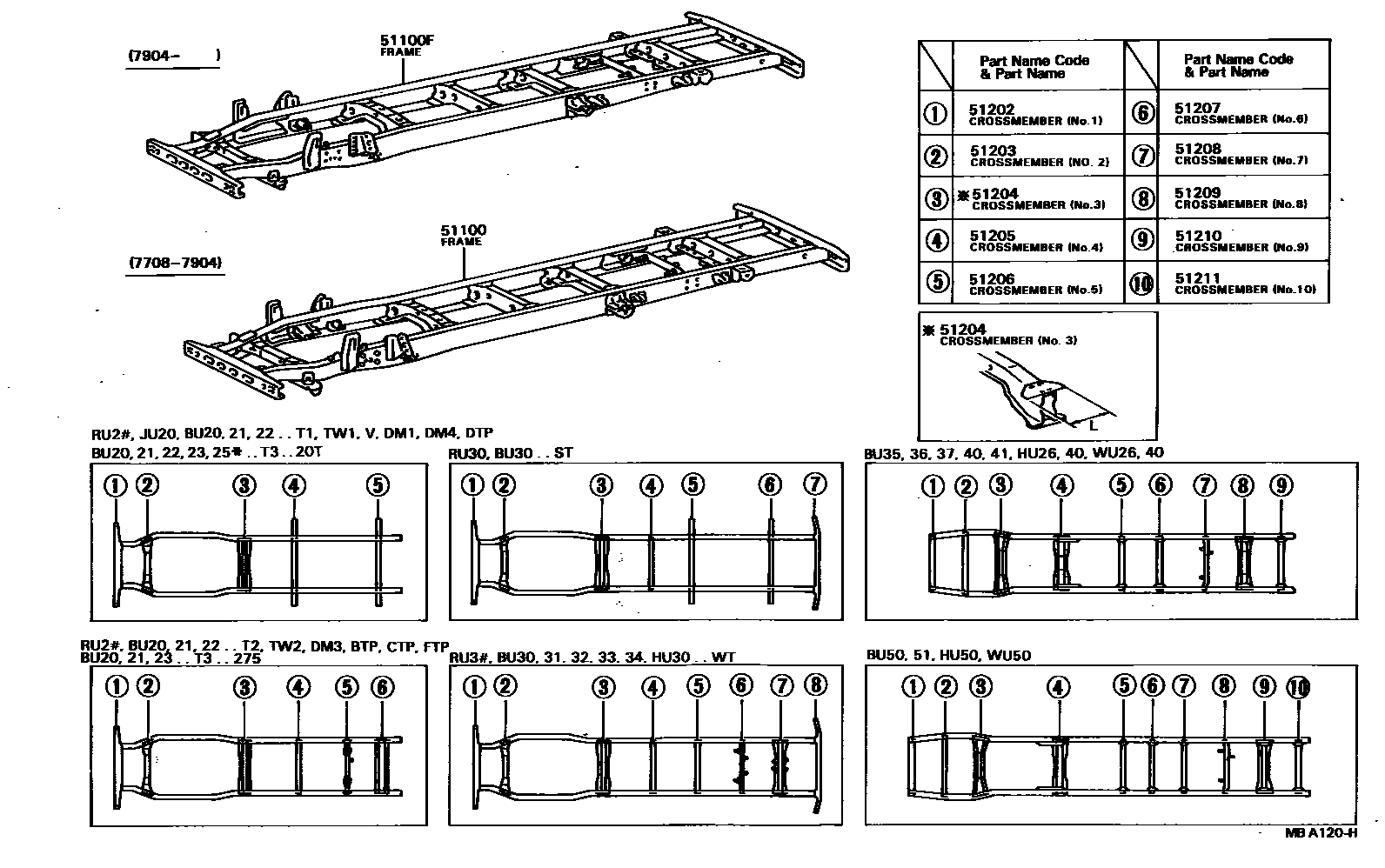

FRAME

0001 1 0002 1

51100FRAME ASSY

main51100-36630iJU20,RU20..ST197708-197904

sub51003-36390

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-51000

sub94115-51200

main51100-36790iRU20..BTP197708-197904

sub51003-36491

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-41000

sub94110-51000

sub94115-51200

main51100-3B020iRU30..ST197708-197904

sub51003-36590

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-51000

sub94115-51200

main51100-3B040iRU30..WT197708-197904

sub51003-36611

sub51401-36060

sub51402-36080

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71030

sub91161-71230

sub94110-41000

sub94110-51000

sub94115-51200

main51100-3B080iHU30197708-197904

sub51003-36631

sub51401-36070

sub51402-36070

sub51721-36060

sub90201-10489

sub90201-12002

sub91111-71025

sub91161-71230

sub94110-41000

sub94110-51000

sub94115-51200

51100FFRAME SUB-ASSY

main51001-3B010iRU20..T3..ST197904-198104

sub51003-36411

sub17572-44070

main51001-3B011iRU20..TB..ST198104-198204

sub51003-36411

sub17572-44070

main51001-3B030iRU20..SRF197904-198104

sub51003-36431

sub17572-44070

main51001-3B031iRU20..SRF198104-198204

sub51003-36431

sub17572-44070

main51001-3B050iRU20..TS..06S197904-198104

sub51003-36451

sub17572-44070

main51001-3B051iRU20..TS..06S198104-198204

sub51003-36451

sub17572-44070

main51001-3B061iRU22..TS..20T198201-198408

sub51003-36741

sub17572-44070

main51001-3B071iRU22..TB..ST198204-198408

sub51003-36751

sub17572-44070

main51001-3B101iRU22..SRF198204-198408

sub51003-36780

sub17572-44070

main51001-3B181iRU22..T2198204-198408

main51001-3B350iHU26198204-198304

main51001-3B360iHU40198204-198304

main51001-3B370iHU50198204-198304

main51001-3B380iRU22..TS..06S198204-198408

main51001-3B390iRU22..06S..WT198204-198408

main51001-3B480iWU26198304-198408

main51001-3B490iWU40198304-198408

main51001-3B510iWU50198304-198408

main51003-36391iJU20..TS197904-197906

main51003-36411iJU20..TB197904-197906

main51003-36471iRU20..T2197904-198104

sub51003-36472

main51003-36472iRU20..T2198104-198204

main51003-36491iRU20..BTP197904-198104

sub51003-36492

main51003-36492iRU20..BTP198104-198204

main51003-36550iRU20..T3..WT..ATP;RU20..T3..WT..CBU197708-198104

sub51003-36551

main51003-36551iRU2#..T3..WT198104-198408

main51003-36560iRU20..TSK197904-198104

sub51003-36561

main51003-36561iRU2#..TSK198104-198408

main51003-36611iRU30..T3..WT197904-198104

sub51003-36612

main51003-36612iRU3#198104-198408

main51003-36631iHU30197904-198008

main51003-36671iRU30..06S197904-198104

sub51003-36672

main51003-36830iJU20,RU20..T1197904-198104

sub51003-36391

sub17572-44070

main51003-36831iRU20..TS..20T198104-198201

sub51003-36391

sub17572-44070

main51003-36840iRU30..T2197904-198104

sub51003-36841

main51003-36850iRU20..06S..WT197904-198104

sub51003-36851

main51003-36851iRU20..06S..WT198104-198204

main51003-36870iRU30..ST197904-198008

sub51003-36591

sub17572-44070

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-36050iHU30,JU20,RU20,30197708-198104

main51201-36051iRU2#,32198104-198408

main51201-36060iHU26,40,50,WU26,40,50198008-198408

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-36060iHU30,JU20,RU2#,3#197708-198408

main51202-36070iHU26,40,50,WU26,40,50198008-198408

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51025-36030iHU26,40,50,WU26,40,50198204-198408

main51203-36210iRU32;RU22..SRF,T1,T2,TW1,TW2198311-198408

L=226

main51203-36210iJU20,RU2#..T3..ST197708-198302

main51203-36220iHU30197708-198204

main51203-36240iRU22..TB..ST198302-198311

L=231

main51231-36120iRU2#..H50;RU22..T3..WT;RU20..T3..WT..CBU;RU20..T3..WT..ATP197708-198408

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51203-36220iHU26,40,50,WU26,40,50198008-198408

main51204-36050iHU30,RU30197708-198102

sub51204-36060

main51204-36060iRU3#198102-198304

main51204-36061iRU32198304-198408

main51204-36090iHU50198204-198302

main51241-36070iJU20,RU2#..ST197708-198408

main51241-36080iRU2#..H50;RU22..T3..WT;RU20..T3..WT..CBU;RU20..T3..WT..ATP197708-198408

main51251-36060iRU20..BTP197708-197811

sub51251-36070

sub94110-41000

main51251-36070iRU2#..BTP197708-198304

main51251-36071iRU22..T2,TW2198304-198408

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51204-36090iHU40,50198204-198304

main51204-36091iWU40,50198304-198408

main51205-36090iWU26198304-198408

main51206-36020iRU2#..BTP;RU2#..T2,TW2197708-198408

main51209-36170iRU2#..H50;RU22..T3..WT;RU20..T3..WT..CBU;RU20..T3..WT..ATP197708-198408

main51241-36070iRU30..ST197708-198008

main51251-36050iJU20,RU2#..ST197708-198408

main51251-36060iHU30,RU30..WT197708-197904

sub51251-36070

sub94110-41000

main51251-36070iHU26197904-198304

51207CROSSMEMBER SUB-ASSY, FRAME, NO.6

main51204-36090iHU50198204-198304

main51204-36091iWU50198304-198408

main51205-36090iWU40198304-198408

main51206-36030iHU30,RU3#..WT197708-198408

main51206-36060iHU26,WU26198204-198408

main51207-36030iRU2#..T2,TW2197708-198408

main51251-36050iRU30..ST197708-198008

main51251-36070iHU40198008-198304

51208CROSSMEMBER SUB-ASSY, FRAME, NO.7

main51205-36090iWU50198304-198408

main51206-36060iHU40,WU40198204-198408

main51207-25030iRU30..T2197904-198204

main51207-36010iHU26,WU26198204-198408

main51207-36020iHU30,RU3#..(T3,TW1)..WT197708-198408

main51251-36070iHU50198204-198304

main51291-36090iRU30..ST197708-198008

51209CROSSMEMBER SUB-ASSY, FRAME, NO.8

main51206-36060iHU50,WU50198204-198408

main51207-36010iHU40,WU40198204-198408

main51291-36090iHU30,RU3#..WT197708-198408

51210CROSSMEMBER SUB-ASSY, FRAME, NO.9

main51207-36010iHU50,WU50198204-198408

main51209-36190iHU40,WU40198204-198408

51211CROSSMEMBER SUB-ASSY, FRAME, NO.10

main51209-36190iHU50,WU50198204-198408

12 parts on this diagram · 2 diagrams in section
