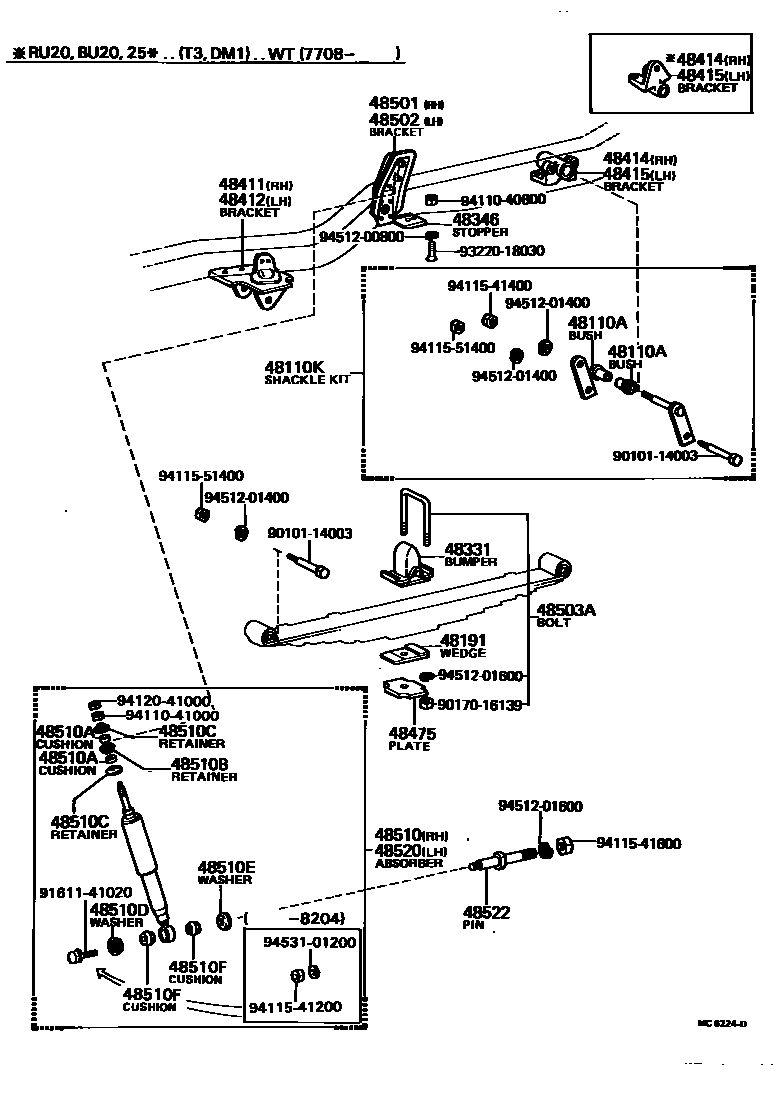

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1

48110SPRING ASSY, FRONT, RH

main48110-36150iJU20,RU30..ST197708-198008

sub48110-36260

main48110-36160iRU20..BTP197708-198008

sub48110-36320

main48110-36170iHU30197708-197909

sub48110-36440

main48110-36230iRU30..T2198004-198008

sub48110-36260

main48110-36240iHU30197909-198008

sub48110-36440

main48110-36300iRU22..T3..WT198008-198408

sub48110-36260

main48110-36320iRU30198008-198408

main48110-36340iRU2#..TR..06S198008-198408

main48110-36360iRU2#..SRF,T1,T2198008-198408

sub48110-36280

main48110-36490iHU40,50,WU40,50198204-198408

main48110-36500iHU26,WU26198204-198408

main48110-36520iRU22..TSK198204-198408

sub48110-36510

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-18025iHU30,JU20,RU2#,3#197708-198408

48110KSHACKLE KIT, FRONT SPRING

main04481-36040iRU20..BTP197708-197904

sub04481-36041

main04481-36041iRU20..BTP197904-198004

sub04481-36042

main04481-36042iRU2#..BTP198004-198408

main04481-36050iRU20..H50;RU20..T3..WT..ATP;RU20..T3..WT..CBU197708-198004

sub04481-36051

main04481-36052iRU2#..TSK;RU2#..T3..WT198004-198408

sub04481-36060

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-35020iJU20,RU2#197708-198210

main48192-35010iHU26,30,40,50,RU3#197912-198408

48331BUMPER, FRONT SPRING, NO.1

main48304-36030iHU30,JU20,RU2#,3#197708-198408

sub48304-36080

main48304-36060iHU26,40,50,WU26,40,50198204-198408

sub48304-36070

48346STOPPER, BUMPER, FRONT

main48346-36030iRU2#..H50;RU22..T3..WT;RU20..T3..WT..CBU;RU20..T3..WT..ATP197708-198408

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48411-36070iHU30,JU20,RU2#,3#197708-198408

main48411-36090iHU26,40,50,WU26,40,50198204-198408

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48412-36070iHU30,JU20,RU2#,3#197708-198408

main48412-36090iHU26,40,50,WU26,40,50198204-198408

48414BRACKET, FRONT SPRING(FOR REAR RH)

main48413-36020iRU2#..BTP;RU2#..T3..ST;HU30,JU20,RU3#;RU2#..SRF,T1,T2,TW1,TW2197708-198408

main48433-36030iRU2#..H50;RU22..T3..WT;RU20..T3..WT..CBU;RU20..T3..WT..ATP197708-198408

main48433-36040iHU26,40,50,WU26,40,50198008-198408

sub48433-36050

48415BRACKET, FRONT SPRING(FOR REAR LH)

main48413-36020iRU2#..BTP;RU2#..T3..ST;HU30,JU20,RU3#;RU2#..SRF,T1,T2,TW1,TW2197708-198408

main48434-36030iRU2#..H50;RU22..T3..WT;RU20..T3..WT..CBU;RU20..T3..WT..ATP197708-198408

main48434-36040iHU26,40,50,WU26,40,50198008-198408

sub48434-36050

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iHU30,JU20,RU2#,3#197711-198408

48501BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH

main48501-36030iHU26,40,50,WU26,40,50198204-198408

main48512-36050iHU30,JU20,RU2#,3#197708-198408

48502BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH

main48502-36040iHU26,40,50,WU26,40,50198204-198408

main48512-36050iHU30,JU20,RU2#,3#197708-198408

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90118-16058iRU2#..TB..ST198008-198408

sub90117-16093

sub90170-16139

sub94621-11600

main90118-16067iRU2#..BTP;RU2#..SRF,T1197708-198408

L=105

sub90118-16214

main90118-16102iRU2#..BTP;RU2#..SRF,T1197711-198408

W/DISTANCE PLATE,L=115

sub90118-16216

main90118-16102iHU30197708-198008

L=115

sub90118-16216

main90118-16165iHU30197711-198008

W/DISTANCE PLATE,L=125

sub90118-16215

main90118-16165iHU40,50,WU40,50198204-198408

L=125

sub90118-16215

main90118-16198iHU26,WU26198204-198408

sub90118-16217

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-39225iHU30,JU20,RU20,30197708-198204

sub48511-39226

main48511-39226iHU40,50,RU22,32,WU40,50198204-198408

sub48511-39227

main48511-39355iHU26,WU26198204-198408

sub48511-39356

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iHU26,30,40,50,JU20,RU2#,3#,WU26,40,50197708-198408

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02007iHU26,30,40,50,JU20,RU2#,3#,WU26,40,50197708-198408

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iHU26,30,40,50,JU20,RU2#,3#,WU26,40,50197708-198408

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03003iHU30,JU20,RU20,30197708-198204

main90948-03007iHU26,40,50,RU22,32,WU26,40,50198204-198408

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iHU26,30,40,50,JU20,RU2#,3#,WU26,40,50197708-198408

48510FCUSHION, SHOCK ABSORBER

main90385-16007iHU26,30,40,50,JU20,RU2#,3#,WU26,40,50197708-198408

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-39225iHU30,JU20,RU20,30197708-198204

sub48511-39226

main48511-39226iHU40,50,RU22,32,WU40,50198204-198408

sub48511-39227

main48511-39355iHU26,WU26198204-198408

sub48511-39356

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25010iHU26,40,50,RU22,32,WU26,40,50198204-198408

main48522-36030iHU30,JU20,RU20,30197708-198204

9010114003

main90101-14003

9017016139

main90170-16139

9161141020

main91611-41020

9322018030

main93220-18030

9411040800

main94110-40800

9411041000

main94110-41000

9411541200

main94115-41200

9411541400

main94115-41400

9411541600

main94115-41600

9411551400

main94115-51400

9412041000

main94120-41000

9451200800

main94512-00800

9451201400

main94512-01400

9451201600

main94512-01600

9453101200

main94531-01200

38 parts on this diagram · 5 diagrams in section
