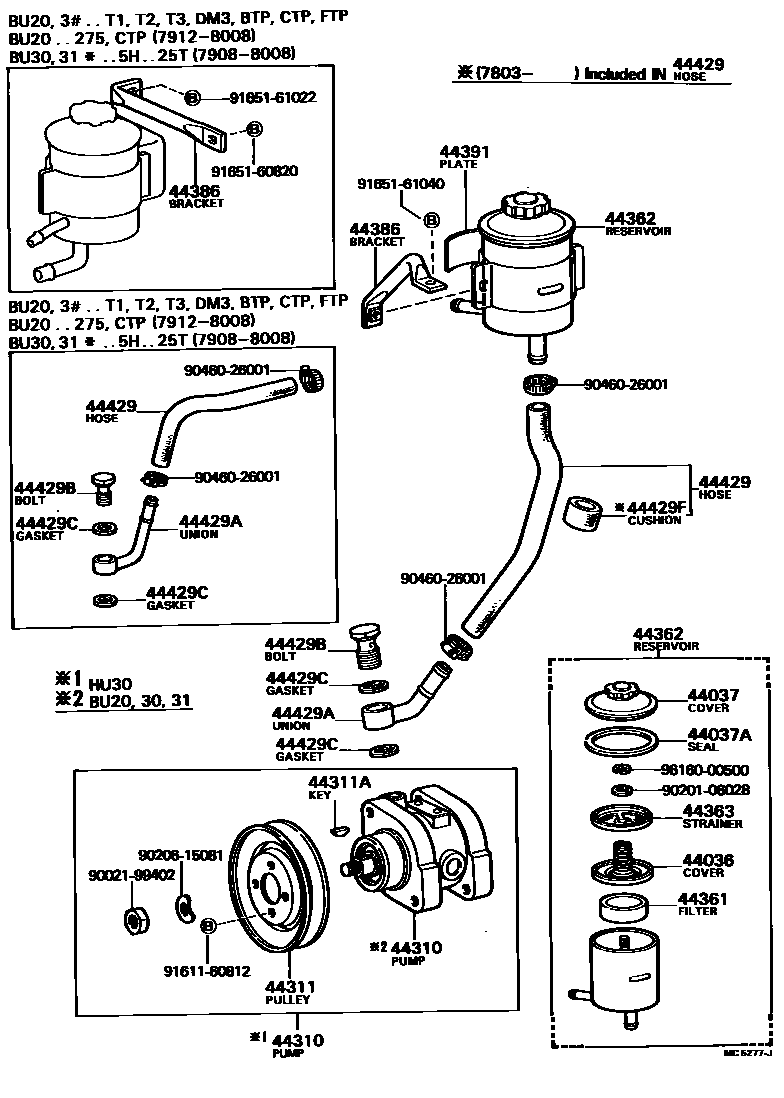

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0003 1 0004 1 0005 1 0006 1

44036COVER SUB-ASSY(FOR VANE PUMP OIL FILTER)

main44036-36010iHU30197708-198008

44037COVER SUB-ASSY, OIL RESERVOIR

main44037-36010iHU30197708-198008

main44037-36041iHU26,40,50198204-198304

sub44037-36080

main44037-36080iWU26,40,50198304-198408

44037ASEAL, DUST(FOR OIL RESERVOIR COVER)

main90021-99609iHU30197708-198008

main90029-20701iHU26,40,50,WU26,40,50198204-198408

44310PUMP ASSY, VANE

main44310-36010iHU30197708-198008

sub44320-36041

sub44311-36010

sub91611-60812

main44320-36040iHU26,40,50198204-198304

sub44320-36041

main44320-89101iWU26,40,50198304-198408

44311PULLEY, VANE PUMP

main44311-36010iHU26,30,40,50197708-198304

44311AKEY, VANE PUMP PULLEY

main90021-99501iHU30197708-198008

sub90029-18001

main90029-18001iHU26,40,50198204-198304

main90029-18002iWU26,40,50198304-198408

44361FILTER, OIL(FOR VANE PUMP)

main44361-36010iHU30197708-198008

44362RESERVOIR, OIL(FOR VANE PUMP)

main44360-36010iHU30197708-198008

main44360-36050iHU26,40,50198204-198304

sub44360-36070

main44360-36080iWU26,40,50198304-198408

44363STRAINER, OIL(FOR VANE PUMP)

main44363-36010iHU30197708-198008

main44363-36040iHU26,40,50,WU26,40,50198204-198408

44386BRACKET(FOR VANE PUMP OIL RESERVOIR)

main44386-36020iHU30197708-198008

main44386-36030iWU26,40,50198304-198408

main44386-36050iHU26,40,50198204-198304

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30010iHU30197708-198008

main44391-36010iHU26,40,50,WU26,40,50198204-198408

sub44391-36020

44429HOSE, RESERVOIR TO OIL PUMP

main44348-36020iHU30197708-198008

main44348-36060iHU26,40,50198204-198304

sub44348-36170

main44348-36070iWU26,40,50198304-198408

44429AUNION(FOR RESERVOIR TO OIL PUMP)

main90405-16003iHU30197708-198008

main90405-16004iHU26,40,50198204-198304

main90405-16012iWU26,40,50198304-198408

44429BBOLT, UNION(FOR RESERVOIR TO OIL PUMP UNION)

main90401-22002iHU30197708-198008

main90401-22003iHU26,40,50,WU26,40,50198204-198408

44429CGASKET(FOR RESERVOIR TO OIL PUMP UNION)

main90430-22001iHU30197708-198408

44429FCUSHION(FOR RESERVOIR TO OIL PUMP HOSE)

main90540-22001iHU30197708-198008

9002199402

main90021-99402

9020106028

main90201-06028

9020615081

main90206-15081

9046026001

main90460-26001

9161160812

main91611-60812

9165160820

main91651-60820

9165161022

main91651-61022

9165161040

main91651-61040

9616000500

main96160-00500

25 parts on this diagram · 5 diagrams in section
