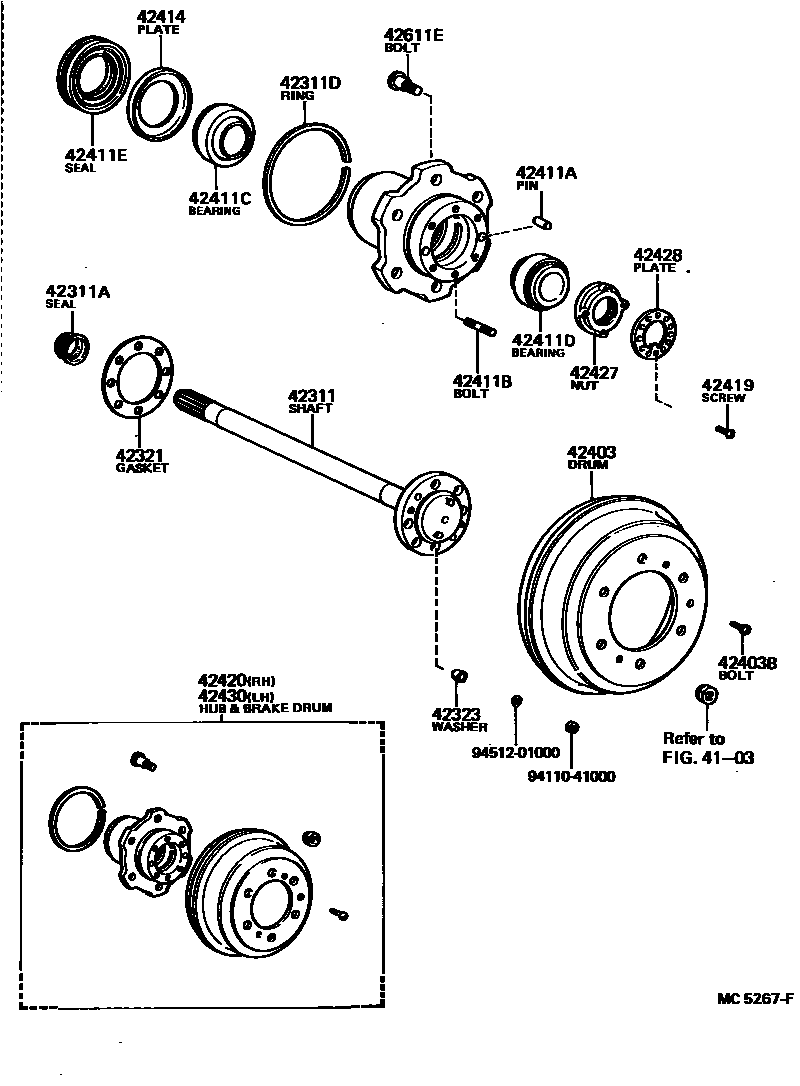

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

4103

42311SHAFT, REAR AXLE

main42311-36050iRU3#..(T3,TW1)..WT197708-198408

sub42311-36051

main42311-36070iRU2#..BTP197708-198408

sub42311-36071

main42311-36080iHU30197708-198008

main42311-36090iRU2#..T2,TW2197708-198408

sub42311-36091

main42311-36100iRU30..T2197904-198408

sub42311-36101

main42311-36120iHU26,40,50198204-198304

sub42311-36121

main42311-36121iWU26,40,50198304-198408

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-38033iHU30,JU20,RU2#,3#197708-198408

main90310-41001iHU26,40,50,WU26,40,50198204-198408

42311DRING, SNAP(FOR REAR AXLE SHAFT)

main90520-99065iJU20,RU2#,30..ST197708-198408

42321GASKET, REAR AXLE SHAFT

main42321-36010iHU30,JU20,RU2#,3#197708-198408

main42321-55030iHU26,40,50,WU26,40,50198204-198406

sub42321-36020

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010iHU30,JU20,RU2#,3#197708-198408

main42323-37010iHU26,40,50,WU26,40,50198204-198408

42403DRUM SUB-ASSY, REAR BRAKE

main42431-25060iRU2#,30..T2,TW2197904-198408

main42431-36050iRU20..KKT,TSK;HU30,RU20,30..(T3,TW1)..WT197708-198008

main42431-36070iRU2#..KKT,TSK;RU2#,3#..T3..WT198008-198309

sub42431-36071

main42431-36071iRU22..KKT,TSK;RU22,32..T3..WT198309-198408

sub42431-36120

main42431-36080iHU26,40,50198204-198304

sub42431-36081

main42431-36081iWU26,40,50198304-198408

main43512-36020iJU20,RU2#,30..ST197708-198408

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10015iJU20,RU2#,30..ST197708-198206

sub90113-10035

main90113-10035iRU22..ST198206-198408

main91111-51016iHU26,40,50,WU26,40,50198204-198408

42411HUB, REAR AXLE

main42411-37010iHU26,40,50,WU26,40,50198204-198408

42411APIN, STRAIGHT (FOR REAR AXLE HUB)

main90250-10055iHU30,JU20,RU2#,3#197708-198408

42411BBOLT, STUD (FOR REAR AXLE HUB)

main90116-10191iHU30,JU20,RU2#,3#197708-198408

main90116-12199iHU26,40,50,WU26,40,50198204-198408

42411CBEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

main90368-57010iHU30,JU20,RU2#,3#197708-198408

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90368-50008iHU30,JU20,RU2#,3#197708-198408

42411ESEAL, OIL (FOR REAR AXLE HUB)

main42404-36010iHU30,JU20,RU2#,3#197708-198408

main90311-88102iHU26,40,50,WU26,40,50198204-198408

42414PLATE, REAR AXLE HUB

main42414-36010iHU30,JU20,RU2#,3#197708-198408

42419SCREW, REAR AXLE BEARING LOCK NUT

main93311-16012iHU30,JU20,RU2#,3#197708-198408

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42420-25070iRU2#,30..T2,TW2197904-198408

sub42420-25071

main42420-36050iJU20,RU2#,30..ST197708-198408

main42420-36060iRU20..KKT,TSK;HU30,RU20,30..(T3,TW1)..WT197708-198008

main42420-36080iRU2#..KKT,TSK;RU2#,3#..T3..WT198008-198309

sub42420-36081

main42420-36081iRU22..KKT,TSK;RU22,32..T3..WT198309-198408

sub42420-36130

main42420-36090iHU26,40,50198204-198304

sub42420-36091

main42420-36091iWU26,40,50198304-198408

42427NUT, REAR AXLE BEARING LOCK

main42427-36010iHU30,JU20,RU2#,3#197708-198408

main42427-36020iHU26,40,50,WU26,40,50198204-198408

42428PLATE, REAR AXLE LOCK NUT

main42428-36010iHU30,JU20,RU2#,3#197708-198408

main90214-57002iHU26,40,50,WU26,40,50198204-198408

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-25030iRU2#,30..T2,TW2197904-198408

sub42430-25031

main42430-36050iJU20,RU2#,30..ST197708-198408

main42430-36060iRU20..KKT,TSK;HU30,RU20,30..(T3,TW1)..WT197708-198008

main42430-36080iRU2#..KKT,TSK;RU2#,3#..T3..WT198008-198408

sub42430-36081

main42430-36090iHU26,40,50198204-198304

sub42430-36091

main42430-36091iWU26,40,50198304-198408

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02024iJU20,RU2#,30..ST197708-198408

RH

main90942-02025iJU20,RU2#,30..ST197708-198408

LH

main90942-02026iHU26,40,50,WU26,40,50198204-198408

RH

main90942-02027iHU26,40,50,WU26,40,50198204-198408

LH

main90942-02039iHU30,RU20,30..WT197708-198408

RH

main90942-02040iRU2#..T2,TW2197708-198408

LH

main90942-02045iRU2#..KKT,TSK;RU2#,3#..T3..WT198008-198408

RH

main90942-02046iRU2#..KKT,TSK;RU2#,3#..T3..WT198008-198408

LH

9411041000

main94110-41000

9451201000

main94512-01000

23 parts on this diagram · 4 diagrams in section
