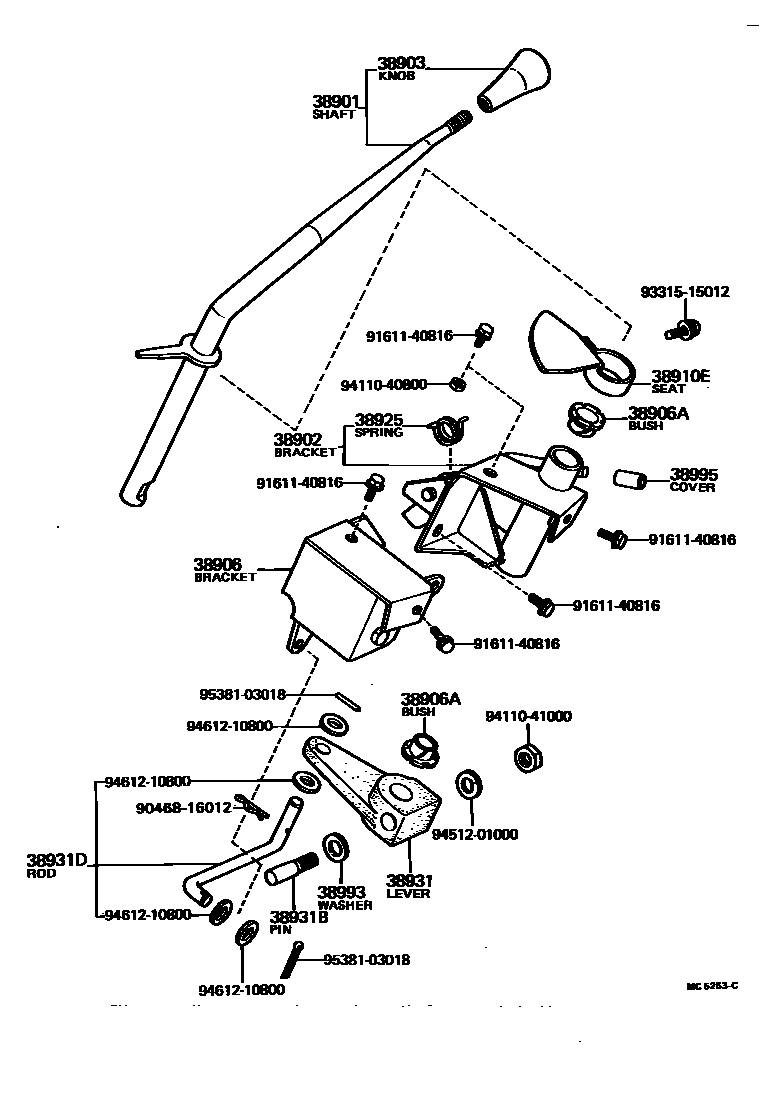

POWER TAKE-OFF LEVER & LINK

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

38901SHAFT SUB-ASSY, CONTROL

main38901-96307iRU2#..TSK197708-198408

main38911-96308iHU26,WU26198204-198408

38902BRACKET SUB-ASSY, CONTROL SHAFT, UPPER

main38902-96306iRU2#..TSK197708-198408

main38902-96309iHU26,WU26198204-198408

38903KNOB SUB-ASSY, CONTROL

main38903-96250iWU26..CBU;HU26,RU2#..TSK198008-198408

main38903-96302iRU20..TSK197708-198008

main38916-93004iRU20..KKT197708-197904

38906BRACKET SUB-ASSY, CONTROL SHAFT, LOWER

main38906-96304iRU22..TS..20T197708-198408

main38951-93111iRU20..KKT197708-197904

38906ABUSH, CONTROL LINK

main90386-12188iHU26,WU26198204-198408

main90386-16022iRU2#..TSK197708-198408

main90389-16001iRU20..KKT197708-197904

38910LEVER ASSY, DUMP

main38910-93111iRU20..KKT197708-197904

38910ESEAT, DUMP LEVER CAUTION PLATE

main38976-96301iRU2#..TSK197708-198408

38925SPRING, CONTROL LINK SET

main38925-96303iRU2#..TSK197708-198408

38931LEVER, VALVE LINK

main38931-96306iRU22..TS..20T197708-198408

38931BPIN, VALVE LINK LEVER

main45285-55010iRU22..TS..20T197708-198408

38931DROD (FOR VALVE LINK LEVER)

main38936-96303iRU22..TS..20T197708-198408

38993WASHER, CONTROL SHAFT, NO.2

main38993-96301iRU2#..TSK197708-198408

38995COVER, LOCK LEVER

main38995-96301iRU2#..TSK197708-198408

9046816012

main90468-16012

9161140816

main91611-40816

9331515012

main93315-15012

9411040800

main94110-40800

9411041000

main94110-41000

9451201000

main94512-01000

9461210800

main94612-10800

9538103018

main95381-03018

21 parts on this diagram · 8 diagrams in section
