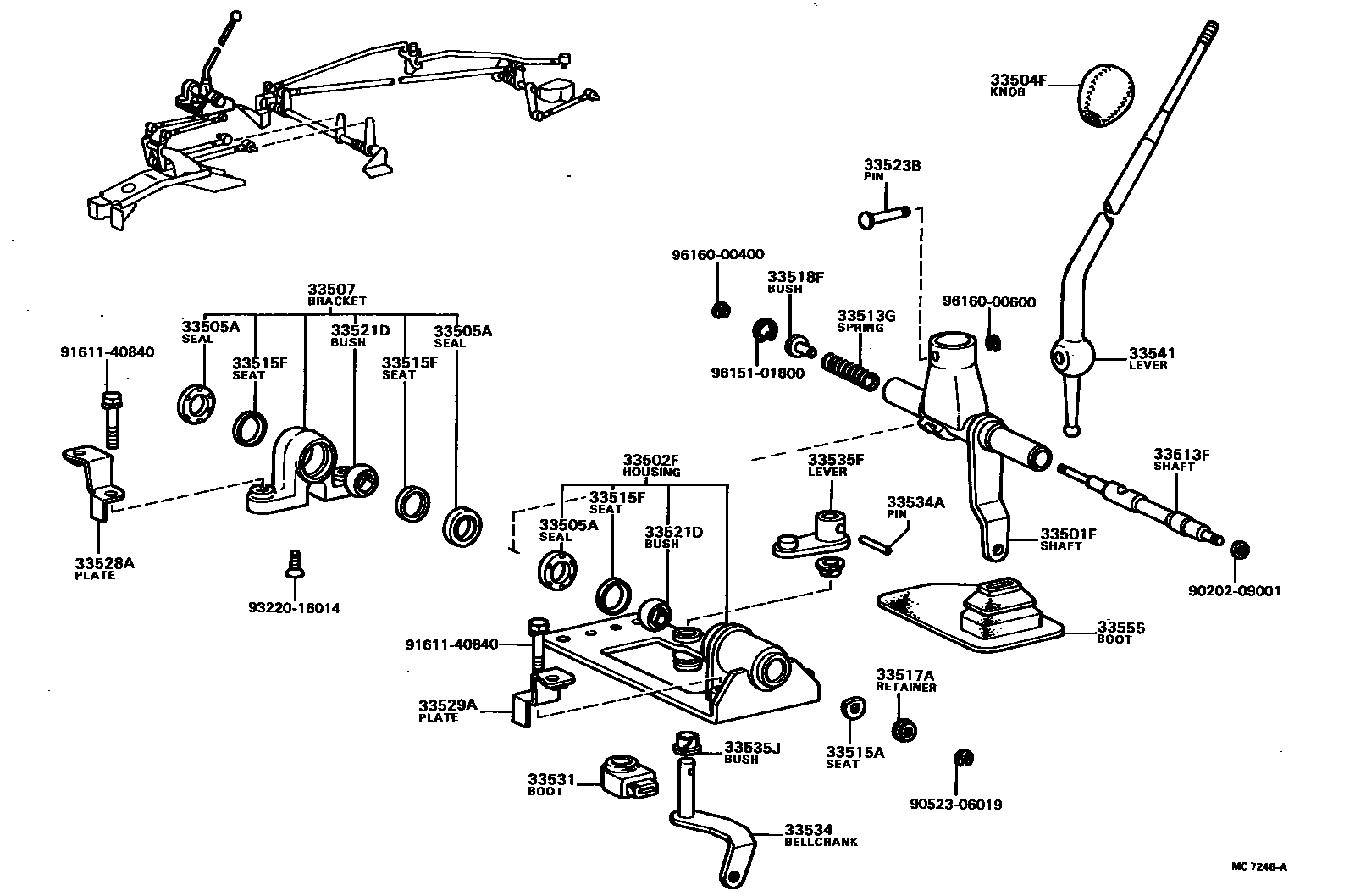

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

main33501-36140iHU26,40,50198204-198302

main33501-36170iHU26,40,50,WU26,40,50198302-198408

33502FHOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT)

main33502-36010iHU26,40,50198204-198302

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-16iHU26,40,50198204-198302

DARK BROWN,BROWN

sub33504-20052

sub33504-14050

main33504-22111iHU26,40,50,WU26,40,50198302-198408

DARK BROWN

sub33504-14050

33505ASEAL SUB-ASSY, CONTROL SHAFT DUST (FOR FLOOR SHIFT)

main33505-36010iHU26,40,50198204-198302

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-36010iHU26,40,50198204-198302

main33507-36020iHU26,40,50,WU26,40,50198302-198408

RH

main33507-36030iHU26,40,50,WU26,40,50198302-198408

LH

33513FSHAFT, CONTROL SHAFT BRACKET

main33513-36030iHU26,40,50198204-198302

sub33513-36040

main33513-36040iHU26,40,50,WU26,40,50198302-198408

33513GSPRING, COMPRESSION (FOR CONTROL SHAFT BRACKET SHAFT)

main90501-12036iHU26,40,50,WU26,40,50198204-198408

33515ASEAT, CONTROL UPPER SHAFT (FOR FLOOR SHIFT)

main33515-30010iHU26,40,50,WU26,40,50198204-198408

33515FSEAT, CONTROL SHAFT

main33515-36010iHU26,40,50198204-198302

main33515-36020iHU26,40,50,WU26,40,50198302-198408

33517ARETAINER, CONTROL UPPER SHAFT SEAT

main33517-30010iHU26,40,50,WU26,40,50198204-198408

33518FBUSH, CONTROL SHAFT

main90386-06011iHU26,40,50,WU26,40,50198204-198408

33521DBUSH (FOR SHIFT LEVER HOUSING)

main33518-36040iHU26,40,50,WU26,40,50198204-198408

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

main90249-08013iHU26,40,50,WU26,40,50198302-198408

main90249-08033iHU26,40,50198204-198302

33528APLATE, SHIFT LEVER HOUSING, NO.1

main33528-36010iHU26,40,50,WU26,40,50198204-198408

33529APLATE, SHIFT LEVER HOUSING, NO.2

main33529-36020iHU26,40,50,WU26,40,50198204-198408

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-36030iHU26,40,50,WU26,40,50198204-198408

33534BELLCRANK, SELECTING

main33534-36030iHU26,40,50,WU26,40,50198204-198408

33534APIN (FOR SELECTING BELLCRANK)

main90250-06008iHU26,40,50,WU26,40,50198204-198408

33535FLEVER, CONTROL SELECT (FOR FLOOR SHIFT)

main33535-36060iHU26,40,50198204-198302

sub33535-36070

main33535-36070iHU26,40,50,WU26,40,50198302-198408

33535JBUSH (FOR CONTROL SELECT LEVER)

main90386-13192iHU26,40,50,WU26,40,50198204-198408

33541LEVER, SHIFT

main33541-36120iHU26,40,50198204-198302

main33541-36121iHU26,40,50,WU26,40,50198302-198408

33555BOOT, SHIFT LEVER

main33555-36010iHU26,40,50,WU26,40,50198204-198408

9020209001

main90202-09001

9052306019

main90523-06019

9161140840

main91611-40840

9322016014

main93220-16014

9615101800

main96151-01800

9616000400

main96160-00400

9616000600

main96160-00600

29 parts on this diagram · 5 diagrams in section
