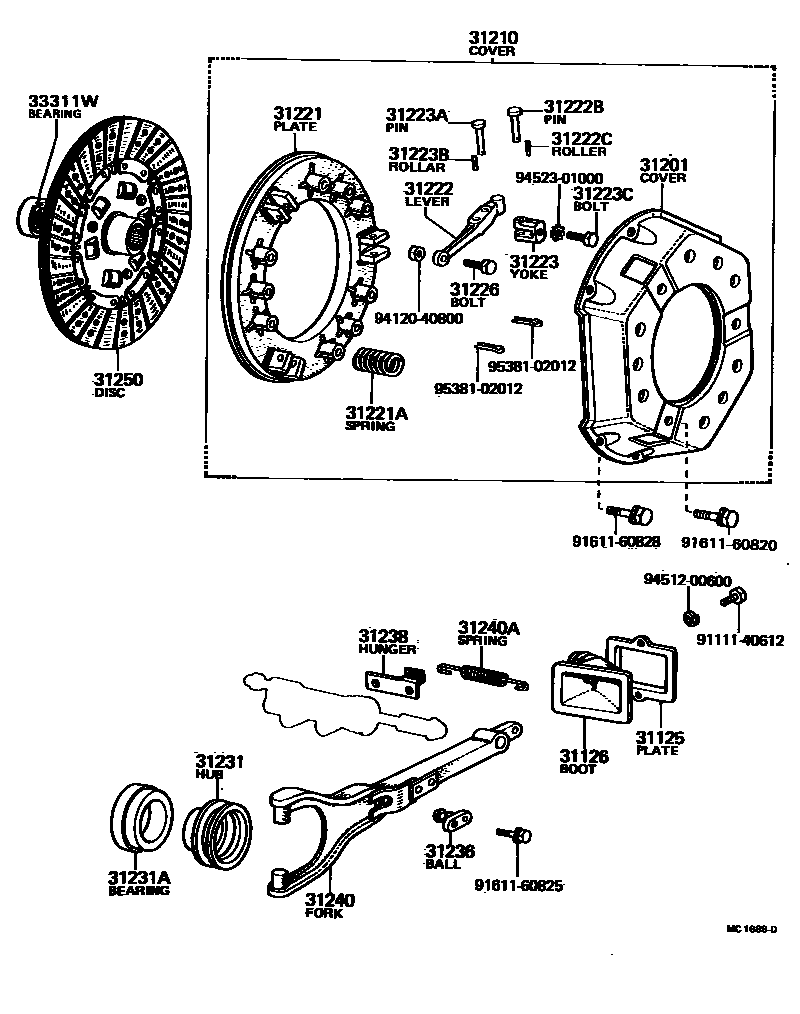

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1

31125PLATE, RELEASE FORK BOOT

main31125-36010iJU20197708-198008

main31125-36020iHU30197708-198008

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iRU2#,3#197708-198408

main31126-36010iJU20197708-198008

main31126-55020iHU30197708-198008

main31126-60021iWU26,40,50198204-198408

31201COVER SUB-ASSY, CLUTCH

main31201-29075iJU20197708-197907

sub31201-29076

main31201-29076iJU20197907-198008

sub31201-29085

main31201-39075iRU20,30197708-197907

sub31201-39076

main31201-39076iRU20,30197907-198003

sub31201-39077

main31201-39077iRU2#,3#198003-198305

sub31201-39078

main31201-39078iRU22,32198305-198310

sub31210-14121

main31201-61010iHU30197708-198008

main31201-69027iHU26,40,50,WU26,40,50198204-198408

sub31210-60070

31210COVER ASSY, CLUTCH

main31210-14121iRU22,32198311-198408

main31210-36026iJU20197708-197903

sub31210-36027

main31210-36027iJU20197903-197907

sub31210-36028

main31210-36028iJU20197907-198008

sub31210-36029

main31210-36041iHU30197708-198008

main31210-36080iRU20,30197708-197907

sub31210-36081

main31210-36081iRU20,30197907-198003

sub31210-36082

main31210-36082iRU20,30198003-198203

sub31210-36083

main31210-36083iRU2#,3#198203-198305

sub31210-36084

main31210-36084iRU22,32198305-198311

sub31210-14121

main31210-60042iHU26,40,50,WU26,40,50198204-198408

sub31210-60070

31221PLATE, CLUTCH PRESSURE

main31221-36041iHU30197708-198008

main31221-39055iJU20197708-197903

sub31221-39056

main31221-39056iJU20197903-198008

sub31221-36025

main31221-39065iRU2#,3#197708-198310

main31221-69025iHU26,40,50,WU26,40,50198204-198408

sub31221-60020

31221ASPRING, COMPRESSION(FOR CLUTCH)

main90501-50047iHU30197708-198008

31222LEVER, CLUTCH PRESSURE

main31222-55020iHU30197708-198008

31222BPIN, W/HOLE(FOR CLUTCH PRESSURE LEVER)

main90240-08011iHU30197708-198008

31222CROLLER OR BEARING, CLUTCH PRESSURE PLATE PIN

main90361-02057iHU30197708-198008

31223YOKE, CLUTCH RELEASE LEVER

main31223-55040iHU30197708-198008

31223APIN(FOR CLUTCH PRESSURE LEVER)

main90249-06003iHU30197708-198008

31223BROLLER, CLUTCH PRESSURE LEVER

main90361-06020iHU30197708-198008

31223CBOLT, HEXAGON(FOR CLUTCH RELEASE LEVER YOKE)

main90101-10077iHU30197708-198008

31226BOLT, CLUTCH PRESSURE PLATE

main90106-08005iHU30197708-198008

31231HUB, CLUTCH RELEASE BEARING

main31231-30060iRU20,30197708-197810

sub31231-30061

main31231-30061iRU20,30197810-198008

main31231-30080iRU2#,3#198008-198408

main31231-36050iJU20197708-197903

sub31231-36051

main31231-36051iJU20197903-198008

main31231-60050iHU26,40,50,WU26,40,50198204-198408

main31231-65010iHU30197708-198008

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iRU20,30197708-198010

sub90363-40008

main90363-40003iJU20197708-198002

sub90363-40010

main90363-40008iRU20,30198002-198008

main90363-40010iJU20198002-198008

main90363-40019iRU2#,3#198010-198211

sub90363-40022

main90363-40022iRU22,32198211-198408

main90363-52001iHU26,40,50,WU26,40,50198204-198408

main90363-52018iHU30197708-198008

31236BALL, RELEASE FORK

main31236-20040iRU20,30198008-198107

main31236-30030iRU2#,3#197708-198408

main31236-36010iJU20197708-198008

main31236-55010iHU30197708-198008

main31236-60030iHU26,40,50,WU26,40,50198204-198408

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-60041iHU30197708-198008

main31238-60060iHU26,40,50198204-198304

31240FORK ASSY, CLUTCH RELEASE

main31204-20020iRU20,30197708-198008

sub31204-26010

main31204-26010iRU2#,3#198107-198408

main31204-36040iJU20197708-198008

main31204-36050iRU20,30198008-198107

sub31204-26010

main31204-55020iHU30197708-198008

main31204-60040iHU26,40,50198204-198303

sub31204-60041

main31204-60041iHU26,40,50,WU26,40,50198303-198408

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16004iJU20,RU2#,3#197708-198408

main90506-16475iHU26,30,40,50,WU26,40,50197708-198408

31250DISC ASSY, CLUTCH

main31250-36064iJU20197708-197710

sub31250-36065

main31250-36065iJU20197710-198006

sub31250-36066

main31250-36066iJU20198006-198008

sub31250-35080

main31250-36120iHU30197708-198008

sub31250-36121

main31250-36130iRU20,30197708-197805

sub31250-36131

main31250-36131iRU20,30197805-198111

sub31250-17051

main31250-36150iHU26,40,50198204-198304

sub31250-36210

sub31250-60100

main31250-36170iRU2#,3#198111-198311

sub31250-36171

main31250-36171iRU22,32198311-198408

sub31250-36181

main31250-36200iWU26,40,50198304-198408

sub31250-36250

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRU2#,3#198006-198408

6201 2NK

sub90363-12024

main90363-15004iHU26,30,40,50,WU26,40,50197904-198408

6202 2NK

main97120-06202iHU30197708-197904

6202 ZZ

main97143-06201iJU20,RU20,30197708-198008

6201 VV C3

9111140612

main91111-40612

9161160820

main91611-60820

9161160825

main91611-60825

9161160828

main91611-60828

9412040800

main94120-40800

9451200600

main94512-00600

9452301000

main94523-01000

9538102012

main95381-02012
