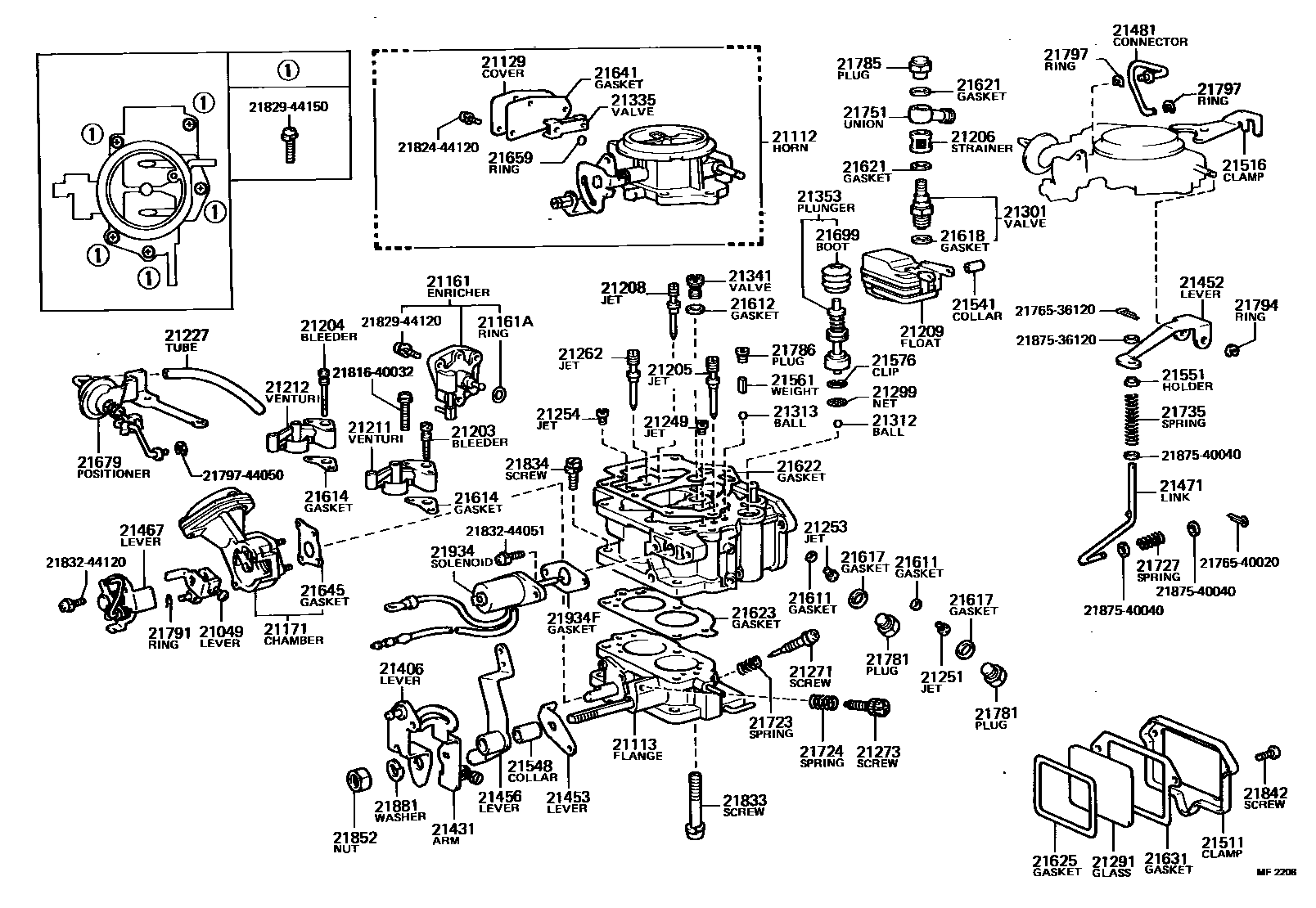

CARBURETOR
21049LEVER SUB-ASSY, 2ND THROTTLE
21112HORN, AIR
21113FLANGE, CARBURETOR
21129COVER(FOR THERMOSTATIC VALVE)
21161ENRICHER, COASTING
21161ARING, O(FOR COASTING ENRICHER)
21171CHAMBER, DIAPHRAGM
21203BLEEDER SUB-ASSY, 1ST MAIN AIR
21204BLEEDER SUB-ASSY, 2ND MAIN AIR
21205JET SUB-ASSY, SLOW
ID=0.48
21206STRAINER SUB-ASSY
21208JET SUB-ASSY, STEP
ID=0.60
ID=0.70
21209FLOAT SUB-ASSY
21211VENTURI, 1ST SMALL
21212VENTURI, 2ND SMALL
21227TUBE, AIR VENT
21249JET, AIR BLEED, NO.2
ID=1.60
NO.1
NO.2
21251JET, 1ST MAIN
ID=1.03
21253JET, 2ND MAIN
ID=1.55
21254JET, STEP AIR BLEED
ID=1.00
21262JET, MAIN AIR BLEED
ID=0.42
21271SCREW, IDLE ADJUSTING
21291GLASS, LEVEL GAGE
21299NET, PUMP FILTER
21301VALVE SUB-ASSY, NEEDLE
21312BALL, STEEL
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21335VALVE, THERMOSTATIC
21341VALVE, POWER
sub21302-73110
21353PLUNGER, PUMP
21406LEVER SUB-ASSY, 1ST THROTTLE
21431ARM, 1ST THROTTLE SHAFT
21452LEVER, PUMP
21453LEVER, 1ST THROTTLE
21456LEVER, 1ST THROTTLE IDLE ADJUSTING, NO.1
21467LEVER, 2ND THROTTLE RETURN
21471LINK, PUMP CONNECTING
21481CONNECTOR, 1ST IDLE
21511CLAMP, LEVEL GAGE
21516CLAMP, CONNECTOR
21541COLLAR, FLOAT PIN
21548COLLAR, THROTTLE LEVER
21551HOLDER, BACK SPRING
21561WEIGHT, PUMP DISCHARGE
21576CLIP, PUMP STRAINER
21611GASKET, MAIN JET
21612GASKET, POWER VALVE
21614GASKET, VENTURI
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21625GASKET, LEVEL GAGE
21631GASKET, MAIN GUIDE
21641GASKET(FOR THERMOSTATIC VALVE COVER)
21645GASKET, DIAPHRAGM, CAP
21659RING, O(FOR THERMOSTATIC VALVE)
21679POSITIONER
21699BOOT(FOR PUMP PLUNGER)
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21727SPRING, PUMP CONNECTING LINK SUPPORT
21735SPRING, PUMP ARM
21751UNION, NIPPLE
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21785PLUG, CARBURETOR FUEL INLET STRAINER
21786PLUG, PUMP PASSAGE
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
21794RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
21797RING, SNAP, NO.4(FOR CARBURETOR LINK)
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21852NUT, THROTTLE LEVER SET
sub21855-40030
21881WASHER, LOCK(FOR THROTTLE SHAFT)
sub21881-40030
21934SOLENOID, THROTTLE VALVE
21934FGASKET
2176536120PIN(FOR PUMP PLUNGER)
main21765-36120
2176540020PIN(FOR PUMP PLUNGER)
main21765-40020
2179744050RING, SNAP, NO.4(FOR CARBURETOR LINK)
main21797-44050
2181640032SCREW, SMALL VENTURI SET, NO.1
main21816-40032
2182444120SCREW, SET(FOR 1ST IDLE CAM FOLLOWER SET)
main21824-44120
2182944120SCREW, HIGH SPEED VALVE SET
main21829-44120
2182944150SCREW, HIGH SPEED VALVE SET
main21829-44150
2183244051SCREW(FOR CHOKE LEVER ADAPTER SET)
main21832-44051
2183244120SCREW(FOR CHOKE LEVER ADAPTER SET)
main21832-44120
2187536120WASHER, THROTTLE OPENER ARM
main21875-36120
2187540040WASHER, THROTTLE OPENER ARM
main21875-40040
90 parts on this diagram · 3 diagrams in section
