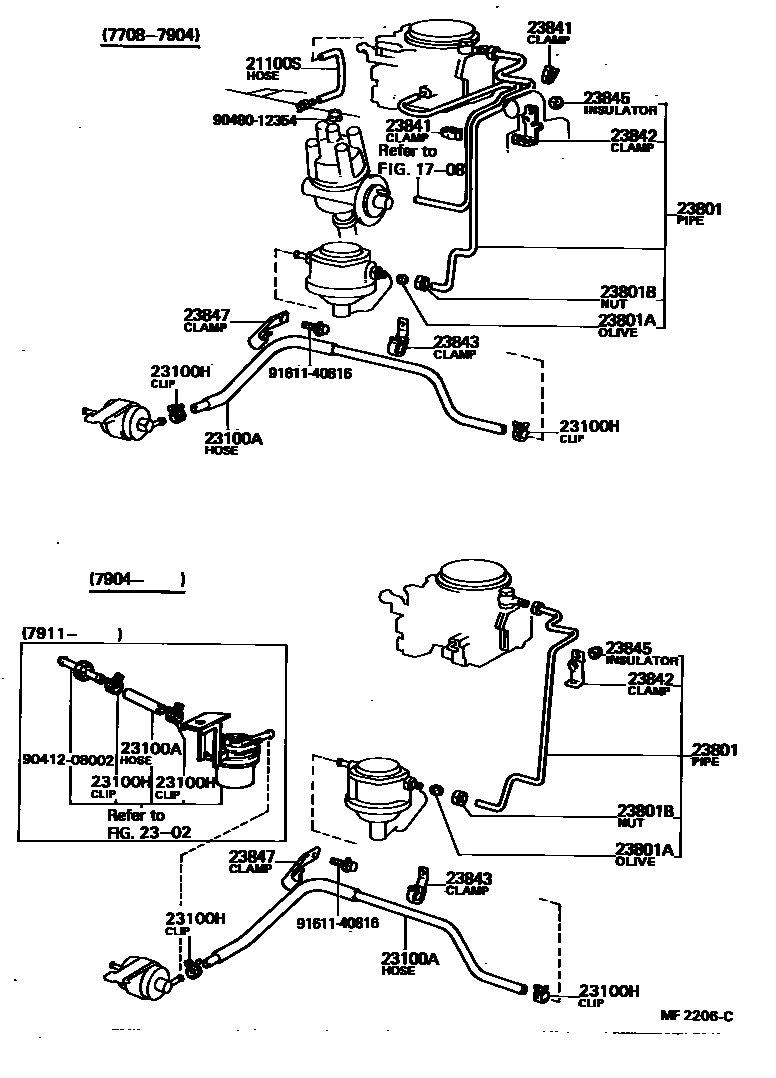

FUEL PIPE & CLAMP

1708

21100SHOSE(FOR CARBURETOR TO MANIFOLD)

main90445-07055i5R..RU20,30197708-197712

L=160

sub95411-19930

main95411-19930i5R..RU20,30197712-197904

*H,L=160

sub90999-92002

2302

23100AHOSE, FUEL

main23271-44010i5R..RU20..H50197708-197911

L=690

main23271-44011i5R..RU32;5R..RU22..BTP;5R..RU22..TB..ST;5R..RU22..SRF,T1,T2,TW1,TW2197911-198408

L=650

main23271-44020i5R..RU20..H50;5R..RU20..T3..WT..ATP;5R..RU20..T3..WT..CBU197708-197911

L=620

main23271-44021i5R..RU2#..TSK;5R..RU2#..T3..WT197911-198408

L=580

main95332-06005i5R..RU2#,3#197911-198408

L=50

sub95332-06010

23100HCLIP(FOR FUEL HOSE)

main96132-30600i5R..RU2#,3#197911-198408

sub96132-51100

main96132-30800i5R..RU20,30197708-197911

sub96132-51300

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23801-44031i5R..RU22,32198204-198408

main23801-44051i5R..RU20,30197708-198204

23801AOLIVE(FOR FUEL PIPE)

main96395-71400i5R..RU2#,3#197708-198408

23801BNUT, UNION(FOR FUEL PIPE)

main90402-13041i5R..RU2#,3#197708-198408

23841CLAMP, FUEL PIPE(HOSE), NO.1

main90468-05025i5R..RU20,30197708-197904

23842CLAMP, FUEL PIPE(HOSE), NO.2

main23841-44010i5R..RU2#,3#197708-198408

23843CLAMP, FUEL PIPE(HOSE), NO.3

main90461-08226i5R..RU20,30197708-197911

main90461-08498i5R..RU2#,3#197911-198408

23845INSULATOR, FUEL PIPE

main90480-11124i5R..RU2#,3#197708-198408

23847CLAMP, FUEL PIPE(HOSE), NO.4

main90461-08272i5R..RU20,30197708-197911

main90461-08500i5R..RU2#,3#197911-198408

9041208002

main90412-08002

9048012354

main90480-12354

9161140816

main91611-40816

16 parts on this diagram · 1 diagram in section
