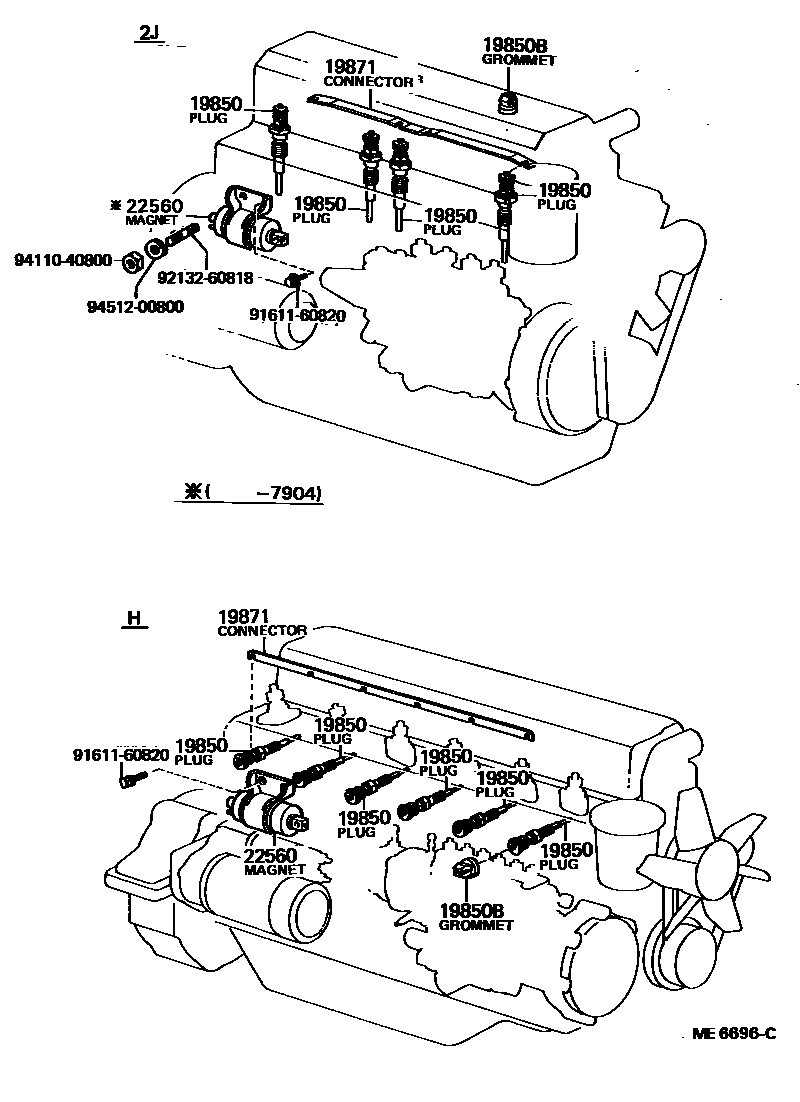

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 MEB557,MED147 0004 1

19850PLUG ASSY, GLOW

main19850-56012i2J..JU20197708-198008

main19850-56022i2J..JU20197708-198008

*12V-8.5V

sub19850-68030

sub90189-04024

main19850-68060i2H..HU26,40,50198204-198304

main19850-78010i1W..WU26,40,50198304-198408

sub19850-78011

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1W..WU26,40,50198204-198408

main90189-06004iH..HU30197708-198008

19871CONNECTOR, GLOW PLUG NO.1

main19871-47011iH..HU30197708-198008

main19871-48010i2J..JU20197708-198008

main19871-68011i2H..HU26,40,50198204-198304

main19871-78010i1W..WU26,40,50198304-198408

sub19871-78021

22560MAGNET ASSY, OVER INJECTION

main22560-48010i2J..JU20197708-197904

12V

main22560-48020i2J..JU20197708-198008

24V

9161160820

main91611-60820

9213260818

main92132-60818

9411040800

main94110-40800

9451200800

main94512-00800

8 parts on this diagram · 3 diagrams in section
