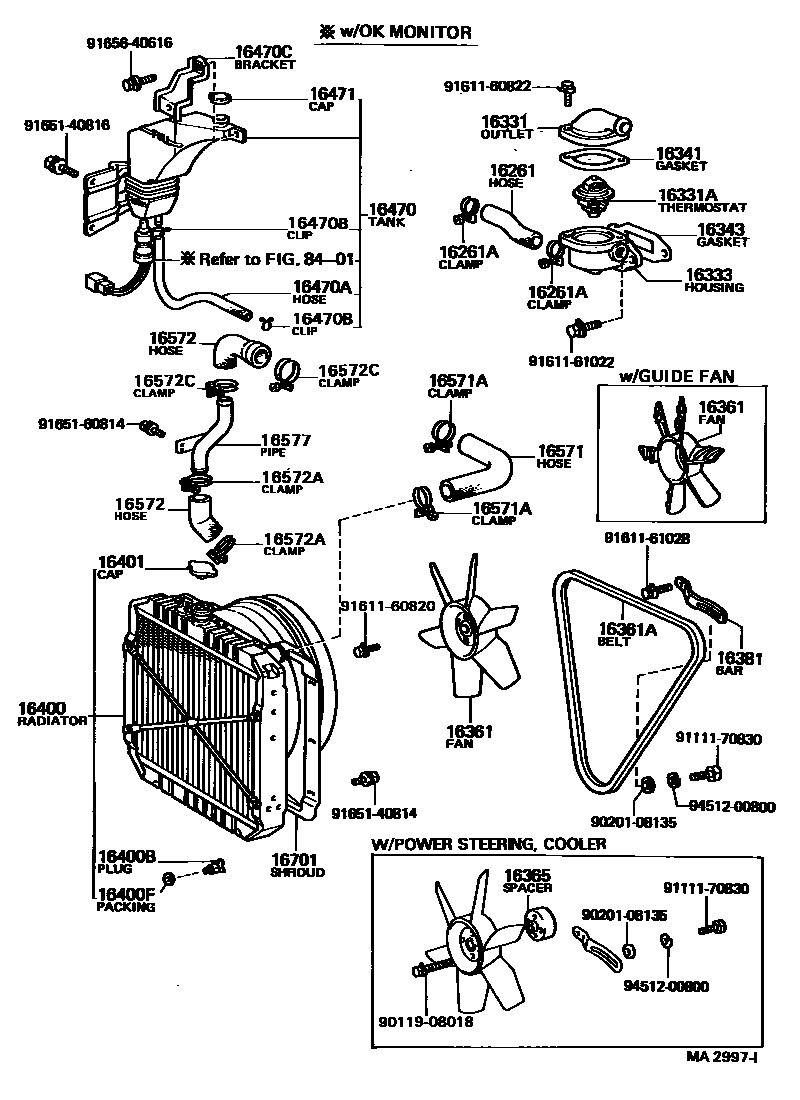

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16261HOSE, WATER BY-PASS

main16261-44010i5R..RU2#,3#197708-198408

main16261-48010i2J..JU20197708-198008

main90910-06014iH..HU30197708-198008

main99553-40090i2H..HU26,40,50198204-198304

sub99555-40090

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main96111-10330i2H..HU26,40,50198204-198304

main96112-10240i5R..RU20,30197708-198408

main96112-10250i5R..RU20,30198011-198102

main96112-10270iH..HU30197708-198008

16331OUTLET, WATER

main16331-44100i5R..RU20,30197708-198204

main16331-44120i5R..RU22,32198204-198408

main16331-46010i2J..JU20197708-198008

main16331-56010iH..HU30197708-198008

main16331-68010i2H..HU26,40,50198204-198304

sub16331-68011

main16331-78010i1W..WU26,40,50198304-198408

16331ATHERMOSTAT

main90916-03026iH..HU30197708-198008

main90916-03026i2H..HU26,40,50198204-198304

main90916-03034i5R..RU2#,3#197708-198210

*WAX 82-95,*(F)

main90916-03036i2J..JU20197904-198210

COLD SPEC,*WAX 88-100,*(F)

sub90916-03040

main90916-03037i5R..RU2#,3#197708-198210

*WAX 82-95,KUZEH

sub90916-03083

main90916-03040i5R..RU2#,3#197811-198210

COLD SPEC,*WAX 88-100,KUZEH

sub90916-03078

main90916-03050i2H..HU26,40,50198204-198209

COLD SPEC,*WAX 88-100

main90916-03050iH..HU30197904-198008

COLD SPEC,*WAX 88-100,KUZEH

main90916-03054i5R..RU22,32198210-198408

sub90916-03083

main90916-03055i5R..RU22,32198210-198408

sub90916-03078

main90916-03059i2H..HU26,40,50198209-198304

sub90916-03080

main90916-03067i1W..WU26,40,50198304-198408

sub90916-03076

main90916-03068i1W..WU26,40,50198304-198408

16333HOUSING, WATER OUTLET

main16303-78010i1W..WU26,40,50198304-198408

subS1630-11120

main16333-44012i5R..RU2#,3#197708-198408

main16333-47011iH..HU30197708-198003

sub16333-47012

main16333-47012iH..HU30198003-198008

main16333-48011i2J..JU20197708-198008

main16333-68010i2H..HU26,40,50198204-198304

16341GASKET, WATER OUTLET

main16341-38010i5R..RU20,30197809-198005

main16341-38011i5R..RU22,32198205-198408

main16341-41010i5R..RU2#,3#198005-198205

sub16341-38021

main16341-46010i2J..JU20197708-198008

sub16341-46011

main16341-49010i5R..RU20,30197708-197809

sub16341-38010

main16341-51010iH..HU30197708-198008

sub16341-51011

main16341-56010iH..HU30197802-197811

sub16341-51010

main16341-68010i2H..HU26,40,50198204-198304

sub16341-68020

16343GASKET, WATER OUTLET HOUSING

main16343-44010i5R..RU2#,3#197708-198408

main16343-46010i2J..JU20197708-198008

sub16343-46011

main16343-47010iH..HU30197708-198008

main16343-68010i2H..HU26,40,50198204-198304

sub16343-68020

16361FAN

main16361-31030i5R..RU2#,3#197708-198408

5 BLADES,OD=340

sub16361-31031

main16361-41090i2H..HU26,40,50198204-198304

main16361-47010iH..HU30197708-198008

6 BLADES,OD=410

main16361-48030i2J..JU20197708-198008

6 BLADES,OD=360

main16361-56030i2J..JU20197708-198008

W/COOLER,6 BLADES,OD=380

main16361-56040iH..HU30197708-197809

W/COOLER,6 BLADES,OD=410

main16361-78010i1W..WU26,40,50198304-198408

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02030iH..HU30197708-198008

main90916-02073i2J..JU20197708-198008

main90916-02131i1W..WU26,40,50198304-198408

sub90038-32013

main99322-00910i5R..RU20,30197809-198204

12V 30A ALTERNATOR

sub99332-00910

main99322-00930i5R..RU2#,3#197809-198408

12V 40A ALTERNATOR

main99343-01065i2H..HU26,40,50198204-198304

sub99343-11065

main99522-10911i5R..RU20,30197708-197809

12V 30A ALTERNATOR

main99522-10934i5R..RU20,30197708-197809

12V 40A ALTERNATOR

sub99322-00930

16365SPACER, FAN

main16365-24010i5R..RU2#,3#197708-198408

main16365-47010iH..HU30197708-197809

W/COOLER

main16365-48010iH..HU30197708-198008

W/COOLER

main16365-48010iH..HU30197708-198008

W/PS

16381BAR, FAN BELT ADJUSTING

main16381-44011i5R..RU2#,3#197708-198408

12V 40A ALTERNATOR

main16381-44022i5R..RU20,30197708-198204

12V 30A ALTERNATOR

main16381-47012iH..HU30197708-198008

main16381-48011i2J..JU20197708-198008

main16381-68010i2H..HU26,40,50198204-198304

main16381-78010i1W..WU26,40,50198304-198408

16400RADIATOR ASSY

main16400-44150i5R..RU20,30197708-197801

main16400-44151i5R..RU2#,3#197801-198408

sub16400-44152

main16400-47041iH..HU30197708-197801

sub16400-47043

main16400-47042iH..HU30197801-198008

sub16400-47043

main16400-48061i2J..JU20197708-197801

sub16400-48063

main16400-48062i2J..JU20197801-198008

sub16400-48063

main16400-68050i2H..HU26,40,50198204-198304

main16400-78010i1W..WU26,40,50198404-198408

main16410-78010i1W..WU26,40,50198304-198404

sub16400-78010

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i5R..RU2#,3#197708-198408

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200iH,2H..HU26,30,40,50197708-198408

16401CAP SUB-ASSY, RADIATOR

main16401-41020iH..HU30197708-197810

sub16401-41021

main16401-41021i5R..RU2#,3#197810-198408

16470TANK ASSY, RADIATOR RESERVE

main16470-48040iH..HU30197708-198008

W/O OK MONITOR

main16470-48050iH..HU30197708-198008

W/OK MONITOR

main16470-56050i5R..RU20,30197708-197804

W/O OK MONITOR

sub16470-56070

main16470-56060i5R..RU20,30197708-197804

W/OK MONITOR

sub16470-56080

main16470-56070i5R..RU20,30197804-198008

W/O OK MONITOR

sub16470-56071

main16470-56071i5R..RU2#,3#198008-198408

W/O OK MONITOR

main16470-56080i5R..RU20,30197804-198008

W/OK MONITOR

sub16470-56081

main16470-56081i5R..RU2#,3#198008-198408

W/OK MONITOR

sub16470-56100

main16470-56090i1W..WU26,40,50198304-198408

W/O OK MONITOR

main16470-56100i1W..WU26,40,50198304-198408

W/OK MONITOR

main16470-68010i2H..HU26,40,50198204-198304

W/O OK MONITOR

main16470-68020i2H..HU26,40,50198204-198304

W/OK MONITOR

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12005i5R..RU20,30197708-198008

sub90445-12897

main90445-12067i2H..HU26,40,50198204-198304

main90445-12521i1W..WU26,40,50198304-198408

main90445-12897i5R..RU2#,3#198008-198408

L=550

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i5R..RU2#,3#197708-198408

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-48020i2J..JU20197708-198008

main16611-48030iH..HU30197708-198008

main16611-56020i5R..RU2#,3#197708-198408

main16611-56030i1W..WU26,40,50198304-198408

main16611-68010i2H..HU26,40,50198204-198304

16471CAP SUB-ASSY, RESERVE TANK

main16405-68010i2H..HU26,40,50198204-198304

main16471-34030iH..HU30197708-198408

16571HOSE, RADIATOR, INLET

main16571-44050i5R..RU2#,3#197708-198408

main16571-47020iH..HU30197708-198008

main16571-48010i2J..JU20197708-198008

main16571-68040i2H..HU26,40,50198204-198304

main16571-78010i1W..WU26,40,50198304-198408

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-48056i2J..JU20197708-197811

ID=48

sub96111-10480

main90460-50016i1W..WU26,40,50198304-198408

main90467-37001i5R..RU20,30197903-198009

OUTLET SIDE,ID=37

sub90467-37003

main90467-37001i5R..RU2#,3#198009-198408

ID=37

sub90467-37003

main96111-10430i5R..RU20,30197708-197903

ID=43

main96111-10440i5R..RU20,30197903-198009

RADIATOR SIDE,ID=44

main96111-10460i2J..JU20197811-198008

ID=46

main96111-10500iH..HU30197708-198304

ID=50

16572HOSE, RADIATOR, OUTLET

main16571-44060i5R..RU2#,3#197708-198408

PUMP SIDE

main16572-47010iH..HU30197708-198008

PUMP SIDE

main16572-48020i2J..JU20197708-198008

main16572-68040i2H..HU26,40,50198204-198304

main16572-78010i1W..WU26,40,50198304-198408

sub16572-78011

main16573-47010iH..HU30197708-198008

RADIATOR SIDE

main90916-01150i5R..RU2#,3#197708-198408

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-48056i2J..JU20197708-197811

ID=48

sub96111-10480

main90460-55021i2J..JU20197708-198008

ID=55

main96111-10460i5R..RU2#,3#197708-198408

ID=46

main96111-10500iH..HU30197708-198304

RADIATOR SIDE

main96111-10510i1W..WU26,40,50198304-198408

RADIATOR SIDE

main96111-10560i2H..HU26,40,50197708-198408

WATER PUMP SIDE

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10460i5R..RU2#,3#197708-198408

ID=46

main96111-10500iH..HU30197708-198008

ID=50

main96111-10560iH..HU30197708-198008

PIPE SIDE

16577PIPE, RADIATOR, NO.7

main16507-47020iH..HU30197708-198008

main16577-44090i5R..RU2#,3#197708-198408

16701SHROUD SUB-ASSY, FAN

main16701-44100i5R..RU2#,3#197708-198408

main16701-47010iH..HU30197708-198008

main16701-47020iH..HU30197708-198008

W/COOLER

main16701-48030i2J..JU20197708-198008

main16701-48040i2J..JU20197708-198008

W/COOLER

main16701-56190i1W..WU26,40,50198304-198408

main16711-68020i2H..HU26,40,50198204-198304

8401

9011908018

main90119-08018

9020108135

main90201-08135

9111170830

main91111-70830

9161160820

main91611-60820

9161160822

main91611-60822

9161161022

main91611-61022

9161161028

main91611-61028

9165140814

main91651-40814

9165140816

main91651-40816

9165160814

main91651-60814

9165640616

main91656-40616

9451200800

main94512-00800

40 parts on this diagram · 5 diagrams in section
