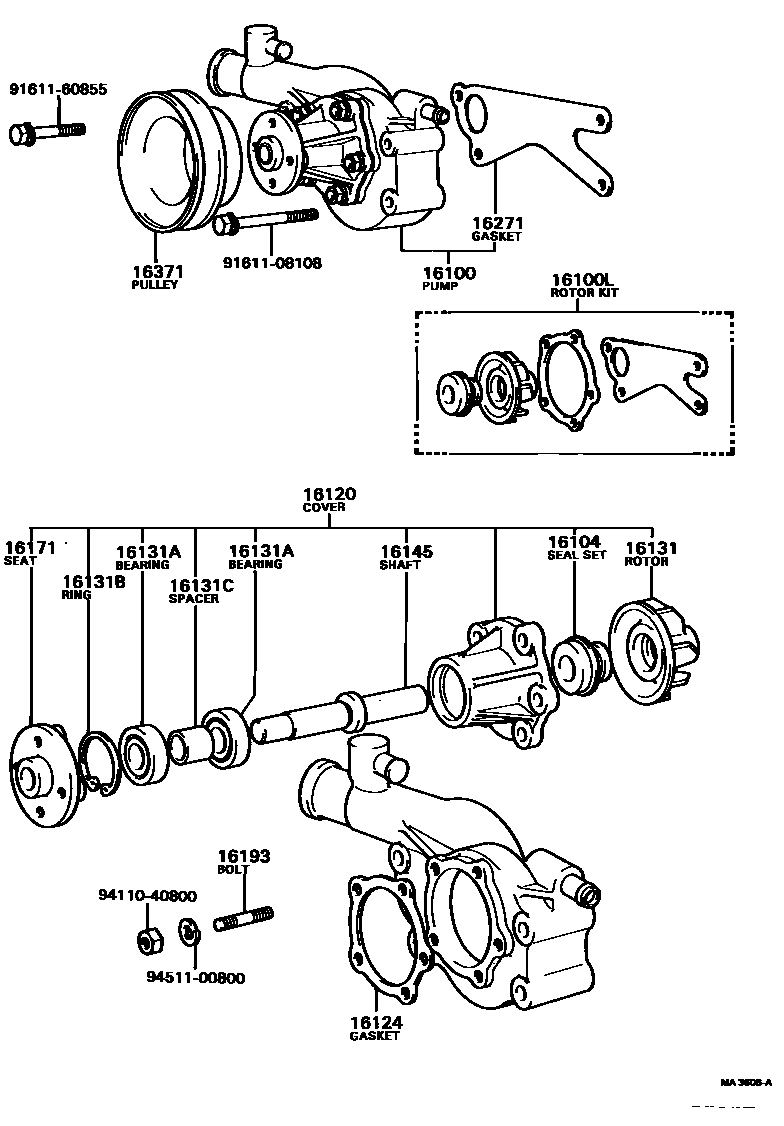

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-49207i2J..JU20197708-197904

sub16100-49208

main16100-49208i2J..JU20197904-198008

main16100-49415i5R..RU2#,3#197708-198408

sub16100-49416

main16100-49525iH..HU30197708-197904

sub16100-49526

main16100-49526iH..HU30197904-198008

main16100-69035i2H..HU26,40,50198204-198304

sub16100-69036

main16100-78010i1W..WU26,40,50198304-198408

sub16100-78011

16100LROTOR KIT, WATER PUMP

main04162-44020i5R..RU2#,3#197708-198408

sub04162-44021

main04162-47011iH..HU30197708-197904

sub04162-47012

main04162-47012iH..HU30197904-198008

16104SEAL SET, WATER PUMP

main16104-41110i5R..RU20,30197708-198102

sub16104-41111

main16104-41111i2H..HU26,40,50198102-198408

main16104-52010iH..HU30197708-197904

sub16104-52012

main16104-52011iH..HU30197904-198008

sub16104-52012

main16104-78010i1W..WU26,40,50198304-198408

sub16104-78011

16120COVER ASSY, WATER PUMP

main16120-47012iH..HU30197708-197904

sub16120-47013

main16120-47013iH..HU30197904-198008

main16120-69015i2H..HU26,40,50198204-198304

16124GASKET, WATER PUMP COVER

main16124-48010i2J..JU20197708-198008

main16129-47020iH..HU30197708-198008

main16129-68010i2H..HU26,40,50198204-198304

sub16129-68011

16131ROTOR, WATER PUMP

main16131-44070i5R..RU2#,3#197708-198408

main16131-47020iH..HU30197708-198008

main16131-48013i2J..JU20197708-198008

main16131-68010i2H..HU26,40,50198204-198304

main16131-78010i1W..WU26,40,50198304-198408

16131ABEARING, WATER PUMP

main16140-47024iH..HU30197708-198008

main90369-30028i5R..RU20,30197708-198008

WPB16112-2RS

main90369-30050i1W..WU26,40,50198304-198408

main90369-30063i5R..RU2#,3#197805-198408

WPB16105BRS

main90369-35016i2H..HU26,40,50198204-198304

sub90029-36842

16131BRING, RETAINER(FOR WATER PUMP BEARING)

main16181-47020iH..HU30197708-198008

16131CSPACER(FOR WATER PUMP ROTOR)

main16196-47020iH..HU30197708-197904

main16196-47021iH..HU30197904-198008

16145SHAFT, WATER PUMP

main16145-47020iH..HU30197708-197904

main16145-47021iH..HU30197904-198008

16171SEAT, WATER PUMP PULLEY

main16171-24031i5R..RU2#,3#197708-198408

main16171-41170i2H..HU26,40,50198204-198304

main16171-47010i2J..JU20197708-198008

main16171-47011iH..HU30197708-198008

main16171-78010i1W..WU26,40,50198304-198408

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-47020iH..HU30197708-198304

16271GASKET, WATER PUMP

main16271-44010i5R..RU20,30197708-198101

sub16271-44020

main16271-44020i5R..RU2#,3#198101-198408

sub16271-44021

main16271-47020iH..HU30197708-197901

sub16271-47021

main16271-47021iH..HU30197901-198008

main16271-48010i2J..JU20197708-198008

sub16271-48011

main16271-68010i2H..HU26,40,50198204-198304

sub16271-68020

16371PULLEY, FAN

main16173-78010i1W..WU26,40,50198304-198408

subS1617-32110

main16371-44010i5R..RU2#,3#197708-198408

main16371-46011i2J..JU20197708-198008

main16371-47011iH..HU30197708-198008

main16371-68010i2H..HU26,40,50198204-198304

main88452-60010i2H..HU26,40,50198204-198304

W/COOLER

9161108108

main91611-08108

9161160855

main91611-60855

9411040800

main94110-40800

9451100800

main94511-00800
