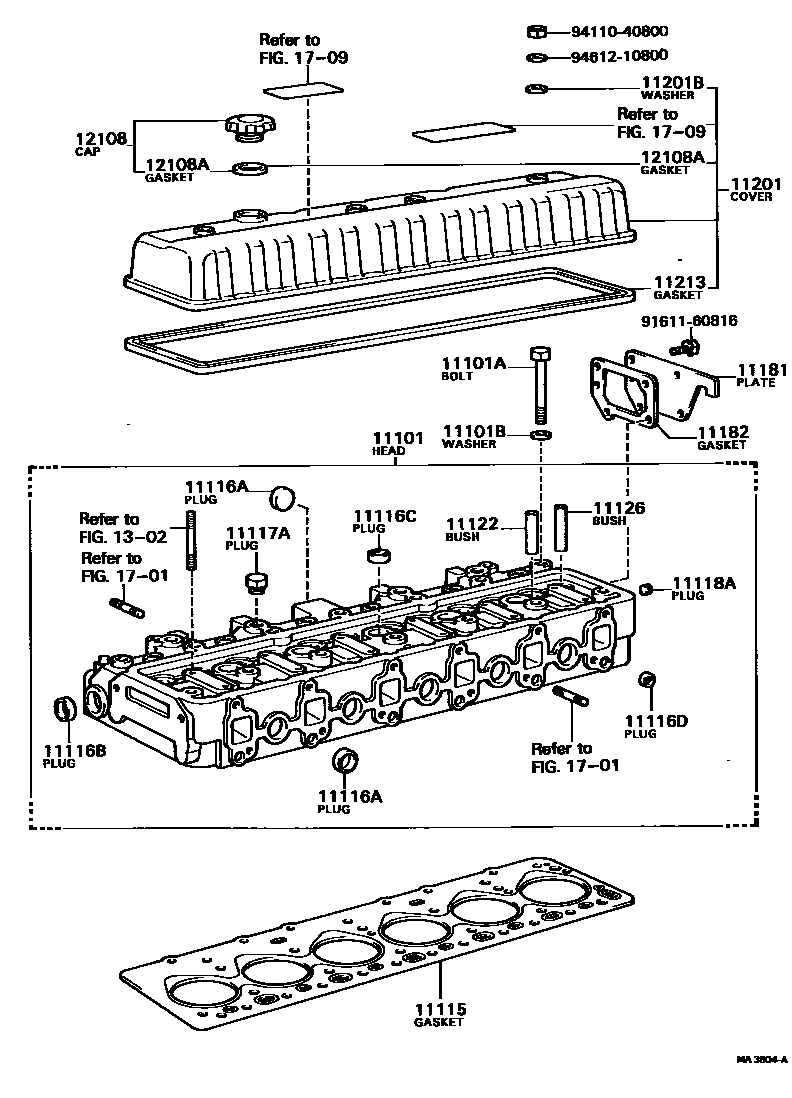

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-47015
LPG PACKAGE
sub11101-49217
sub11101-44046
sub11110-78030
11101ABOLT(FOR CYLINDER HEAD SET)
*13-1.5PX113-25
*12-1.25PX107-24
*12-1.25PX110-25
*12-1.25PX119-25
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
ID=13.5,OD=22.0
11116APLUG, TIGHT, NO.1
OD=14
OD=20
OD=25
OD=30
11116BPLUG, TIGHT, NO.2
OD=22
OD=25
11116CPLUG, TIGHT, NO.3
OD=21
OD=24
OD=30
11116DPLUG, TIGHT, NO.4
OD=10
OD=26
OD=50
11117APLUG, W/HEAD TAPER SCREW, NO.1
11118APLUG, STRAIGHT, NO.1
L=3.5,OD=6.7
11181PLATE, CYLINDER HEAD, REAR
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
12108AGASKET(FOR OIL FILLER CAP)
1302
1701
1709
9161160816
main91611-60816
9411040800
main94110-40800
9461210800
main94612-10800
25 parts on this diagram · 5 diagrams in section
