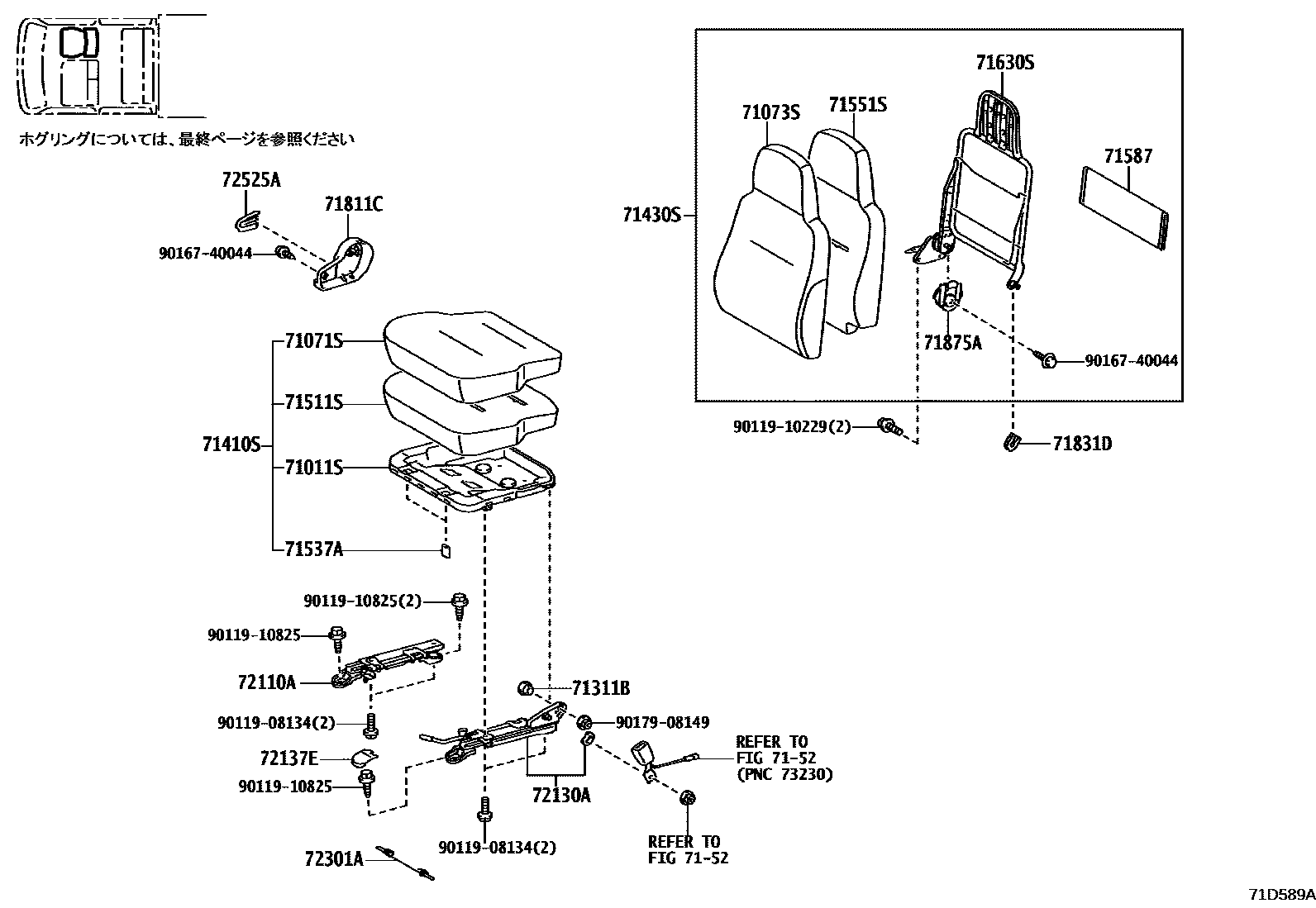

SEAT & SEAT TRACK

0001 1������ 0002 1������,��(���������) 0003 1������� 0004 1���������������� 0005 1����������������(������) 0006 1����������������(�������) 0007 1����� 0008 1�����,��(�������������) 0009 1�������

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71610-37051iXZU685,695..DCB;XZC60#,630,645,655,XZU60#,630,64#,65#¥10,000202103

main71610-37061iXZC675,XZU675,685,695..SCB¥11,700202103

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-37C70-C0iXZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

BLACK,TRIM1#

main71071-37C80-B0iXZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3)202103

GRAY,TRIM1#

main71071-37C80-B0iXZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3)202103

main71071-37C80-B0iXZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3)202103

main71071-37C80-B0iXZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3)202103

main71071-37C80-B0iXZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3)202103

main71071-37C80-B0iXZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3)202103

main71071-37C80-B0iXZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3)202103

main71071-37C80-B0iXZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3)202103

main71071-37C80-B0iXZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3)202103

main71071-37C80-B0iXZC605,645,655,XZU600,605,640,645,650,655..SCB..(T2,T3,T4,T5)..6FC..(CBU,IV3)202103

main71071-37C80-B0iXZU600..6FC..IV6;XZU602,642,652..T3;XZC605,645,655,XZU600,605,640,645,650,655..SCB..(DM6,T2,T3,T4,T5)..6F..(CBU,IV3,IV6)202103

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-37C40-C1iXZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

BLACK,TRIM1#

main71073-37C50-B2iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU605,630,642,675..DM5,DM6,DM7202103

main71073-37C50-B2iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU605,630,642,675..DM5,DM6,DM7202103

GRAY,TRIM1#

main71073-37C50-B2iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU605,630,642,675..DM5,DM6,DM7202103

main71073-37C50-B2iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU605,630,642,675..DM5,DM6,DM7202103

main71073-37C50-B2iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU605,630,642,675..DM5,DM6,DM7202103

main71073-37C50-B2iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU605,630,642,675..DM5,DM6,DM7202103

main71073-37C50-B2iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU605,630,642,675..DM5,DM6,DM7202103

main71073-37C50-B2iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU605,630,642,675..DM5,DM6,DM7202103

main71073-37C50-B2iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU605,630,642,675..DM5,DM6,DM7202103

main71073-37C50-B2iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU605,630,642,675..DM5,DM6,DM7202103

main71073-37C50-B2iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,675,XZU605,630,642,675..DM5,DM6,DM7202103

71311BBUSH (FOR FRONT SEAT HINGE PIN)

main90386-12053iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695¥110202103

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-37F10-C0iXZU685,695..T3..20T;XZC605,645,655,XZU60#,64#,65#..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

***,BLACK,TRIM1#

main71410-37F20-B0iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,XZU605,630,642..DM5,DM6,DM7202103

***,GRAY,TRIM1#

main71410-37F20-B0iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,XZU605,630,642..DM5,DM6,DM7202103

main71410-37F20-B0iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,XZU605,630,642..DM5,DM6,DM7202103

main71410-37F20-B0iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,XZU605,630,642..DM5,DM6,DM7202103

main71410-37F20-B0iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,XZU605,630,642..DM5,DM6,DM7202103

main71410-37F20-B0iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,XZU605,630,642..DM5,DM6,DM7202103

main71410-37F20-B0iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,XZU605,630,642..DM5,DM6,DM7202103

main71410-37F20-B0iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,XZU605,630,642..DM5,DM6,DM7202103

main71410-37F20-B0iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,XZU605,630,642..DM5,DM6,DM7202103

main71410-37F20-B0iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,XZU605,630,642..DM5,DM6,DM7202103

main71410-37F20-B0iXZU640,685..IV4;XZU600..CBU,IV4,IV7;XZU600..(DM3,DM5)..IV3;XZC600,630,XZU605,630,642..DM5,DM6,DM7202103

main71410-37F30-C0iXZC675,XZU675,685,695..SCB..(T3,T4)202103

***,BLACK,TRIM1#

main71410-37F40-B0iXZC675,XZU675..DM5202103

***,GRAY,TRIM1#

main71410-37F40-B0iXZC675,XZU675..DM5202103

main71410-37F40-B0iXZC675,XZU675..DM5202103

main71410-37F40-B0iXZC675,XZU675..DM5202103

main71410-37F40-B0iXZC675,XZU675..DM5202103

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-37E20-C1iXZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

***,BLACK,TRIM1#

main71430-37E30-B2iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

main71430-37E30-B2iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

main71430-37E30-B2iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

***,GRAY,TRIM1#

main71430-37E30-B2iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

main71430-37E30-B2iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

main71430-37E30-B2iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

main71430-37E30-B2iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

main71430-37E30-B2iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

main71430-37E30-B2iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

main71430-37E30-B2iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

main71430-37E30-B2iXZC605,645,655,XZU60#,64#,65#..SCB..(DM6,T2,T3,T4,T5)..(CBU,IV3,IV6)202103

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-37130iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695¥7,300202103

7152

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695¥60202103

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-37280iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695¥8,900202103

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-37021iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695¥400202103-202106

main71587-37022iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695¥400202107

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-37180iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695¥17,500202103

71811CCOVER, RECLINING ADJUSTER, RH

main71811-37022-B1iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

GRAY,TRIM1#

71831DCOVER, FRONT SEAT HINGE, RH

main71832-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695¥220202103

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-37010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695¥590202103

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-37020iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695¥6,200202103

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-25010iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695¥7,000202310

main72130-37020iXZU685,695..DCB;XZC60#,630,645,655,XZU60#,630,64#,65#¥10,300202103-202310

72137ECOVER, SEAT TRACK, NO.1

main72137-37010-B1iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

GRAY,TRIM1#

72301AWIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH

main72301-37020iXZC675,XZU675,685,695..SCB¥200202103

main72301-37030iXZU685,695..DCB;XZC60#,630,645,655,XZU60#,630,64#,65#¥370202103

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-37020-B1iXZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695202103

GRAY,TRIM1#

9011908134

main90119-08134¥80

9011910229

main90119-10229¥280

9011910825

main90119-10825¥100

9016740044

main90167-40044¥70

9017908149

main90179-08149¥160

25 parts on this diagram · 9 diagrams in section
