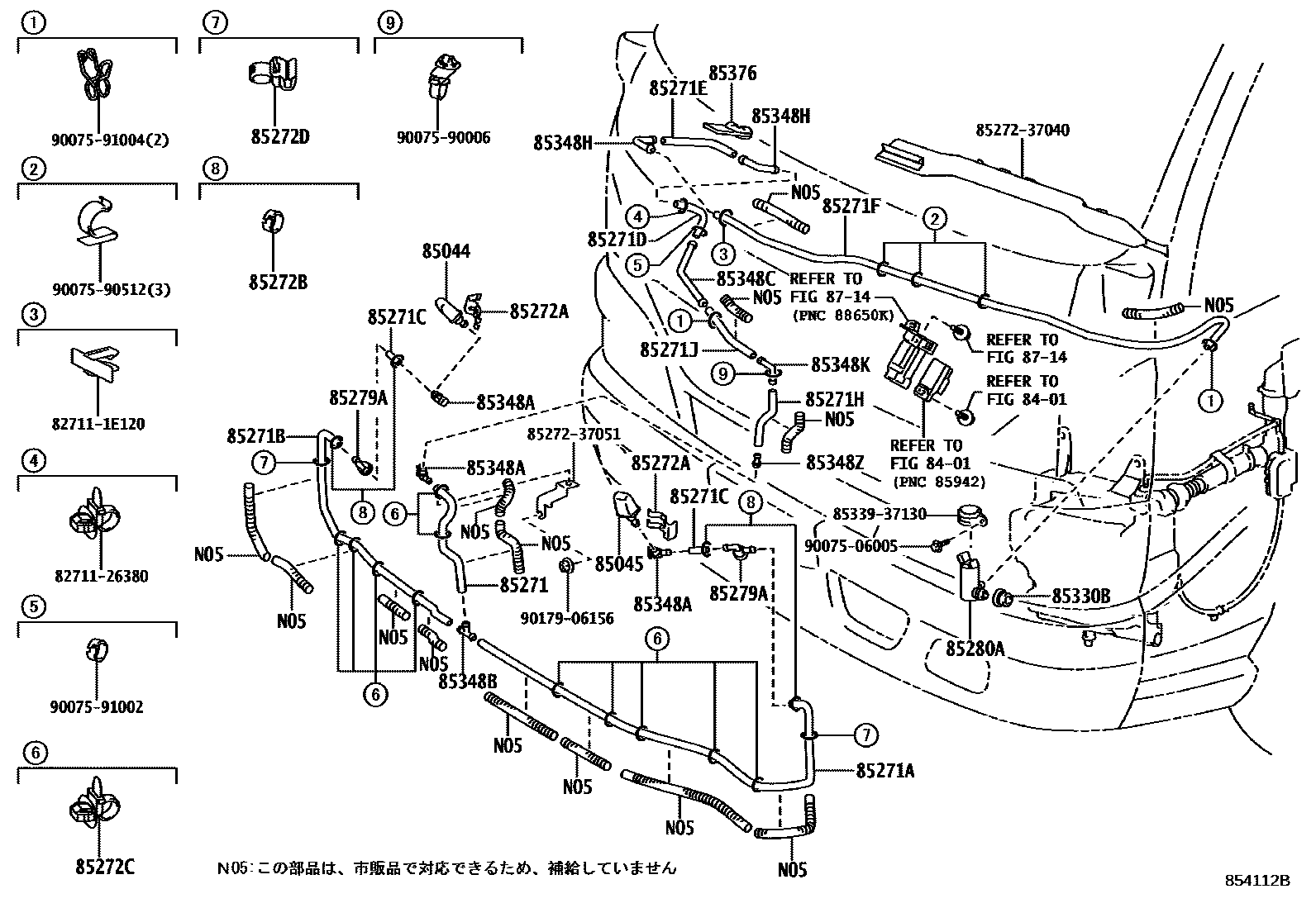

HEADLAMP CLEANER

0001 1 0002 1

8401

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-37051iXZC675,XZU675,685,695201905

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85044-37061iXZC675,XZU675,685,695201905

85271HOSE, HEADLAMP CLEANER, NO.1

main85277-37091iXZC675,XZU675,685,695201905

85271AHOSE, HEADLAMP CLEANER, NO.2

main85275-37091iXZC675,XZU675,685,695201905

85271BHOSE, HEADLAMP CLEANER, NO.3

main85276-37091iXZC675,XZU675,685,695201905

85271CHOSE, HEADLAMP CLEANER, NO.4

main90075-15053×2iXZC675,XZU675,685,695201905-202005

85271DHOSE, HEADLAMP CLEANER, NO.5

main85276-37080iXZC675,XZU675,685,695201905

85271EHOSE, HEADLAMP CLEANER, NO.6

main90075-15058iXZC675,XZU675,685,695201905

85271FHOSE, HEADLAMP CLEANER, NO.7

main85275-37120iXZC675,XZU675,685,695201905

85271HHOSE, HEADLAMP CLEANER, NO.8

main90075-15070iXZC675,XZU675,685,695201905

85271JHOSE, HEADLAMP CLEANER, NO.9

main90075-15070iXZC675,XZU675,685,695201905

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-60010×2iXZC675,XZU675,685,695201905

85272BCLAMP, HEADLAMP CLEANER, NO.2

main90075-91002×4iXZC675,XZU675,685,695201905

85272CCLAMP, HEADLAMP CLEANER, NO.3

mainS900722136×11iXZC675,XZU675,685,695201905

85272DCLAMP, HEADLAMP CLEANER, NO.4

main82711-48190×2iXZC675,XZU675,685,695202103

mainS900722152×2iXZC675,XZU675,685,695201905-202103

85279AJOINT, HEADLAMP CLEANER HOSE

main85279-77010×2iXZC675,XZU675,685,695201905

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-37010iXZC675,XZU675,685,695201905

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iXZC675,XZU675,685,695201905

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17009×3iXZC675,XZU675,685,695201905-202005

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main90075-17010iXZC675,XZU675,685,695201905

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main85278-37121iXZC675,XZU675,685,695201905

85348HJOINT, HEADLAMP CLEANER HOSE, NO.4

main90075-17013×2iXZC675,XZU675,685,695201905

85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1

main90075-17013iXZC675,XZU675,685,695201905

85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5

main90075-17012iXZC675,XZU675,685,695201905

85376PROTECTOR, HEADLAMP CLEANER HOSE, NO.1

main85277-50040iXZC675,XZU675,685,695201905

8714

827111E120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E120

8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26380

8527237040CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-37040

8527237051CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-37051

8533937130CAP SUB-ASSY, RESERVE TANK

main85339-37130

9007506005

main90075-06005

9007590006

main90075-90006

9007590512

main90075-90512

9007591002

main90075-91002

9007591004

main90075-91004

9017906156

main90179-06156

38 parts on this diagram · 2 diagrams in section
