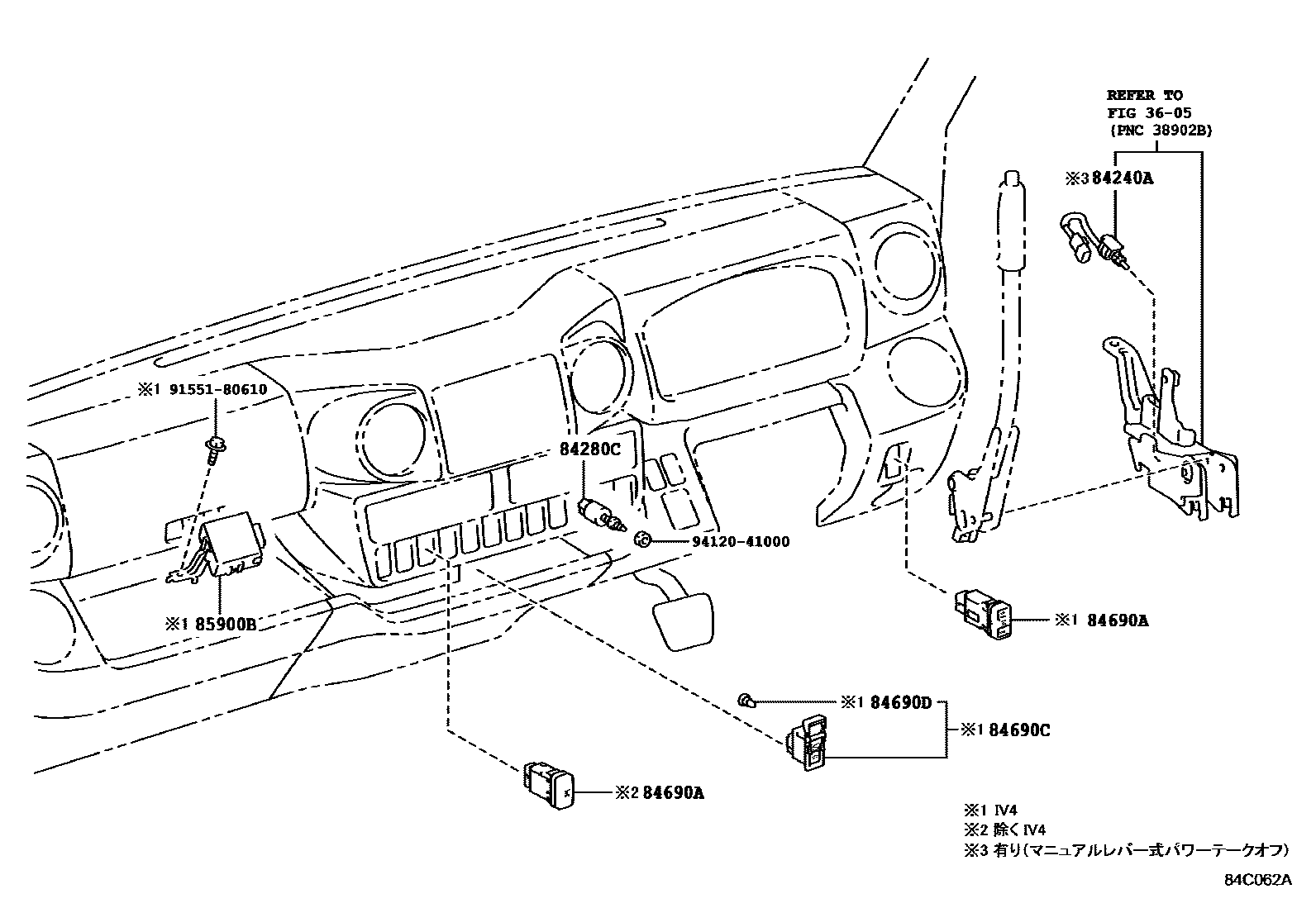

POWER TAKE-OFF CONTROL

0001 1 0002 1 0003 1 0005 1

3605POWER TAKE-OFF LEVER & LINK

→ Go to FIG 36-05

84240ASWITCH ASSY, POWER TAKE-OFF INDICATOR

main84240-37022iTRC600..DM5201107-201505

main84240-37050iXZU60#,640,650,685..MTM..IV6;XZC610,630,675,XZU600,610,620,630,675..(DM3,DM5,DM7)..5F201107-201705

main84240-37050iXZU60#,640,650,685..MTM..IV6;XZC610,630,675,XZU600,610,620,630,675..(DM3,DM5,DM7)..5F201107-201705

main84240-37050iXZU60#,640,650,685..MTM..IV6;XZC610,630,675,XZU600,610,620,630,675..(DM3,DM5,DM7)..5F201107-201705

main84240-37050iXZU640..IV6201107-201705

main84240-37050iXZU640..IV6201107-201705

main84240-37050iXZU675..T4..IV3201905

main84240-37050iXZU675..T4..IV3201705

main84240-37050iXZU600..6F..(CBU,IV6);XZU600..(DM3,DM5)..6F..IV3;XZU605,640,642,650,652,685..MTM..IV6;XZC600,630,675,XZU602,630,675..(DM5,DM7,T3)..MTM201905

main84240-37060iBZU600..CBU,IV3201107

84280CSWITCH ASSY, POWER TAKE-OFF CLUTCH

main84640-37080iXZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK,DCRVT)201705

main84640-37080iBZU600,TRC600,XZC610,630,XZU610,620,630..(DM5,DM6,DM7)..5F;XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK)201107

main84640-37080iBZU600,TRC600,XZC610,630,XZU610,620,630..(DM5,DM6,DM7)..5F;XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK)201107

main84640-37080iBZU600,TRC600,XZC610,630,XZU610,620,630..(DM5,DM6,DM7)..5F;XZC60#,645,655,675,XZU600,605,640,645,650,655,675,685,695..MTM..(DCRTH,DCRTJ,DCRTK)201107

84690ASWITCH ASSY, POWER TAKE-OFF INDICATOR

main84690-37040iXZU600..DCRVT;XZU640,650..SCB..MTM..(DCRTJ,DCRTK,DCRVT);XZC605,XZU605..(DCB,SCB)..5F..(DCRTJ,DCRTK)..(CBU,IV3);XZC600,645,655,XZU600,645,655..(T2,T3,T4,T5)..5F..(CB201705

main84690-37040iXZC610,630,XZU610,620..6FC;XZU600..6FC..(DCRTJ,DCRTK)..(IV5,IV6);BZU600,TRC600,XZU600..(DM5,DM6)..5F..(CBU,IV3,IV5)201107

main84690-37040iXZU600..5F..IV5;XZU600..6FC..(DCRTJ,DCRTK)..(IV5,IV6);XZC610,630,XZU610,620,642..6FC..(DCRTJ,DCRVT)201705

main84690-37040iXZU600..5F..IV5;XZU600..6FC..(DCRTJ,DCRTK)..(IV5,IV6);XZC610,630,XZU610,620,642..6FC..(DCRTJ,DCRVT)201705

main84690-37040iXZU600..5F..IV5;XZU600..6FC..(DCRTJ,DCRTK)..(IV5,IV6);XZC610,630,XZU610,620,642..6FC..(DCRTJ,DCRVT)201705

main84690-37040iXZU600..5F..IV5;XZU600..6FC..(DCRTJ,DCRTK)..(IV5,IV6);XZC610,630,XZU610,620,642..6FC..(DCRTJ,DCRVT)201705

main84690-37040iXZU600..5F..IV5;XZU600..6FC..(DCRTJ,DCRTK)..(IV5,IV6);XZC610,630,XZU610,620,642..6FC..(DCRTJ,DCRVT)201705

main84690-37040iXZU600..5F..IV5;XZU600..6FC..(DCRTJ,DCRTK)..(IV5,IV6);XZC610,630,XZU610,620,642..6FC..(DCRTJ,DCRVT)201705

main84690-37050iXZU600,640,685..IV4201107-201705

main84690-37070iXZU650..T3..6F..DCRWD..IV3;XZU605,655,685..DCB..MTM..IV3201905

main84690-37070iXZU600..DM5..6FC;XZU605,642..DM6,DM7;XZU600,652..6FC..IV6;XZC600,XZU602,642..6FC201905

main84690-37070iXZU600..DM5..6FC;XZU605,642..DM6,DM7;XZU600,652..6FC..IV6;XZC600,XZU602,642..6FC201905

main84690-37070iXZU600..DM5..6FC;XZU605,642..DM6,DM7;XZU600,652..6FC..IV6;XZC600,XZU602,642..6FC201905

main84690-37070iXZU600..DM5..6FC;XZU605,642..DM6,DM7;XZU600,652..6FC..IV6;XZC600,XZU602,642..6FC201905

main84690-37070iXZU600..DM5..6FC;XZU605,642..DM6,DM7;XZU600,652..6FC..IV6;XZC600,XZU602,642..6FC201905

84690CSWITCH ASSY, POWER TAKE-OFF INDICATOR, NO.2

main84690-37030iXZU600,640,685..DCRTK..IV4201107-201705

main84690-37081iXZU600,640,685..IV4201905

84690DBULB, POWER TAKE OFF INDICATOR, NO.2

main84999-10100iXZU600,640,685..DCRTK..IV4201107-201705

85900BRELAY ASSY, CONTROL UNIT

main85900-37180iXZU600,640,685..IV4201107-201705

main85900-37190iXZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3201107-201705

main85900-37190iXZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3201107-201705

main85900-37190iXZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3201107-201705

main85900-37190iXZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3201107-201705

main85900-37190iXZU650..T3..5F..20T..IV3;XZU605,655..DCB..5F..DCRTJ..IV3201107-201705

main85900-37250iXZU600..DM5..6F..IV3201705

main85900-37250iXZU600..DM5..6F..IV3201705

main85900-37250iXZU640,645,650..6F..(30T,35T,40T)..(IV3,IV6);XZU600,605..(T3,T5)..6F..(20T,40T)..(IV3,IV6)201905

main85900-37250iXZU640,645,650..6F..(30T,35T,40T)..(IV3,IV6);XZU600,605..(T3,T5)..6F..(20T,40T)..(IV3,IV6)201905

main85900-37250iXZU640,645,650..6F..(30T,35T,40T)..(IV3,IV6);XZU600,605..(T3,T5)..6F..(20T,40T)..(IV3,IV6)201705

main85900-37250iXZU600..5F..IV5201705

main85900-37250iXZU600..5F..IV5201705

9155180610

main91551-80610

9412041000

main94120-41000

9 parts on this diagram · 4 diagrams in section
