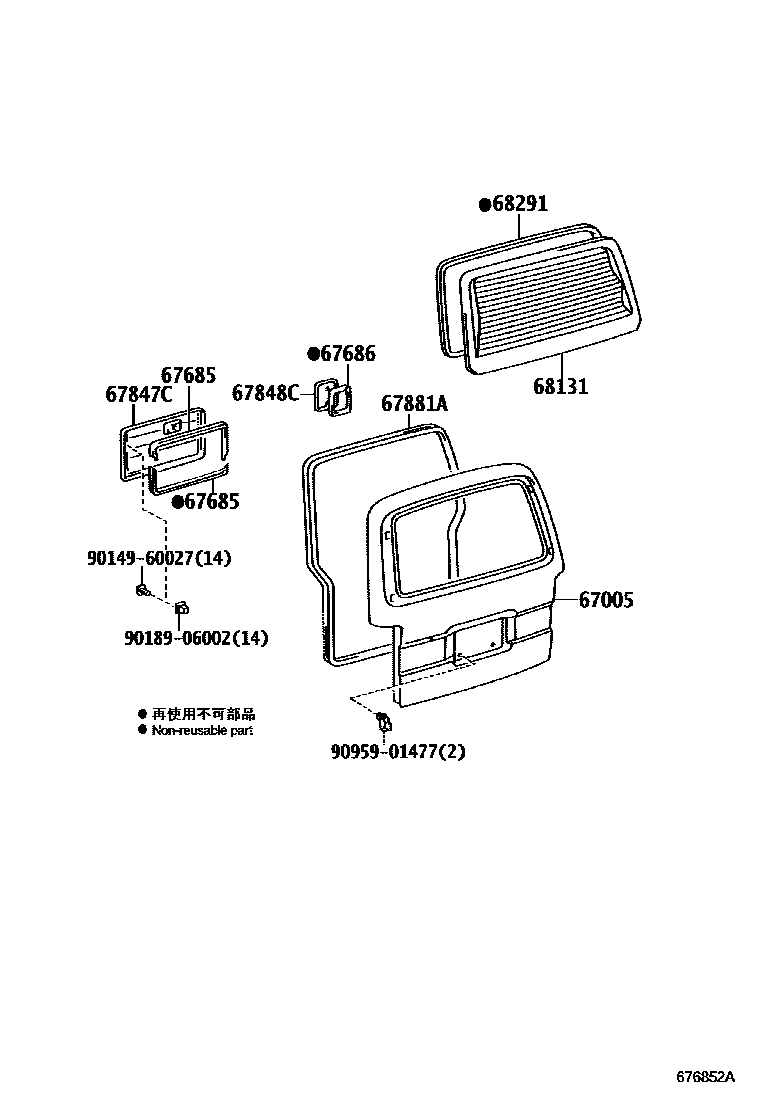

BACK DOOR PANEL & GLASS

0001 1������� 0002 1����������,������� 0003 1����������,������

67005PANEL SUB-ASSY, BACK DOOR

main67005-37080supersedes 67005-95N89iXZC605..03S201107-201705

main67005-37090supersedes 67005-95N89iXZC605..03S201705

main67005-95N65supersedes 67005-95N89iXZC605..VAN201107-201705

67685PACKING, BACK DOOR SERVICE HOLE, NO.1

main67685-95J01×2iXZC605..VAN201107-201705

67686PACKING, BACK DOOR SERVICE HOLE, NO.2

main67526-95A00×2iXZC605..VAN201107-201705

67847COVER, BACK DOOR SERVICE HOLE, RH

main67847-95J07iXZC605..VAN201107-201705

67847CCOVER, BACK DOOR SERVICE HOLE, NO.1

main67847-95J05iXZC605..03S201705

67848COVER, BACK DOOR SERVICE HOLE, LH

main67848-95J01iXZC605..VAN201107-201705

67848CCOVER, BACK DOOR SERVICE HOLE, NO.2

main67848-95J00×2iXZC605..VAN201107-201705

67881AWEATHERSTRIP, BACK DOOR

main67881-26010supersedes 67881-95J16iXZC605..VAN201107-201705

main67881-95J15supersedes 67881-95J16iXZC605..03S201107-201705

68131GLASS, BACK DOOR

main68131-37020supersedes 68131-26180iXZC605..VAN201107-201705

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-95J05

main68291-95J07

9014960027

main90149-60027

9018906002

main90189-06002

9095901477

main90959-01477

13 parts on this diagram · 3 diagrams in section
