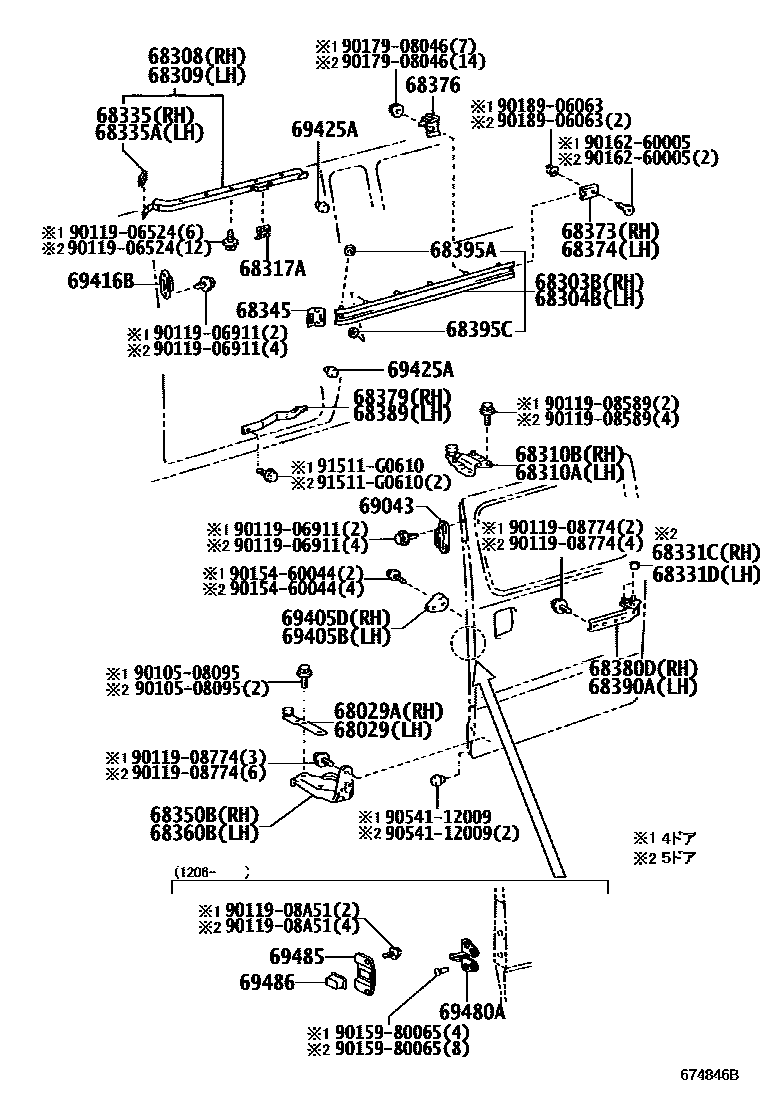

SLIDE ROLLER & RAIL
68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER
68029ABASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68310AROLLER ASSY, SLIDE DOOR, UPPER, LH
68310BROLLER ASSY, SLIDE DOOR, UPPER RH
68317ASTOPPER, SLIDE DOOR UPPER RAIL
68331CROLLER, SLIDE DOOR, RH
68331DROLLER, SLIDE DOOR, LH
68335PAD, SLIDE DOOR UPPER RAIL
68335APAD, SLIDE DOOR UPPER RAIL, LH
68345COVER, SLIDE DOOR CENTER RAIL
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68373MOULDING, SLIDE RAIL END, RH
68374MOULDING, SLIDE RAIL END, LH
68376BRACKET, SLIDE DOOR CENTER RAIL
68379SPRING, SLIDE DOOR CATCH, RH
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
68389SPRING, SLIDE DOOR CATCH, LH
68390AHINGE ASSY, SLIDE DOOR, CENTER LH
68395APACKING, SLIDE DOOR CENTER RAIL
68395CPACKING, SLIDE DOOR CENTER RAIL
69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
69405BSTOP SUB-ASSY, SLIDE DOOR OPEN
69405DSTOP SUB-ASSY, SLIDE DOOR OPEN, RH
69416BSTOPPER, SLIDE DOOR DOWN MALE
69425ACUSHION, SLIDE DOOR STOP
69480AHOOK ASSY, SLIDE DOOR FRONT LOCK
69485BRACKET, SLIDE DOOR FRONT LOCK STRIKER
69486COVER, SLIDE DOOR FRONT LOCK STRIKER
9010508095
9011906524
9011906911
9011908589
9011908774
9011908A51
9015460044
9015980065
9016260005
9017908046
9018906063
9054112009
91511G0610
46 parts on this diagram · 1 diagram in section
