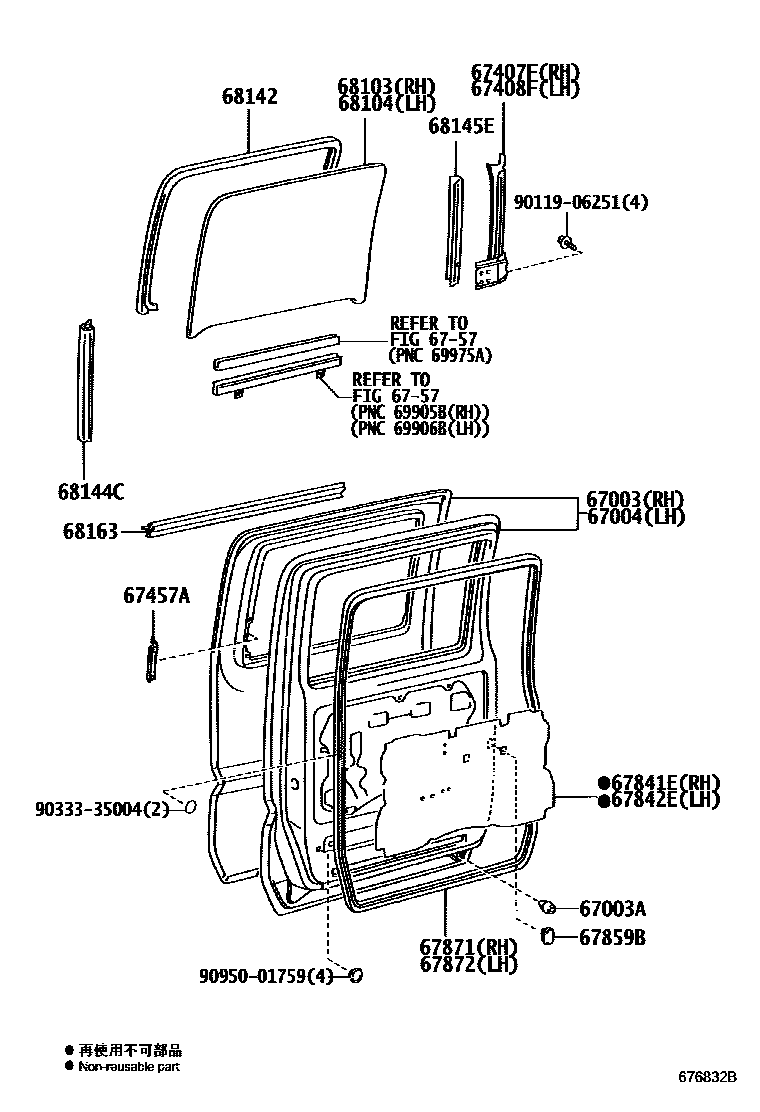

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������ 0003 1������� 0004 1������

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-37040iXZU60#,640,655,685,695..DCB201107-201705

main67003-37041iXZU600,605,640,655,685,695..DCB201911

67003APLUG, HOLE(FOR REAR DOOR PANEL)

main90541-09031×2iXZU60#,640,655,685,695..DCB201107-201705

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-37060iXZU600,605,640,655,685,695..DCB201905-201910

main67004-37061iXZU600,605,640,655,685,695..DCB201911

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-37010iXZU600,605,640,655,685,695..DCB..(DCRTH,DCRTJ,DCRTK)201705

main67407-37011iXZU600,605,640,655,685,695..DCB202004

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-37010iXZU600,605,640,655,685,695..DCB201905-202003

main67408-37011iXZU600,605,640,655,685,695..DCB202004

67457ABRACKET, REAR DOOR REAR GUIDE, UPPER

main67457-37010×4iXZU600,605,640,655,685,695..DCB201905

6757

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-37040iTRC600..DCB201107-201605

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-37020iTRC600..DCB201107-201605

67859BCOVER, REAR DOOR LOWER HOLE

main67859-37010×2iTRC600..DCB201107-201605

67871WEATHERSTRIP, REAR DOOR, RH

main67871-37011iTRC600..DCB201107-201605

67872WEATHERSTRIP, REAR DOOR, LH

main67871-37011iTRC600..DCB201107-201605

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-37040iTRC600..DCB201107-201605

68104GLASS SUB-ASSY, REAR DOOR, LH

main68113-37040iTRC600..DCB201107-201605

68142RUN, REAR DOOR GLASS

main68142-37012×2iTRC600..DCB201107-201605

68144CRUN, REAR DOOR GLASS, LOWER FRONT

main68144-37011×2iTRC600..DCB201107-201605

68145ERUN, REAR DOOR GLASS, LOWER REAR

main68145-37011×2iTRC600..DCB201107-201605

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68163-37011×2iTRC600..DCB201107-201605

9011906251

main90119-06251

9033335004

main90333-35004

9095001759

main90950-01759

21 parts on this diagram · 4 diagrams in section
